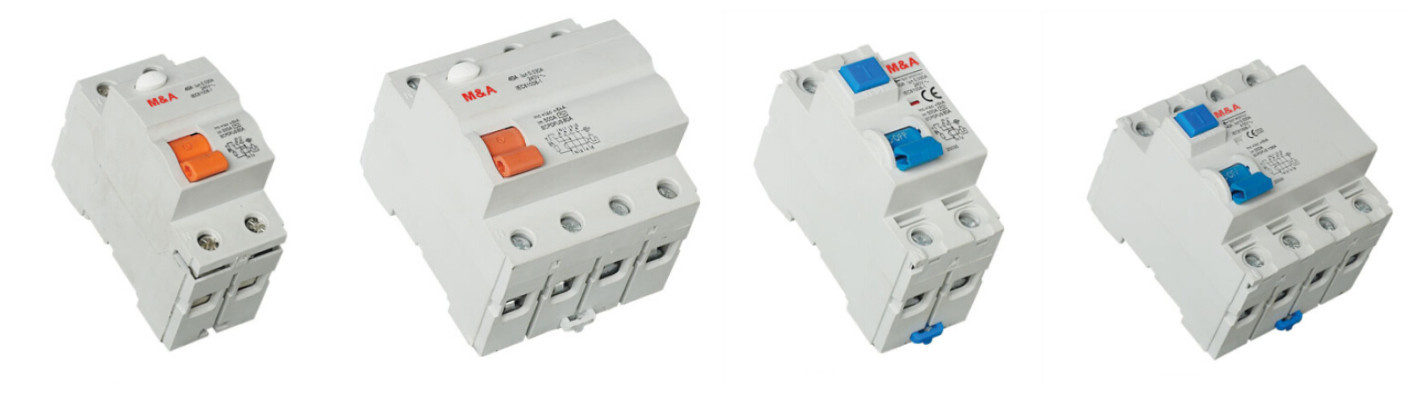

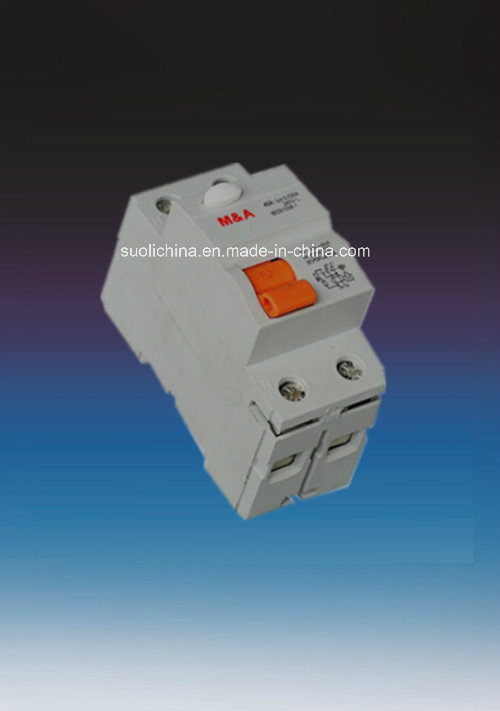

Construction and Feature Construction and Feature
Elegant appearance;cover and handle in arc shape make comfortable operation.
Contact position indicating window.
Transparent cover designed to carry label.
In case of overload to protected circuit,RCCB handle trips and stays at central
position, which enables a quick solution to the faulty line.The handle cannot
stay in such position when operated manually.
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and
exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.Technical Data
Model:electro-magnetic type
Residual current characteristics:A,AC
Pole NO.:2,4
Rated making and breaking capacity:630A
Rated current(A):25,40,63,80,100
Rated voltage:240/415V AC
Rated frequency:50/60Hz
Rated residual operating current In(A):0.03,0.1,0.3,0.5
Rated residual non operating current Ino:0.5In
Rated conditional short-circuit current Inc:10kA
Rated conditional residual short-circuit Current Ic:10kA
Tripping duration:instantaneous tripping ≤0.1s
Residual tripping current range:0.5In~In

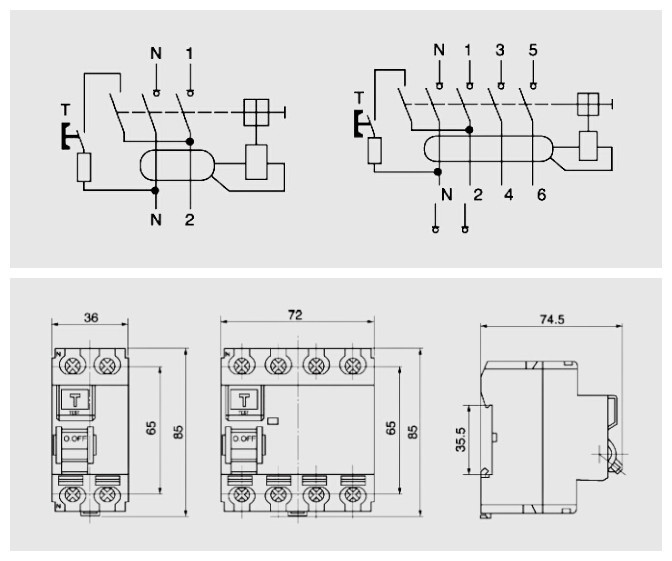

Terminal Connection Height: 19mm
Electro-mechanical endurance: 4000 cycles
Connection capacity: Rigid conductor 25mm2
Connection terminal:
Screw terminal
Pillar terminal with clamp
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.
Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

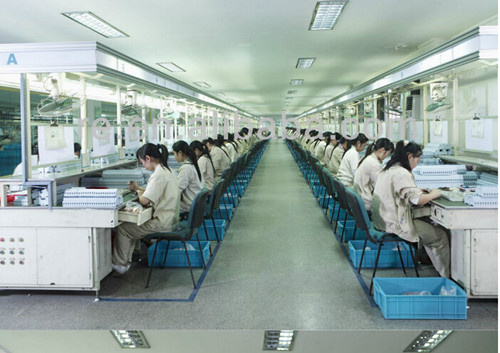

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.
The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.
The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.
Together with you, Souli is willing to create a better future.
