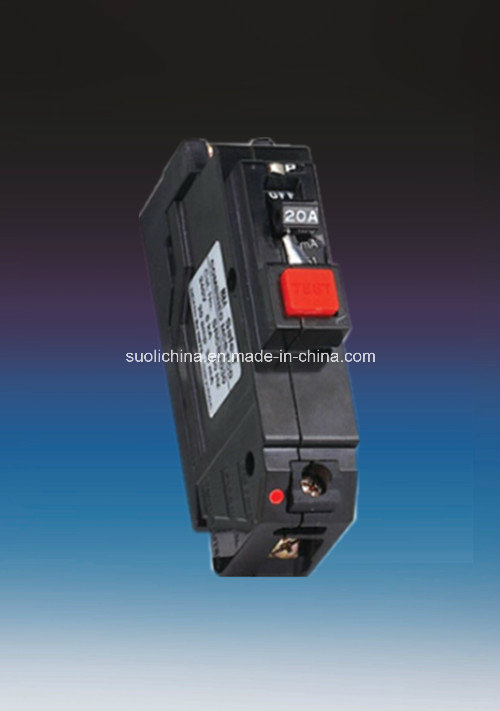

Sll12, 13, 14 Series Residual Current Circuit Breaker RCCB
Product Specifications
| Prod Model: |
SLL12, 13, 14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| MCB: |
RCCB |
| Arc-extinguishing Medium: |
Air |
| Structure: |
ELCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
High-Speed Circuit Breaker |
| Poles Number: |
1p+N |
Product Description

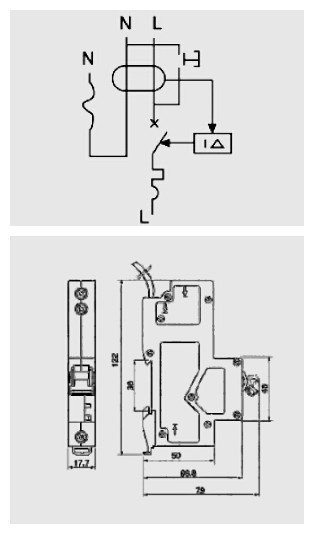

Construction and Feature
Provides protection against earth fault/leakage current,short-circuit and overload
High short-circuit capacity
Provides complementary protection against direct contact by human body.
Effectively protects electric equipmet against insulating failure
Contact position indication
Provides protection against over-voltage
Provides comprehensive protection to household and commercial distribution systemsTechnical Data
Type:Electro-magnetic type
Residual current characteristics:AC
Pole NO.:1P+N
Tripping curve:B,C
Rated short-circuit capacity:10kA
Rated current(A):6,10,16,20,25,32
Rated voltage:230/240V AC
Rated frequency:50/60Hz
Rated residual operating current(mA):0.03,0.1
Tripping duration:instantaneous ≤0.1s
Electro-mechanical endurance:4000 cycles
Connection terminal:pillar terminal with clamp
Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.
Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

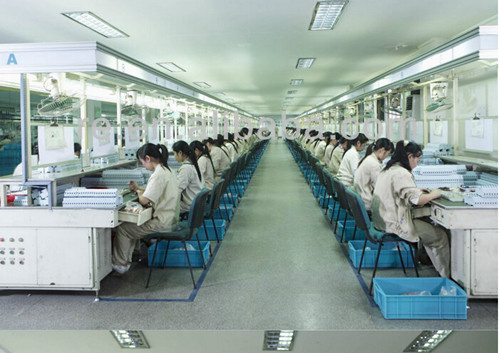

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.
