Construction and Feature Construction and Feature
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Bakelite parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs
and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external
interference, voltage fluctuation.
Residual Current Circuit Breake Residual Current Circuit Breake

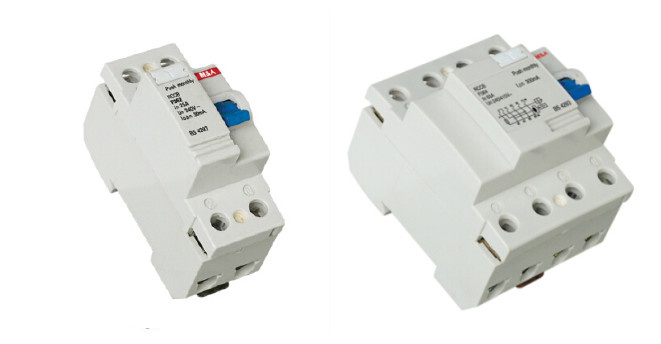

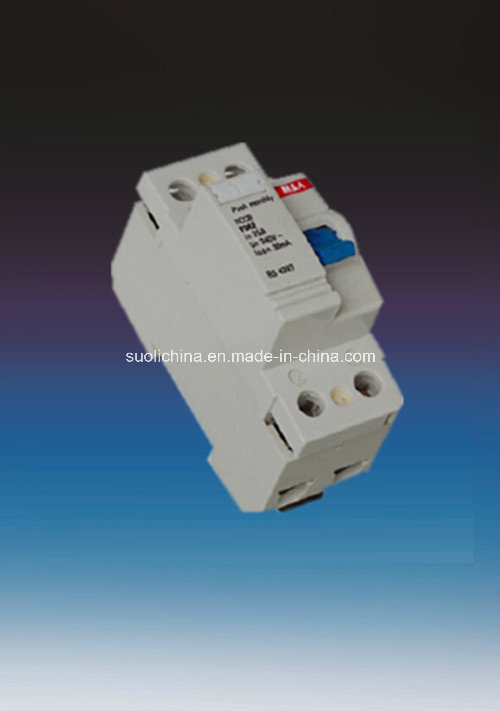

SLL3-63 Series SLL4-63 Series
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and
exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external
interference, voltage fluctuation.
Technical Data
Model:electro-magnetic type,electronic type
Residual current characteristics:A,AC
Pole NO.:2,4
Rated making and breaking capacity:630A
Rated current(A):25,40,63
Rated voltage:240/415V AC
Rated frequency:50/60Hz
Rated residual operating current In(A):0.03,0.1,0.3,0.5
Rated residual non operating current Ino:0.5In
Rated conditional short-circuit current Inc:6kA
Rated conditional residual short-circuit Current Ic:6kA

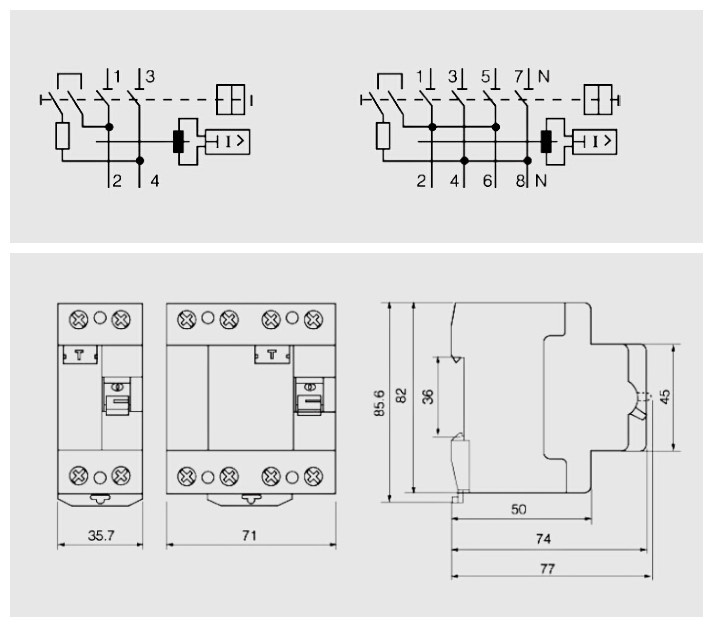

Technical Data
Model:electro-magnetic type,electronic type
Residual current characteristics:A,AC
Pole NO.:2,4
Rated making and breaking capacity:630A
Rated current(A):16,25,40,63
Rated voltage:240/415V AC
Rated frequency:50/60Hz
Rated residual operating current In(A):0.03,0.1,0.3,0.5
Rated residual non operating current Ino:0.5In
Rated conditional short-circuit current Inc:10kA
Rated conditional residual short-circuit Current Ic:10kA
Tripping duration:instantaneous tripping ≤0.1s
Residual tripping current range:0.5In~In
Terminal Connection Height: 21mm
Electro-mechanical endurance: 4000 cycles
Connection capacity: Rigid conductor 25mm2
Connection terminal:
Screw terminal
Pillar terminal with clamp
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
