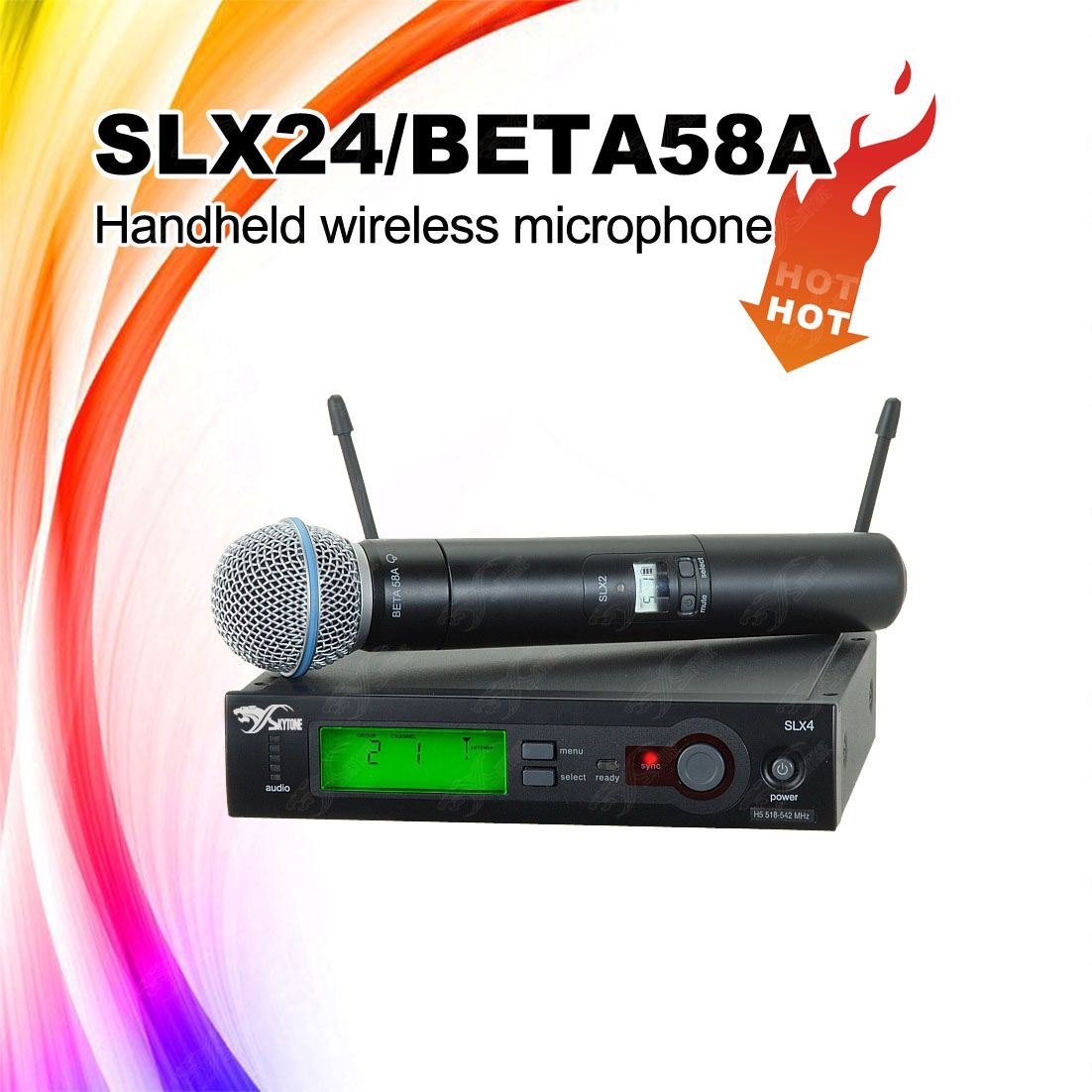

Slx24/Beta58A UHF Wireless Microphone System

Name: Slx24/Beta58A UHF Wireless Microphone System
Brand: China-Manufacturer-Directory.com
SKU: 758341575
Availability: InStock
Rating: 4.8 (89 reviews)

Supplier:	Guangzhou Skytone Audio Co., Limited
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	CFR,CIF,DAP

Product Specifications

Prod Model:	SLX24/BETA58A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
System Type:	Single Handheld Wirelss
Frequency Response:	45Hz-15kHz
Handle:	Beta58A Handle Mic
Receiver:	Slx4 Receiver
Operating Range:	100m
Thd:	0.5%
Voltage:	AC110-120V /AC220-240V
Battary:	2 AA
Power:	12-18V
Style:	Handheld Microphone
Application:	Measurement
Signal Transmission:	Wireless
Sound Channel:	Stereo
Transducer Principle:	Electrodynamic Microphone
Connector(',s):	XLR 3 Pin
Wireless Technology:	UHF

Product Description

SLX24/Beta58 wireless mics/microphones:
Handheld mics
wireless mics
cordless microphone

SLX2:Handheld transmitter with choice of microphone cartridge.
SLX4:Single-channel Diversity Receiver with optional logic output. Up to 42 compatible systems (multi-band).

SLX Wireless Systems are powerful wireless tools that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity, and Shure patented Audio Reference Companding.

SYSTEM FEATURES
--Auto Frequency Selection
Locates a clear channel instantly
--Auto Transmitter Setup
Infrared link automatically synchronizes the transmitter and receiver
RECEIVER FEATURES
--Detachable 1/4 wave antennas
--Backlit LCD
--Rack-mount hardware included
--1/4" and XLR audio outputs
HANDHELD AND BODYPACK TRANSMITTER FEATURES
--Choice of Shure handheld microphones
--Bodypack works with headworn, lavalier and instrument microphones and cables
--Timed backlit LCD
--Frequency and power lockout

Customer comment

Real photos:

Specifications

Slx24/Beta58 System Specifications
Operating Range:		30-100 m (100-300 ft.) under typical conditions, depending on transmitter type Note: actual range depends on RF signal absorption, refl ection, and interference.
Audio Frequency Response:		Minimum: 45 Hz, Maximum: 15 kHz (± 2 dB)
Total Harmonic Distortion:		0.5%, typical (ref. ± 38 kHz deviation, 1 kHz tone)
Dynamic Range:		>100 dB A-weighted
Operating Temperature Range:		Operating Temperature Range:
Transmitter Audio Polarity:		Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance ¼-inch output.
Component Specifications
SLX4		SLX2
Housing:	Galvanized steel	Housing:	Molded ABS handle and battery cup
Audio Output Level:	(ref. ± 38 kHz deviation with 1 kHz tone) XLR connector (into 600 Ω load): -13 dBV ¼ inch connector (into 3000 Ω load): -2 dBV	Audio Input Level:	-8 dBV maximum at 0dB position
Sensitivity:	-105 dBm for 12 dB SINAD, typical	Operating range:	100 m (300 ft.)
Image Rejection	>70 dB, typical	Power Requirements:	2 "AA" size alkaline or rechargeable batteries
Power:	12-18 Vdc at 150 mA, supplied by external power supply	Battery Life (alkaline):	>8 hours
Weight:	816 g (1 lb. 13 oz.)	Weight:	290 grams (10.2 oz.) without batteries
Dimensions:	42 mm H x 197 mm W x 134 mm D	Dimensions:	254 mm x 51 mm dia. (incl. SM58 cartridge)
