GPS Active Antenna, external antenna, car antenna, patch antenna

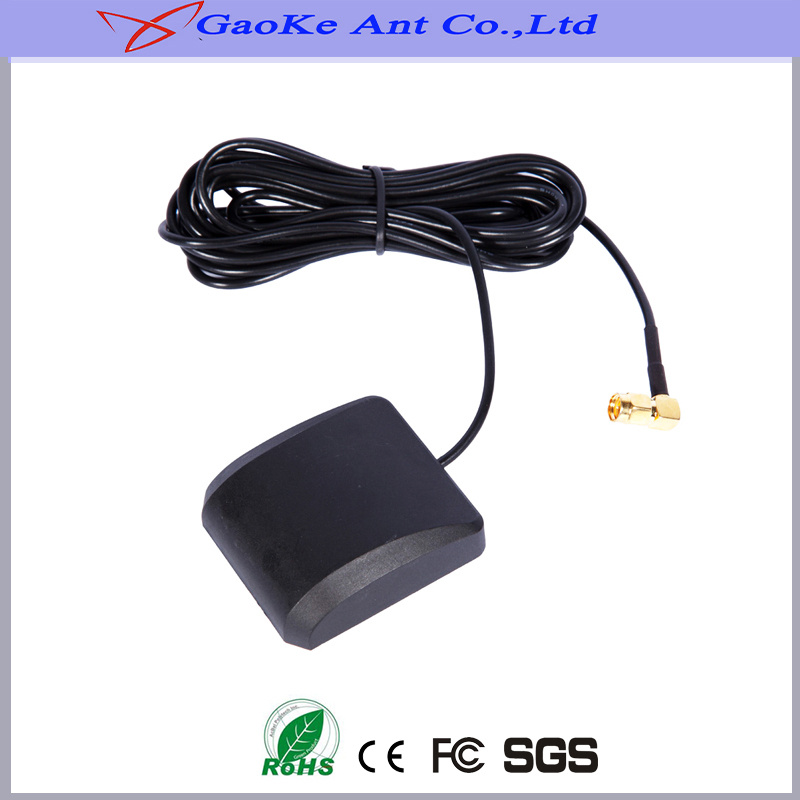

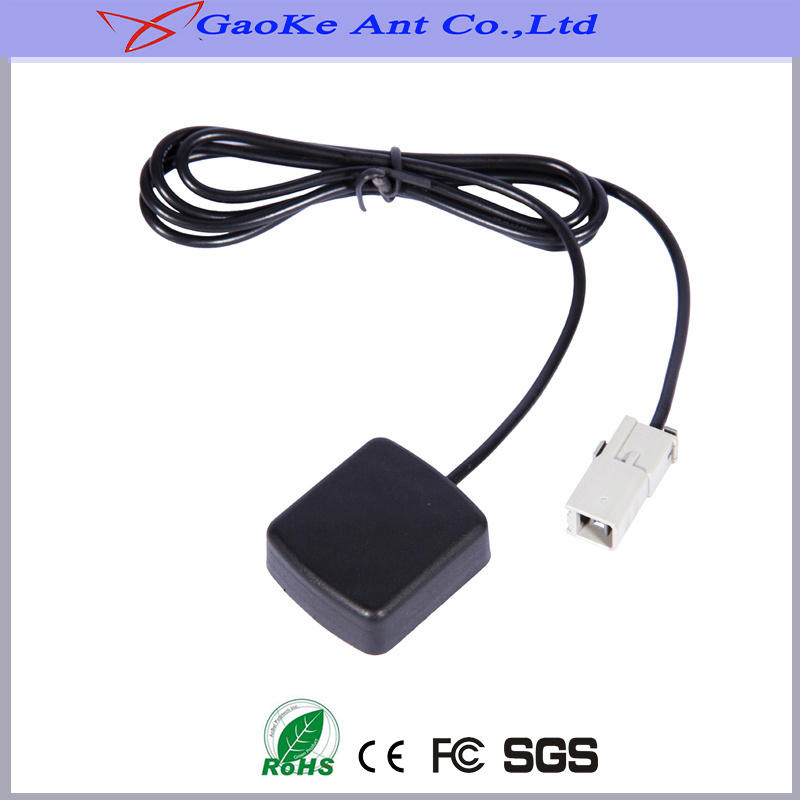

1. Appearance
Size: 48*37*15 Mounting: Magnetic
Weight: <110 Connector:SMA/BNC/MCX/MMCX/Other
Color: Black Cable: RG174
2. Electeical Specification:
1). Range of Receiving Frequency(MHz): 1575.42±3
2). V. S. W. R(in Center Frequency): <= 1.5
3). LNA Gain( with cable) : 28±2
4). Axial Ratio: <=3.0
5).Noise Figure: <=2.0
6). Polarization: Right-Handed Circular
7). Impedance(Ω ): 50
8).Supply Voltage(V): 3-5
9)Current Consumption(mA): 12+-1@3V DC
| Range of Receiving Frequency(MHz) | GPS: 1575.42+-3 |
| V. S. W. R | ≤ 1.5 |
| Axial Ratio | ≤ 3.0 |
| LNA Gain | 28 |
| Noise Figure | ≤ 2.0 |
| Polarization | RHCP |
| Impedance | 50 |
| Supply Voltage | 3-5 |
| Current Consumption | 12+-1@3V DC |
| SIze | 55*50*16mm/48*37*15mm/37*34*13mm |
| Connector | SMA/BNC/MCX/MMCX/Other |
| Cable | RG174 |
| Mounting | Magnetic |
