SMA Solar Inverter SMC9000TL / 10000TL / 11000TL With Reactive Power Control

Name: SMA Solar Inverter SMC9000TL / 10000TL / 11000TL With Reactive Power Control
Brand: china-manufacturer-directory.com
SKU: 672326695
Availability: InStock
Rating: 4.7 (53 reviews)

Supplier:	Always Group Co., Ltd.
Price:	Negotiable
Min Order:	3/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SMC 9000TLRP/10000TLRP /11000TLRP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single
Type:	Transformer

Product Description

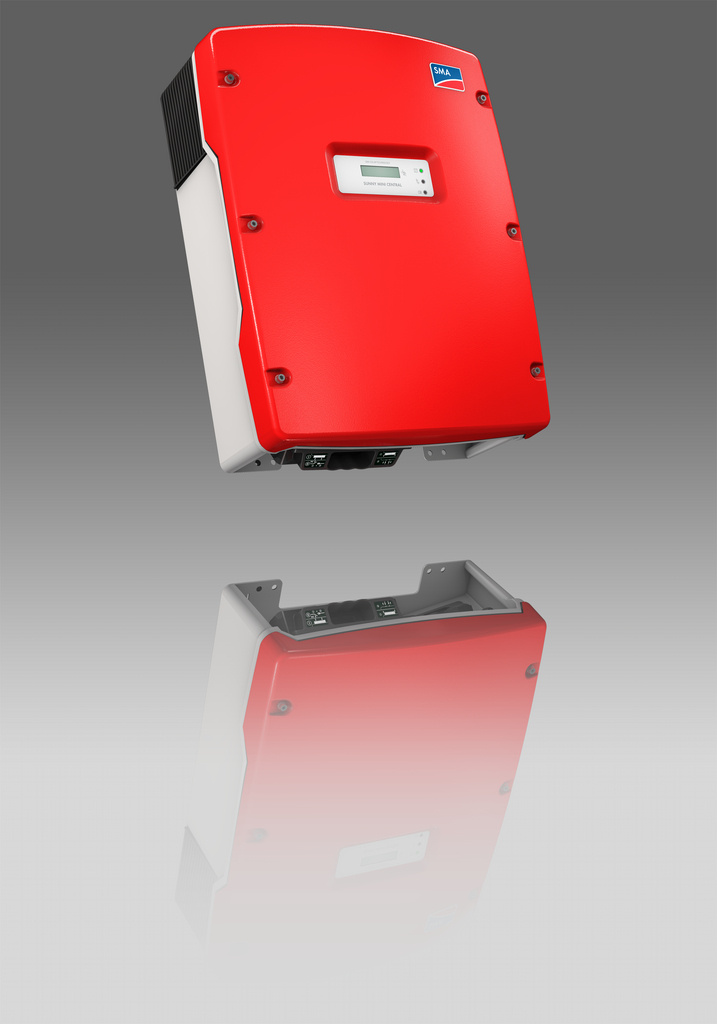

SMA Solar Inverter SUNNY MINI CENTRAL 9000TL / 10000TL / 11000TLwith Reactive Power Control

Flexible
Reactive power supply

High Yields
Maximum efficiency of 97.7%
Transformerless, with H5 topology
Opticool active temperature management

Reliable
SMA power balancer for three-phase grid connection
Integrated ESS DC switch -disconnector
Monitored string fuses

Simple
DC plug system SUNCLIX

	Sunny Mini Central 9000TL	Sunny Mini Central 10000TL	Sunny Mini Central 11000TL
Input (DC)
Max. DC power (@ cos φ = 1)	9300 W	10350 W	11400 W
Max. DC voltage	700 V	700 V	700 V
MPP voltage range	333 V – 500 V	333 V – 500 V	333 V – 500 V
DC nominal voltage	350 V	350 V	350 V
Min. DC voltage / start voltage	333 V / 400 V	333 V / 400 V	333 V / 400 V
Max. input current / per string	28 A / 28 A	31 A / 31 A	34 A / 34 A
Number of MPP trackers / strings per MPP tracker	1 / 5	1 / 5	1 / 5
Output (AC)
AC nominal power (@ 230 V, 50 Hz)	9000 W	10000 W	11000 W
Max. AC apparent power	9000 VA	10000 VA	11000 VA
Nominal AC voltage; range	220, 230, 240 V; 180 V – 260 V	220, 230, 240 V; 180 V – 260 V	220, 230, 240 V; 180 V – 260 V
AC grid frequency; range	50, 60 Hz; –6 Hz, +5 Hz	50, 60 Hz; –6 Hz, +5 Hz	50, 60 Hz; –6 Hz, +5 Hz
Max. output current	40 A	44 A	48 A
Power factor (cos φ)	0.8 leading ... 0.8 lagging	0.8 leading ... 0.8 lagging	0.8 leading ... 0.8 lagging
Phase conductors / connection phases / power balancing	1 / 1 / yes	1 / 1 / yes	1 / 1 / yes
Efficiency
Max. efficiency / Euro-Eta	97.7 % / 97.3 %	97.7 % / 97.2 %	97.7 % / 97.2 %
Protection devices
DC reverse-polarity protection / reverse current protection	yes / opt. (Fuses)	yes / opt. (Fuses)	yes / opt. (Fuses)
ESS switch-disconnector	yes	yes	yes
AC short circuit protection	yes	yes	yes
Ground fault monitoring	yes	yes	yes
Grid monitoring (SMA Grid Guard)	yes	yes	yes
Galvanically isolated / all-pole sensitive fault current monitoring unit	—/ yes	—/ yes	—/ yes
DC overvoltage protector (type II), can be integrated	—	—	—
String failure detection	—	—	—
Protection class / overvoltage category	I / III	I / III	I / III
General data
Dimensions (W / H / D) in mm	468 / 613 / 242	468 / 613 / 242	468 / 613 / 242
Weight	35 kg	35 kg	35 kg
Operating temperature range	–25 °C ... +60 °C	–25 °C ... +60 °C	–25 °C ... +60 °C
Noise emission (typical)	≤ 42 dB(A)	≤ 45 dB(A)	≤ 46 dB(A)
Internal consumption: (night)	0.25 W	0.25 W	0.25 W
Topology	transformerless	transformerless	transformerless
Cooling concept	OptiCool	OptiCool	OptiCool
Electronics protection rating / connection area (as per IEC 60529)	IP65 / IP65	IP65 / IP65	IP65 / IP65
Climatic category (per IEC 60721-3-4)	4K4H	4K4H	4K4H
Features
DC connection: SUNCLIX	yes	yes	yes
AC connection: screw terminal / spring-type terminal	yes /—	yes /—	yes /—
Display: LCD / Graphic	yes /—	yes /—	yes /—
Interfaces: RS485 / Bluetooth	opt. / opt.	opt. / opt.	opt. / opt.
Warranty: 5 / 10 / 15 / 20 / 25 years	yes / opt. / opt. / opt. / opt.	yes / opt. / opt. / opt. / opt.	yes / opt. / opt. / opt. / opt.

Always Group Co., Ltd., located in Nanjing, Jiangsu, China, is group company consist of several sub factories focusing on different products and business ranges. We are focus on providing PV system integration service in China for industrial and residential applications. We are also a value-added global reseller for SMA inverters by providing sales and technical advisory for end market across countries. We also engage ourself in in designing and manufacturing various kinds of home appliances as well as new products fit for the market. Our main product lines are:

1.1) Providing SI (system integration) service for roof-top PV projects, especially for industrial and residential applications. 2) Providing stand-alone solar power system for specific applications, such as solar electricity for rural areas, solar emergency supply, hybrid power systems and back-up systems. 3) Developing PV monitoring software for small PV projects and large-scale PV plants, as well as delivering customization for different PV applications.

2. White home appliance (Air conditioners, Refrigerators, Chest Freezers, Ice machines, Showcases, Supermarket Freezer/Showcase/Cabinet ), most of them are concerning on cooling and refrigeration technology.

Welcome to contact us for more information!
