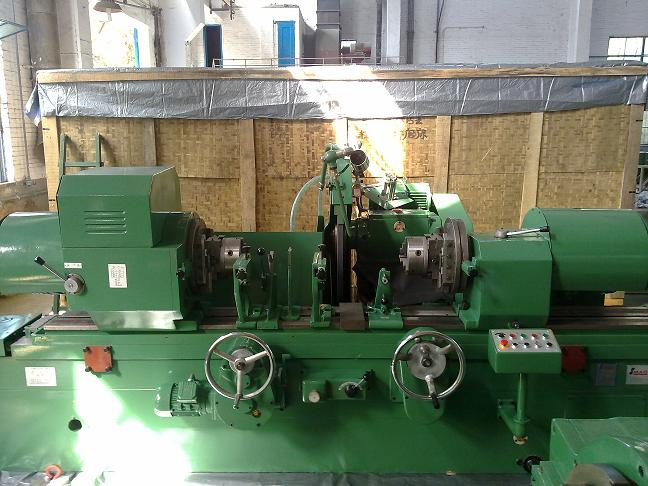

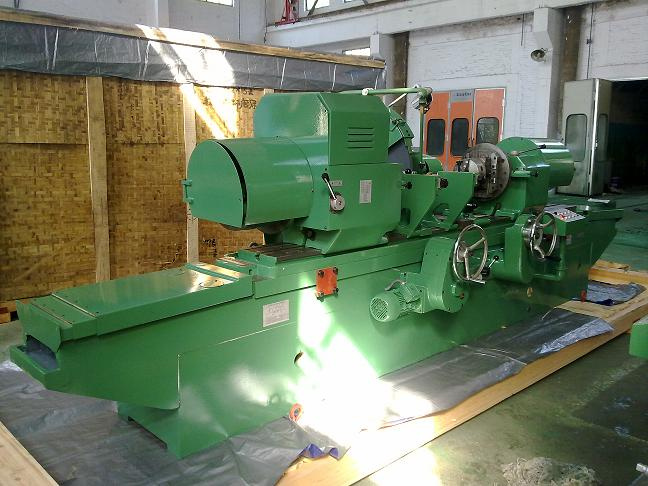

Smac Advanced and Well Function Metal Internal Grinding Machine

Product Specifications

Prod Model:	WX-009A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Smac
Place Of Origin:	Jiangsu, China (Mainland)
Voltage:	380V or as Your Requirements
Type:	Internal Grinding Machine
Processing Object:	Crank Shaft
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Precision:	High Precision

Product Description

The characteristics after improvement are as follows:
The feed and dressing-compensation systems are two independent systems so that it is unnecessary to readjust machinery after changing a new wheel. The feed system is capable of performing sizematic grinding cycle to control the final size of the workpiece.
A jumping device is equipped on these machinery, therefore, it is unnecessary to manually reset the machinery after measuring or dressing.
The worktable is driven by hydralic system. The speed can be adjusted steplessly.
The wheel feed can be carried out either manually or hydraulically.
The worktable is equipped with an axial micro-movement device for grinding end faces with the internal grinding spindle.
A thyristor convertor is provided for work spindle for speed variation.
There is a machined surface on the bed for installing steady-rest when grinding long workpieces.
Model MD 2120A Internal Grinder is equipped with a end face grinding attachment, hence, bore and outside end face can be ground at one setup.
The machine is provided with a grinding spindle of 18000r/min. The grinding capacity can reach as small as 20mm I. D.

	Model	Dia. to be ground (mm)	Max. grinding depth (mm)	Working accuracy (μm)			Total power (kw)	Weight (kg)	Remark
				Roundness	Cylindricity	Rounghness (Ra)
17401	M215A	3-50	80	3	3	0.63	7.39	1200
17402	MD215A	3-50	80	3	3	0.63	8.14	1300
17403	MK215	3-50	80	1	2	0.40	6.5	2500	CNC
17404	M2110C	6-100	150	3	5	0.63	4.14	1600
17405	MK2110	15-100	125	3	3	0.63	7.5	4000	CNC
17406	MGD2110A	10-100	125	1	3	0.16	7.5	3500	High precision
17407	M2120A	50-200	200	3	8	0.63	8.6	3400
17408	MD2120A	50-200	200	3	8	0.63	8.89	3500
17409	MK2120	50-200	200	3	5	0.63	8.5	3300	CNC
14710	MG2120	50-200	200	1.2	3	0.16	9	3500	High precision
14711	M250A	150-500	450	5	8	0.63	8.92	4500
14712	M2532C	20-320	280	15	15	1.25	11.47	6500
17413	MK2710	30-100	80	2	3	0.40	10	5000	CNC
17414	WX-009A	45-160	750	20	8/200	0.80	6	6000
17415	WX-031A	35-135	80			0.80	6.7	2500
17416	WX-034A	155-250	50	10	20	0.80	4.5	6500
17417	WX-42A	6	20	0.8	2	0.16	6.3	3000
17418	WX-065	40-120	115-230			0.4	10	6500
