Product Specifications
| Prod Model: |
JND-1220 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Using Life: |
9000 Times/3 Years |
| Selling Point: |
CE,UL Certifacate |
| Printing Line: |
1-3 Lines |
| Inspection: |
Pre-Shipment Inspection |
| After-Sales Service: |
Engineers Available to Service Machinery Overseas |
| Usage: |
Metal |
| Driven Type: |
Electric |
| Automatic Grade: |
Automatic |
| Color & Page: |
Single-Colour |
| Inkjet Materials: |
Ink |
| Output Format: |
Character |
Product Description

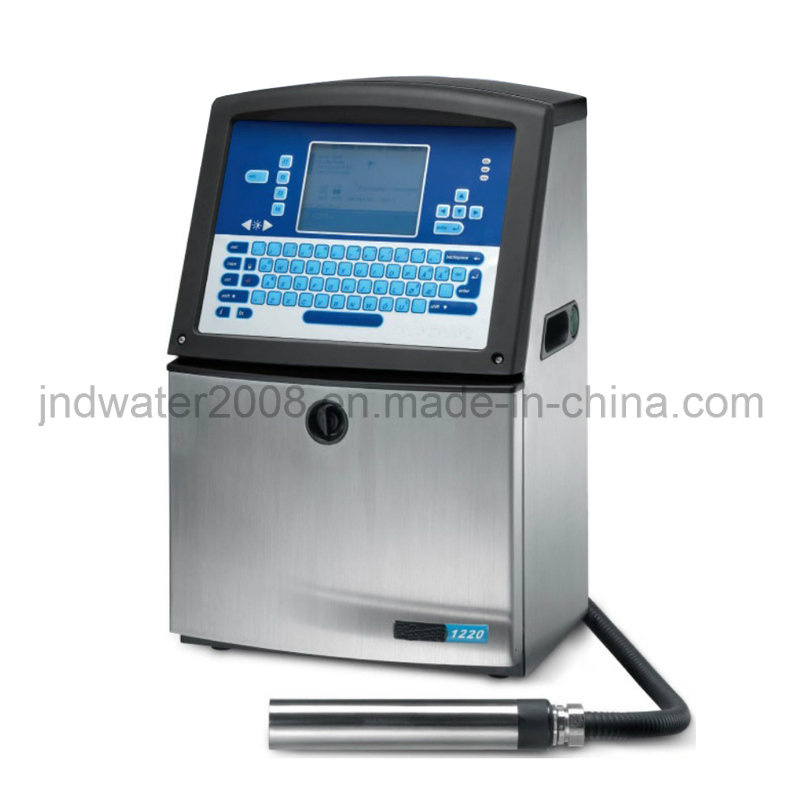

Small Character Inkjet PrinterAdvanced capabilities
Up to 3 lines of code with speeds up to 533 ft. /min. (162 m/min. )
Standard USB, with logo and memory back up features
Simple to maintain
9, 000-hour core life
No mess, no waste, no mistake fluid cartridge delivery system
Superior environmental protection
IP55 washdown protection standard
Line Speed
Can print 1 to 3 lines of print at speeds of up to 533 ft. /min. (162.5 m/min. )
Font Matrix Configuration
| Single-line | 5x5, 5x7, 7x9, 11x16, 17x24 |
| Twin-line | 5x5, 5x7, 7x9 |
| Tri-line | 5x5, 5x7 |
Nominal Character Height
From 0.079" (2 mm) to 0.279" (8.5 mm), depending on the font
Throw Distance
| Optimal | 0.472" (12 mm) |
| Range | 0.197" (5 mm) to 0.591" (15 mm) |
Keyboard
Membrane style with tactile feedback, including 72 numeric, alphabetic, and special function keys. PC-style layout to approximate international PC convention.
Display
320x240 Bright blue backlit 5.7" LCD display. WYSIWYG onscreen message editing
Custom Logo/Graphics
Can be created by individual user on printer or PC with optional Videojet Logo Creator software
Character Sets
American, Arabic, Bulgarian, Chinese, East European, European, Greek, Hebrew, Hungarian, Italian, Japanese, Japanese/Kanji, Japanese/ Katakana, Korean, Russian, Simplified Chinese, Scandinavian, Thai, Traditional Chinese, Turkish, Vietnamese
Languages and Interface Options
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese
Data Interface
Standard USB with logo and memory backup features
Message Storage
100 complex messages. Unlimited storage using USB.
Console Dimensions
Stainless steel 21.3" (541 mm) high 13.6" (345 mm) wide 11.2" (285 mm) deep
Heated printhead
| Diameter | 1.63" (41.3 mm) |
| Length | 9.47" (240.5 mm) |
Printhead Umbilical
Ultra flexible
| Length | 6.56' (2 m) |
| Diameter | 0.91" (23 mm) |
| Bend radius | 3.00" (76.2 mm) |
Fluids Containers
Ink Smart Cartridge 0.793 qt. (750 ml)
Make-up Smart Cartridge 0.793 qt. (750 ml)
Temperature/Humidity Range
32° F to 122° F (0° C to 50° C) 0% to 90% RH non-condensing
Power supply
| Nominal supply power | 100-120 / 200-240 VAC at 50/60 Hz., 120 W |
Approximate Weight
| Unpacked and dry | 39.68 lbs. (18 kg) |
Options
Positive air pump
Dry air kit for high humidity (requires plant air)
Product detect, relay, RS 485 expansion board
RS232, encoder, beacon expansion board 9.8-foot (3 m) umbilical
Food grade version
Wide range of accessories
