Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Materials: |
304 Stainless Steel |
| Control: |
Automaticplc Controlled |
| Air Cylinder: |
Festo Brand |
| Bearing: |
NSK Brand |
| Gearbox: |
Sew Brand or Chinese Famous Brand |
| Transducer: |
Siemens |
| Motor: |
Sew Brand or Chinese Famous Brand |
| Application: |
Biscuit |
Product Description

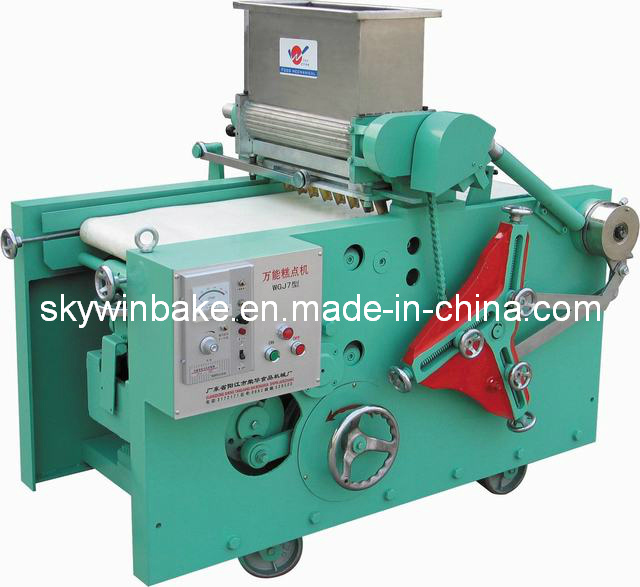

400 tray type cookie machine？
Cookies biscuits forming by wire-cut, dropping and dropping with rotation
PU conveyor belt, thickness 0.8mm, deflection and tension adjust by air cylinder,
Air cylinder use famous brand, Gearbox use Chinese famous brand GUOTAI,
bevel wheel with high drive efficiency, low noise and work stability and so on.
Motor fomous brand, high efficiency, low noise and long using life and so on.
Feeding and forming use Servo motor, TAIDA brand,
Feeding roller diameter 106mm, Rubber driving roller diameter 135mm
High quality alloy steel or aluminum alloy, carving groove on surface of roller.
Conveying frame use 28mm thickness Q235 carbon steel, covered hard chrome,
Surface rigidity HRC58-62, conveying belt support splint use 304 Stainless steel,
Edge plate Q235 carbon steel thickness 15mm,
Machine cover made by 304 stainless steel, 1.5mm thickness,
Feeding hopper made by 3.0mm thickness 304 stainless steel
Electric control: All driving speed controlled by frequency conversion,
Transducer and Electronic element use Chinese famous brand, working width 400mm,
Pan size 400x600mm, forming capacity 50-100kg/hour, suggest No-sticks paint 300pcs,
Rack oven 2sets, Pan Truck (32pans on one Truck) 10pcs for one production line
Cutting thickness 3-10mm, 380V/50Hz,？
Power: 3.5KW, Dimension: 2200x700x1070mm
Total weight: 450kg
Normally the nozzle is 7pcs (400MM)
Extrusion/depositor about 30 stroke one minute
Cutter about 40 stroke one minute
Baking time: The baking time is different according to cookies size and recipes.
Rotary oven: about 8-12minutes for extrusion/depositor and cutting cookies
Tunnel oven: Extrusion/depositor about 18miutes, Cutter about 12-15minutes
The rotary oven size 2680x1660x2400mm, Power 50kw.
？
？ ？Electric installation
Electrical supply: 380V/460V 3 phase
Max. Voltage fluctuation: +/- 8%
Control voltage: 220v/50Hz
Supplier will supply site wiring materials including cables, cable trays,
junction boxes and other materials for wiring from the control panels to
the motors and other electrical equipment.
？
Components
Stainless steel: 304#
Bearing: Chinese famous brand
Cylinder: Chinese famous brand
Motor & Gearbox: Chinese famous bran GUOTAI bevel wheel
Transducer: TAIDA
Electrical components: TAIDA
Biscuit forming mould: Steel & Stainless steel(wire-cut or depositor or dropping with rotation)
