Product Specifications
| Prod Model: |
LP-05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

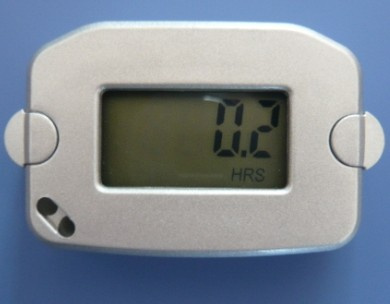

Small Engine Hour Meter with function record max revolution for Marine, ATV, Motorcycle, Snowmobile or any gasoline 1/2/4 stroke
Can record and rese max RPM
With 100% aluminium and CNC machining, it has stronger body and better performance
Track the Service Life of Your Vehicle-oil changes, valve, adjustments, spark plugs, etc
Easy Installation-peel & stick, no wiring necessary, or attach with enclosed hardware.
No Battery Require-connects to spark plug wire.
Works on Any Gas Engine.
Installation Method:
1. Wrap the included pick-up wire around the spark plug wire five times. Start wrapping the pick-up wire about 4cm from the end of spark plug boot. Use the included zip tie to secure the pick-up wire wrapping as shown in the photo right.
2. Before continuing the installation, insert the pick-up wire Into the rear of the meter. Start the motor to make sure the meter is picking up the ignition signal. If it is, this will activate the timer on the meter and the icon on the left of the LCD will flash. You'll have to wait at least 6 minutes to increase the timer display(1/10th of an hour). If it is not picking up the ignition signal, slide the pick-up wrap closer to the spark plug boot.
3. 1f the meter is successfully picking up the spark signal, run and zip tie the pick-up along one of the throttle cables. Make sure the pick-up wire can not make contact with the engine. Also, make sure you leave enough (about 8 cm) so removing the spark plug wire is possible. Keep in mind the general location of final mounting location on the frame spare.
4. Securing Method:
A. Drilling into your frame with 2.5mm socket, then secure it to the frame coming with two pick-up screws.
B. Using padded double-sided tape on the backside of the meter and secured it to the frame spar with zip ties. That's all there is to the installation. Now you're set to accurately track your maintenance. Don't forget to record the metered time when performing maintenance.
Quick Facts
Compatibility: All motorcycle models (anything with a spark plug really should work)
Hardware Included: Meter, pick-up wire, two screws
Tools Required: 2. Smm socket to remove shroud, wire cutters.
