Product Specifications
| Prod Model: |
XLB-350*350*2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Identification: |
ISO |
| Advantage: |
Precision Higher, Service-Life Longer, Efficiency |
| Colour: |
Green |
| Advantage1: |
Without Oil Spiliing or off Pressure |
| Pressure Advantage2: |
Low Noise and High Safety . |
| History: |
More Than 30 Years with Professional Technology |
| Delivery Detail: |
Within 25 Days After Receive Money or According to |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Laminating Machine |
| Certification: |
CE, ISO, SGS |
Product Description
1. Structure:

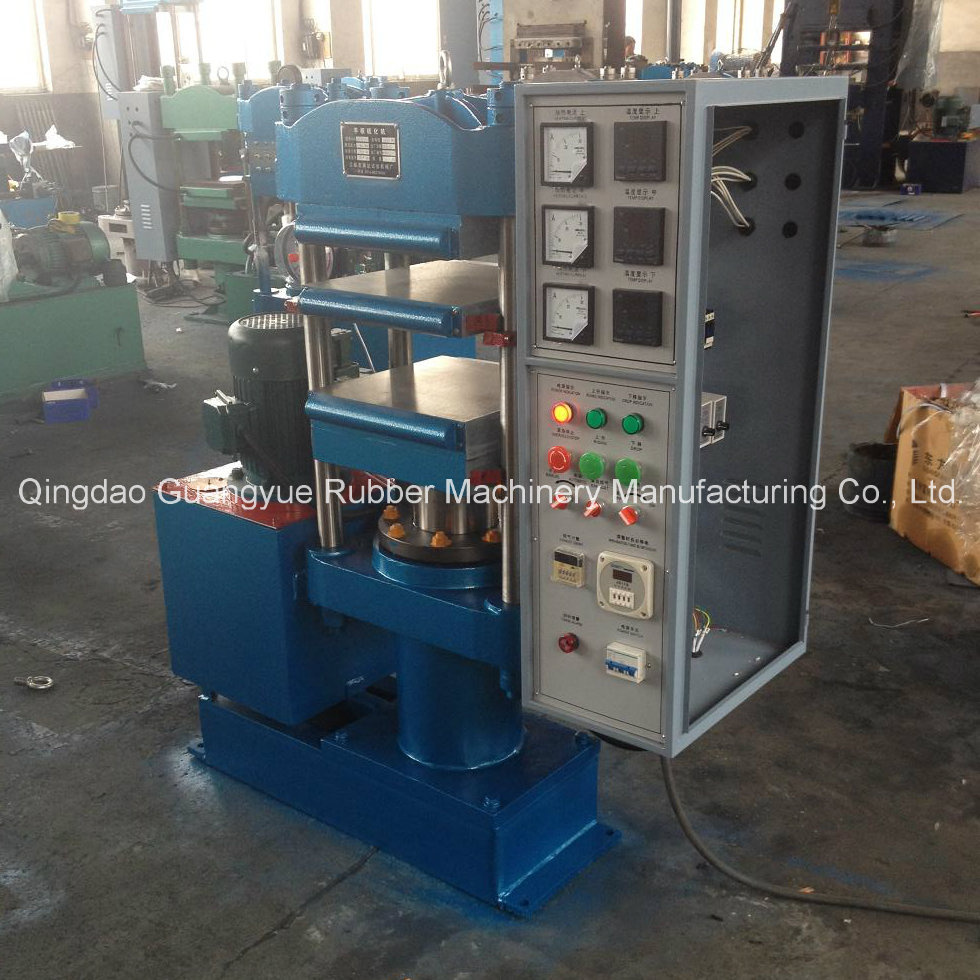

This machine is frame structure, including main machine, hydraulic station, electric controlling cabinet
Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
2. Operation:
Being a frame structure and upward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger
The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure
This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and abrade ability, the cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose
By moving the operational handle of the control value to the two different positions, the heating plate can open and close
It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation
3 Technical advantage
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small, which ensure pressure.
3 our vulcanizing press is equiped with automatic controling temperature and pressure, automatic alarm, automatic loading, emergency stop, digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature tolerance: ± 1° C, which follows the national standard.
6 the parallelism differnce does not exceed ± 0.01-0.02mm
7 heating method according to your request: Electricity, steam heating, conduction oil heating.
8 we can make machine according to the your request.
9 we can give a discount according to your quantity
Our Services
1 guarantee: 2 years We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2 Engineers available to service machinery overseas; Send the engineers to debug the machines and instruct your workers to operate the machines, but you are responsible for hound plane tickets, visa. Living and eating, in your place
3 logo design
We can design machine logo according to your request by send us your logo picture
4 Original B/L
We can offer you Original B/L and commercial invoice, packing list, each 3 pcs by TNT
5 Certificate of origin
We can offer you certificate of origin, so that you can get some privilege of import tax.
Normal Pressure |
0.8 |
Size of hot plate |
500x500mm |
Space between hot plate |
125mm |
Working layers |
1~2 |
Max hydraulic pressure |
20Mpa |
Hot plate unit press |
2.5Mpa |
Plunger stroke |
250mm |
Heating mode |
Steam heating or electric heating |
Motor Power |
2.6kw |
Dimension |
1420x550x1768 |
Weight |
1700kg |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
