Product Specifications
| Prod Model: |
GM/EP-100x60X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Lab Use Ultrafine Jaw Crusher |
| Crushing Object: |
Coal, Ore, Mineral,Rock |
| Feedign Size: |
<48mm |
| Discharge Size: |
0.2-3mm |
| Handling Capacity: |
60-250kg/H |
| Certificate: |
CE |
| Weight: |
About 210kg |
| Packaging Volume: |
About 0.5cbm |
| Drive: |
Electric |
| Crushing Degree: |
Fine Grinding Machine |
| Type: |
Jaw Crusher |
| Crushing Style: |
Grinding and Impact |
Product Description

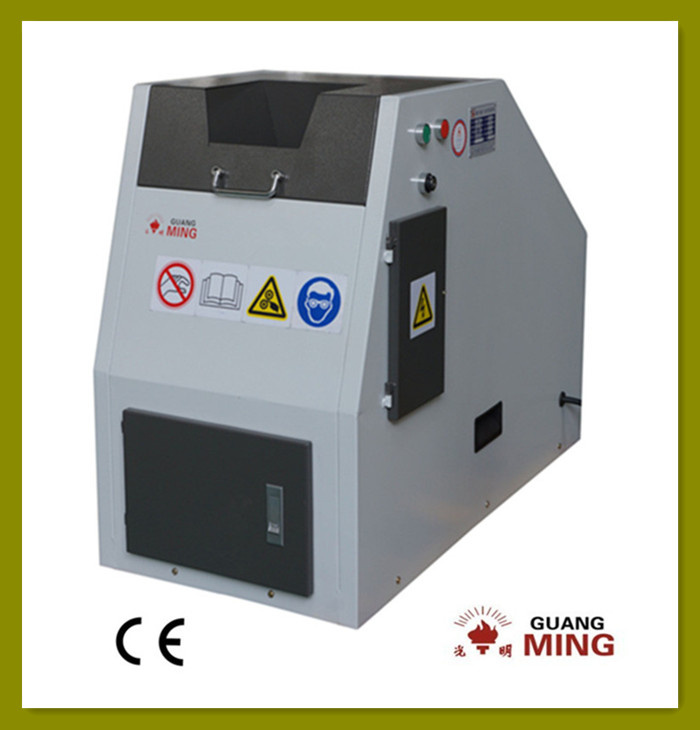

Small Lab Size Crusher mill, Ultrafine Lab Jaw Crusher for ore and coal
Highlignt of the lab size crusher mill
*Wearable jaw plate;
*CE Certificate;
*Uniform discharge size, no blocking up;
*Warranty period: One year
Typical Applications:
This small jaw crusher is used for crushing high hardness ores, mineral or other solid material for component analysis continuously or intermittently.
Such as:
Coal industry: Coal, coke, blind coal, clean coal, brown coal;
Ore: Copper ore, chrome iron ore, chalcopyrite, dolomite, calcspar, galena;
Nonferrous metal: Plumbum, Zinc, Aluminum, Magnesium, Gold, Silver, Platinum, Tungsten, Lithium, Uranium;
Other: Slag, Kaolin, Gypsum, Rock, Sandstone, Cement, Limestone;
Especially Suitable for:
The unit is especially suitable for sample preparation work in the laboratory of industrials of nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
Working principle:
After starting the motor, triangle belt and motor belt wheel will drive the belt wheel and eccentric shaft to rotate, the movable jaw and movable jaw plate will do periodic movement, when the material passes through the no-rebound hopper and enters into crushing chamber, then the movable jaw plate and fixed jaw plate crush the material by friction.
ADVANTAGES:
1. Adopting special technology and material, it especially suitable of crushing high strength alloy material.
2. The jaw plate is made of high strength material which has good abrasive resistance and will not pollute the sample.
3. The crusher has the advantages such as: Even discharging size, smooth running, easy adjustment and long service life.
4. The machine frame is made of the cast steel after heating treatment.
5. Removable shell which is convenient for daily maintenance and inspection of the machine.
6. Mechanical-electrical integrated controlling and it is easy to operate.
7. Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.
8. Total electro-static coating surface which makes good appearance and easy to clean.
9. It can work normally on the flat ground without fixing any base.
Packaging and shipping way:
-Packaging way: Each crusher mill is packaged in a customized plywood case that will protect the crusher well during transportation process;
-Shipping way: By sea, by air as per customer's request, we also have long-term cooperated shipping agent who can solve customer's shipping problem.
-Shipping port: Shanghai, Ningbo, Guangzhou and so on.
Choosing tips:
If you can not decide which Model No. Jaw crusher is fitted you, the information you provide as per below questions will be helpfu for us to recommend you suitable jaw crusher.
1. What's kind of your material?
2. What's you material max feeding size and requested output size of production?
3. What's your handling capacity requirement?
Company information:
The small lab size crusher mill supplier-Guangming company is a leading laboratory sample preparation manufacturer in China, and has been specializing in the industry for more than 30year, laboratory jaw crusher, grinder, sieve shaker, divider, calorimeter, sulphur tester are the featured products.
Guangming units a number of high qualified engineers and talented managing persons to provide customers advanced products and good service. Depending on rich experience, Guangming can control the proucts cost well and don't lower stone crusher plant quality.
Warmly welcome to contact us for the lab small crusher mill.
Contacter: Teresa Wang
Tel: 0086-791-88113882; Cell phone: 0086-156 7912 9986
|
Parameter of Small Lab Size Crusher mill, Ultrafine Lab Jaw Crusher for ore and coal |
|
Model No. |
GM/EP-100× 60 |
GM/EP-100× 60X |
GM/SP-150× 125 |
GM/EP-150× 125X |
GM/EP-250× 150 |
|
Feeding entrance size(mm) |
100× 60 |
100× 60 |
150× 125 |
150× 125 |
250× 150 |
|
Feeding size(mm) |
≤ 45 |
≤ 45 |
≤ 100 |
≤ 100 |
≤ 200 |
|
Discharging size (mm) |
3-10 |
0.2-3 |
3-38 |
6-38 |
10-40 |
|
Handling capacity(kg/h) |
500 |
60-250 |
500-1000 |
500-1200 |
1000-3000 |
|
Working power supply (V) |
380 |
380 |
380 |
380 |
380 |
|
Dimension (mm) |
1000× 550× 740 |
1000× 550× 740 |
1140× 740× 985 |
1140× 740× 985 |
1670× 800× 1050 |
|
Motor power(kw) |
1.5 |
1.5 |
4 |
4 |
7.5 |
|
Total weight (kg) |
186 |
186 |
585 |
585 |
950 |
