Application:

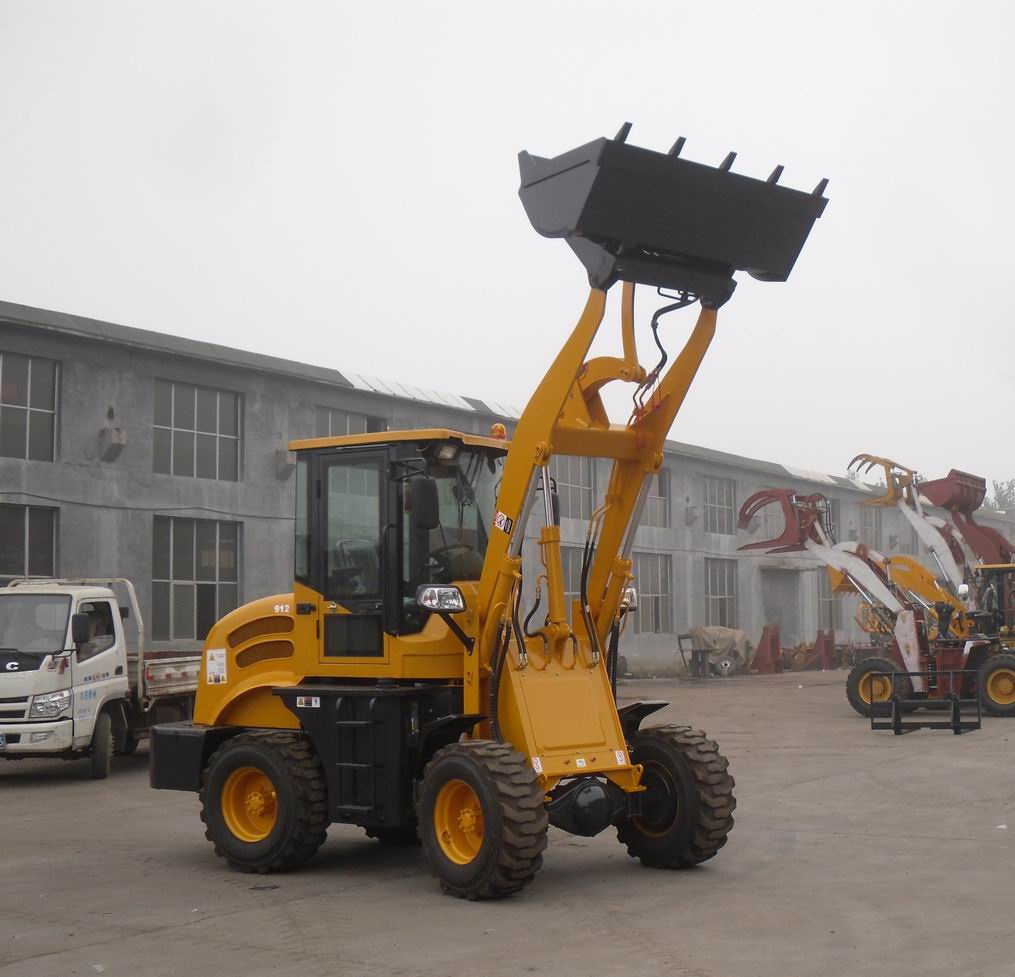

CE Approved front wheel Loader ZL12F are mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. To shovel and load or transfer loosing soil, sand and stone, coal cinder, trash and other loosing materials. Compact wheel loader can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.
Compact Wheel Loaders deliver high performance, versatility, and precision in any application to help you get more done.
Features:
1. Adopting hydraulic-mechanical transmission.
2. Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short.
3. Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction.
4. The brake system of the wheel loader is of the four wheel internal expanding type and is hydraulically operated on both front and rear wheels.
5. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view.
|
Specification |
overall weight(kg) |
3600 |
|
L× W× H(mm) |
5100x1680x2650 |
|
Rated bucket capacity(m3) |
0.5 |
|
Rated load(kg) |
1200 |
|
dump height (mm) |
2680 |
|
Dump distance |
900mm |
|
Wheelbase |
2100mm |
|
Tread |
1400/1405mm |
|
Total time |
11s |
|
Engine |
Brand and modle |
Changchai 4L68, xinchai490/498 |
|
Type |
Four strokes, Water cooling, Inline, injecting combustion chamber
|
|
Rated power(kw) |
37 |
|
Rated speed(r/min) |
2200 |
|
Transmission system |
Model of torque converter |
YJ240 |
|
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead, 2 gear astern |
|
Working system |
Distribution of work valve |
DF15.2C |
|
Working pump |
CBF32 |
|
Steering system |
Type |
Articulated hydraulic steering |
|
Max. turning angle |
27° ± 1° |
|
Min turning radius(mm) |
3500 |
|
Tire |
Standard tire |
14/90-16, 12-16.5 |
|
Optional wide tyres |
14-17.5 |
Qingzhou Shiji Kaiwei Construction Machinery Co., Ltd located in Qingzhou, Shandong Province, Which province is the biggest bases of heavy equipment in China. Near one of the most biggest seaport Qingdao, with convenient transportation, and that provides a unique condition for the development of enterprise.
The Company's strong economic strength, strong R & D capabilities, developed through the introduction of technology, equipment, development 908.910.912.915.916.918.920.926.928.930.932.936 series loaders, and get CE certification. Electric-hydraulic gearbox, easier operation, high working efficiency. Pilot controlled can be choose, fully hydraulic steering system, electric -hydraulic transmission, easier operation. Bucket can be leveled automatically, Optimized working device, higher productivity. Comfortable operation environment, new design cabin and Europe cabin can be choose, Air -condition at option.
Kaiwei loader is suitable for narrow space operations with small turning radius, steering flexible. It is hydraulic operation, simple structure, easy operation, good performance, reliable quality, low price, products sold at China and abroad, has been all over the world agency and customer high praised. The products are widely used in infrastructure projects, road construction, brick furnace, sand plant, coal processing industry, stones material factory, cement precast factory, farms, ports, railway stations and agricultural engineering etc. And it can be customized according to customer needs to produce wood fork\grass fork\tuber fork\ paper fork\ snow shovel, 4-in-1 bucket and multi-function accessories
The company can accept customized, OEM, ODM, etc., to meet customer requirements and strive to exceed customer expectations for the purpose, adhere to the people-oriented, and constantly introduce advanced management mode and modern management means, forge ahead, so that the company's management has always been the most advanced towards the goal.
Kaiwei hospitable people warmly welcome customers at home and abroad to come to our factory to negotiate business. Recruitment for agents from home and abroad!
