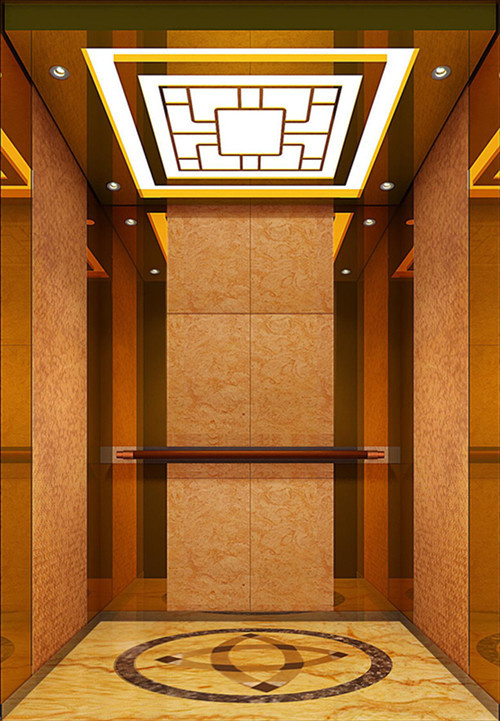

Small Machine Passenger Elevator

Product Specifications

Prod Model:	KJX-09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO,SGS
Warranty:	18 Months After Shipment Date
Machine Room:	Small Machine Room
Driving Type:	AC Elevator
Capacity:	500-1000kg
Persons:	6 - 10
Speed:	1.00 - 2.00m/s

Product Description

1)Product Description:
Ceiling: KDD-21
Control Box: KCZ-06
Cabin Wall: Wooden glass mirror
Front Board: Ti-gold stainless steel;
Arm rest: Back wall one handrail, type KFS-06
Floor: KDB-09

2)Our Superiority:
1. More Safety: Better infra-red multi-beam screen detector
As for general elevator, when the elevator is going to close, some of the passengers at this time to enter, may be clipped, but our company has a better safety light curtains, more intensive, so it is more safe.
2. More Humanization: Humanized design, comfort and natural
The car can be decorated with different design according to the different needs of users, for example install more armrests, multi-select control system, more beautiful luxury floor and so on, so that passengers have a comfortable feeling while riding.
3. More Greenization: High efficiency and up to 40% energy saving.
We choose rare earth material and fully combine coaxial transmission technology and digital variable frequency technology with group computer combined control technology. With less running cost & less energy dissipated. Compared with the ordinary and traditional technology, gearless traction machine can save more than 30% of the energy. Gearless traction machine needs no renewal of lubricant. Without grease pollution, low noise, quiet & natural.

3)Enterprise Prospect:
We will devote ourselves to build KUIKO elevator as a global manufacturer of high-quality elevator and to make it rank among the world's leading elevator companies!
Choose us, we promise your choice is very right!

Person / capacity	Net size of car AAxBB (mm)	Net width of door JJ (mm)	Depth of door (mm)	Hoistway size AHxBH (mm)	Rate Speed V(m/s)	Height of door HH(mm)	P.H PD(mm)	Overhead height OH(mm)	MR.H (mm)
8/630	1400 X 1100	800	1000	1950 X 1750	1.0	2100	1400	4200	2500
					1.5		1500	4300
					1.75		1600	4400
10/800	1400 X 1350	800	1000	1950 X 2000	1.0		1400	4200
					1.5		1500	4300
					1.75		1600	4400
					2.0		1700	4500
					2.5		1850	4700
13/1000	1600 X 1400	900	1100	2200 X 2050	1.0		1400	4200
					1.5		1500	4300
					1.75		1600	4400
					2.0		1700	4500
					2.5		1850	4700
18/1350	2000 X 1500	1100	1300	2600 X 2150	1.0		1400	4200
					1.5		1500	4300
					1.75		1600	4400
					2.0		1700	4500
					2.5		1850	4700
21/1600	2000 X 1700	1100	1300	2600 X 2350	1.0		1400	4200
					1.5		1500	4300
					1.75		1600	4400
					2.0		1700	4500
					2.5		1850	4700
