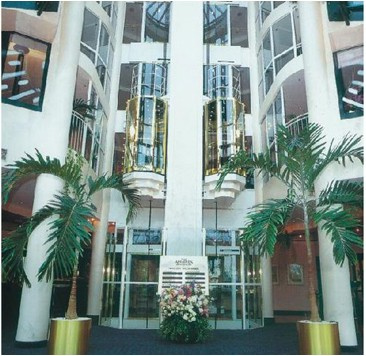

This is OEC-G001 Observation lifts/panoramic elevator/observation lift/sightseeing elevator.
Car cover: Bake enamel finished steel.
Obervation wall: Laminated glass(5+5 three piece).
Decoration roof: Steel plate plastic,acrylic lighting.
Car side: Hairiline finished St/St
Handrail: Φ38 Stainless steel tube
Floor: PVC
Passenger elevator adopts international advanced vvvf AC transformation and frequency control achieves easy operation.It is widely used in hotel,restaurant,store,office,building,business and residence building,In order to ensure high level stable and reliable operation of elevator.The adoption of digital control technique and serial communication will make the elevator with accuracy,high speed and energy saving and improve its operation performance. The reliability is improved due to elimination of a number of connections and contact.
The shaft plan drawing of observation elevator
Thank you for concertrate on OEC elevator , if you have any question please feel free to contact us !
Contact person: Sarah
Tel: 86-15899818873 0757-85409511
TGJ series passenger elevator configuration table (standard)
System
Components name/specification
Control system
Microcomputer control cabinet assembly
Computer integrated machine assembly
Inverter part
Master control CPU
DSP panel
Master contactor and Brake contactor
Traction machine
Permanent magnet synchronous traction machine
The rotary encoder
Door-motor system
Computer inverter door assembly
16 CPU
IPM power modules
Safety component
safety gear
Speed governor
Buffer: v>1m/s
Buffer: v<=1m/s
Door protection device (light curtain)
Car and hall
Car panel (1.5mm304 Hairline stainless steel+laminated glass)
Car panel (1.5mm304 Hairline stainless steel)
Landing door (first floor 1.5mm304 hairline stainless steel,other floor welded steel plate)
Small door 50mm (first floor 1.5mm304 hairline stainless steel,other floor welded steel plate)
Car operation panel(Multimedia LCD)
Outbound boxes (first floor blue LCD, other floors of red dot matrix scrolling display)
Shaft components
Elevator control cable
Elevator wire rope, wire rope governor
Elevator rail
Other components
Control cabinet/shaft connector
