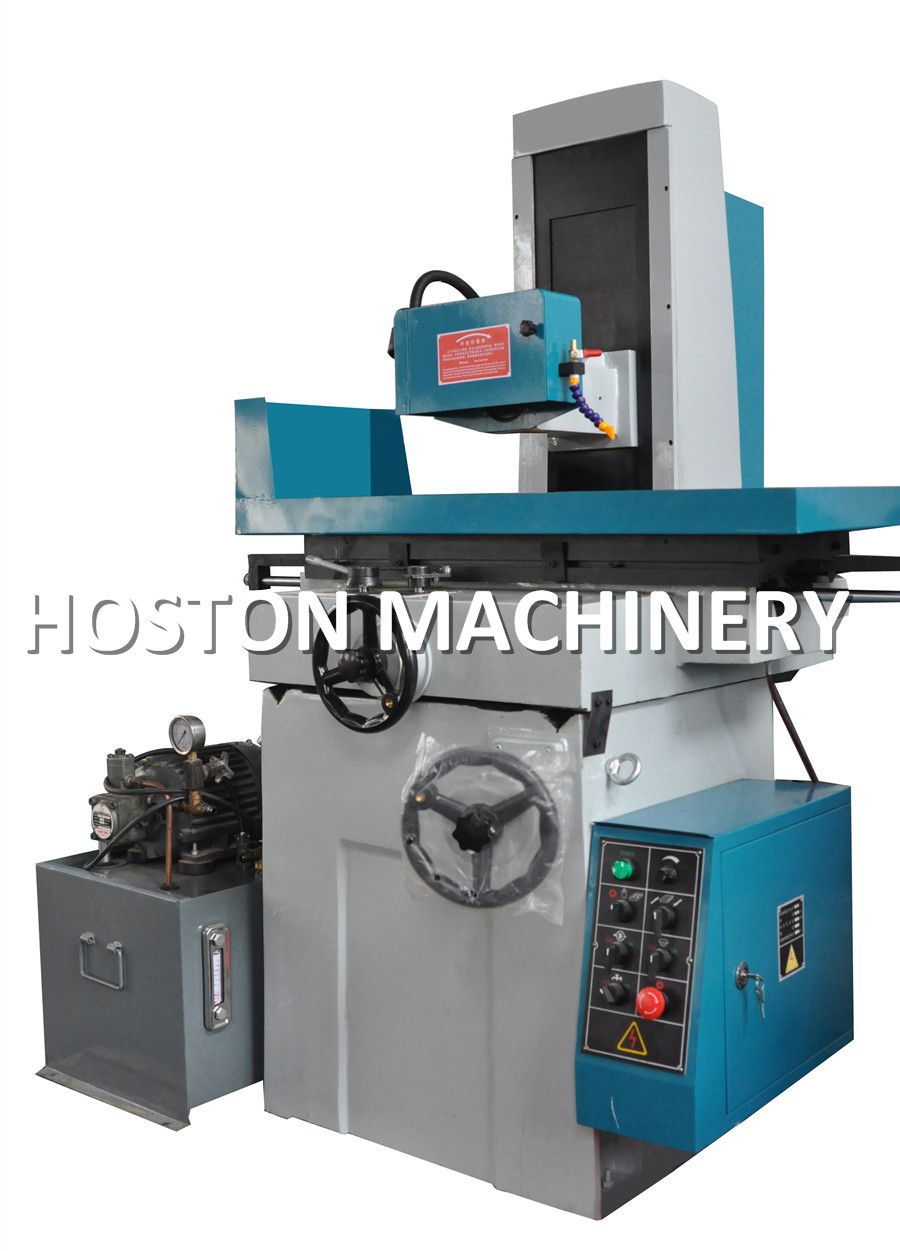

Small or Middle Size Hydraulic Surface Grinding Machine / Manual Surface Grinding Machine / Dynamical Surface Grinding Machine

Small or Middle Size Hydraulic Surface Grinding Machine / Manual Surface Grinding Machine / Dynamical Surface Grinding Machine
Supplier: Jiangsu Hoston Machine Tools Co., Ltd.
Price: US $ 1000-5000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: M(Y)250/KGS618/M618A/M(Y)820/MY3060/M7140/MD618
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Size (L*W): as Per Customer Demand
Max. Grinding Length: as Per Customer Demand
Max. Grinding Width: as Per Customer Demand
Max.Workpiece To Be Ground (L*W*H): as Per Customer Demand
Number Of T -Slot: as Per Different Model
Wheel Size (Dia*Width*Bore): as Per Different Model
Spindle Motor: as Per Different Model
Coolant Pump: as Per Different Model
Paraller Level: as Per Different Model
Automatic Grade: Automatic
Precision: High Precision
Type: Surface Grinding Machine
Controlling Mode: Artificial or CNC Can Be Optional
Condition: New

Product Description

Small or Middle Size Hydraulic Surface Grinding Machine / Manual Surface Grinding Machine / Dynamical surface grinding Machine Main models of surface grinder: MY3060, MYS3060, M7140, MY3270, MY250, MYS250, MY820, MYS820, M820, MS820, MD618A, MSD618A, M618A, MS618A, KGS618 Introduction: Our company's surface grinding machine has the quality clearance of export sale and has passed through the international quality system. The products also have passed the national inspection of machine tool. Manual surface grinding machine, combining the technology and experience of Taiwan grinding machine, is our honorary product. The major products of our surface grinding machine are model M618A M820 M250 MY3060 and so on, which adopt the V-type guide, bring transmission by synchronous belt. Meanwhile, adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electro-maganetic chuck or the dense chuck of permanent magnetism and having the following features: operating simple and convenient, low noise, high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement and a long-life service, mostly suitable for applying to process various moulds and ceramics. Main technical parameters: (please feel free to contact us directly for most accurate information you need)
Manual  Surface  Grinder  M250
Technical  Parameters Unit M250 MS250
Max. workpiece  to  be  Ground  (L*W*H) mm 560*250*490 560*250*490
Max.   Grinding  Length mm 560 560
Max.   Grinding  width mm 250 250
Distance  From  Table  Surface  To  Spindle  Center mm 490 490
Slide  way   V-type  rail  with  Steel-ball V-type  rail  with  Steel-ball
V-type  rail  with  Steel-ball Kg 200 200
Table  Size  (L*W) mm 500*250 500*250
Number  of  T  -Slot mm*n 14*1 14*1
Speed  of  working  table m/min
Cross  Feed  On  Handwheel mm 0.02/Graduation
2.5/revolution		 0.02/Graduation
2.5/revolution
Vertical  Feed  On  Handwheel mm 0.01Graduation
1.25/revolution		 0.01Graduation
1.25/revolution
Wheel  Size
(dia*width*bore)		 mm 200*16*31.75 200*16*31.75
Spindle
speeds		 50HZ rpm 2850 2850

Spindle  Motor Kw 1.5 1.5
Coolant  Pump Kw 0.4 0.4
Paraller  Level mm 300: 0.005 300: 0.005
Machine  Size  (L*W*H) mm 1800*1400*1800 1800*1400*1800
Packing  Size  (L*W*H) mm 1960*1630*1870 1960*1630*1870
Cross/Net T 0.98/0.95 0.985/0.955
Hydraulic  Surface  Grinder  MY250
Technical  Parameters Unit MY250 MYS250
Max. workpiece  to  be  Ground  (L*W*H) mm 580*250*490 580*250*490
Max.   Grinding  Length mm 580 580
Max.   Grinding  width mm 250 250
Distance  From  Table  Surface  To  Spindle  Center mm 490 490
Slide  way   V-type  rail  with  Steel-ball V-type  rail  with  Steel-ball
V-type  rail  with  Steel-ball Kg 200 200
Table  Size  (L*W) mm 550*250 550*250
Number  of  T-Slot mm*n 14*1 14*1
Speed  of  working  table m/min 18-24 18-24
Cross  Feed  On  Handwheel mm 0.02/Graduation
2.5/revolution		 0.02/Graduation
2.5/revolution
Vertical  Feed  On  Handwheel mm 0.01Graduation
1.25/revolution		 0.01Graduation
1.25/revolution
Wheel  Size  (dia*width*bore) mm 200*16*31.75 250*16*31.75
Spindle  speeds 50HZ rpm 2850 2850
  0-6000 30-6000
Spindle  Motor Kw 1.5 1.5
Hydraulic  station  motor Kw 1.5 1.5
Working  Pressure Mpa 3 3
Max.   Capacity L/min 18 18
Minimum  of  Numerical L 80 80
Coolant  Pump Kw 0.4 0.4
Paraller  Level mm 300: 0.005 300: 0.005
Machine  Size  (L*W*H) mm 1680*1220*1720 1680*1220*1720
Packing  Size  (L*W*H) mm 1630*1290*1940 1630*1290*1940
Gross/Net T 1.0/0.9 1.0/0.9
Manual  High  Precision  Surface  Grinder  KGS-618
Technical  Parameters Unit KGS-618
  Table  Size  (L× W) mm 460× 150
Max.   Grinding    Length mm 480
Max.   Grinding    width mm 170
Distance  From  Table  Surface  To  Spindle  Center mm 410
Slide  way   A  V-type  and  a  flat-type  rail  with  Steel-ball
Max  loading  weight  on  Table Kg 150
Number  of  T-Slot mm× n 14× 1
Table  speed m/min
The  speed  for  rapid  up-down  grinding  head mm/min 2850/3600
Cross  Feed  On  Handwheel mm 0.02/Graduation
5/revolution
Vertical  Feed  On  Handwheel mm 0.001/Graduation
1/revolution
Wheel  Size  (dia× width× bore) mm 180× (3-13)× 31.75
Spindle  Speeds 50HZ rpm 2850
Spindle  Motor kw 1.5
Surface  Roughness μ m Ra0.63
Paraller  Level mm 300: 0.002
Machine  Size  (L× W× H) mm 1300× 1150× 1980
Cross/Net T 0.9/1.0
Hydraulic    surface    grinder    M3270AH
Model Unit M3270AH
  Table  Size  mm 700× 300
Max.   Longitudinal  travel  of  the  table mm 760× 320
Max.   Area  to  be  ground mm 760× 320
Max. distance  of  table  surface  to    spindle  center mm 540
Paraller  Level mm 300: 0.005
The  Speed  of  Longitudinal  travel m/min
Feed  of  Cross  Handwheel
  		per  revolution mm 2.5
0.02
per  graduation
The  Speed  of  Cross  travel
  		Off  and  on mm/min
Continual 50-500
Feed  of  Vertical  Handwheelt
  		per  revolution m 2
per  graduation 0.01
The  speed  of  Vertical  Travel mm/min 600
Wheel  Speed 50HZ 1450
Wheel  Size  WA46K5V   350× 30× 127
Power  of  Spindle  motor Kw 3.0
Hydraulic  station  motor Kw 3.5
Working  Pressure MPa 4
Max.   Runoff L/min 20
The  Capactity  of  Fuel  Tank L 100
Coolant  Pump W 40
Net  weight  of  Machine kg 1500
Gross  weight kg 1530
Machine  Size  M 1960× 1480× 1850
Packing  Size M 2000× 1640× 2020
Manual    surface    grinder    M7218
Technical  Parameters Unit M7218
Max. workpiece    to    be  Ground  (L× W× H) mm 500× 190× 335
Max.   Grinding    Length mm 500
Max.   Grinding    width mm 190
Distance    From    Table  Surface    To    Spindle    Center mm 335
Slide    way   V-type    rail    with  Steel-ball
V-type    rail    with    Stell-ball Kg 200
Table    Size    (L× W) mm 460× 180
Number    of    T  -Slot mm× n 14× 1
Speed  of  working  table m/min
Cross    Feed    On  Handwheel mm 0.02/Graduation
2.5/revolution
Vertical    Feed    On    Handwheel mm 0.01Graduation
1.25/revolution
Wheel    Size
(dia× width× bore)		 mm 180× 13× 31.75
Spindle  speeds 50HZ rpm 2850
Spindle    Motor Kw 1.1
Coolant  Pump Kw 0.4
Paraller    Level mm 300: 0.005
Machine    Size  (L× W× H) mm 1550× 1150× 1590
Packing    Size  (L× W× H) mm 1000× 1150× 1760
Cross\Net T 0.75\0.65
Dynamical  surface  grinder    MD618  MD820  MD250
Technical  Parameters Unit MD618 MD820 MD250
Max. workpiece    to    be  Ground  (L× W× H) mm 500× 190× 335 520× 220× 490 560× 250× 490
Max.   Grinding    Length mm 500 520 560
Max.   Grinding    width mm 190 220 250
Distance    From    Table  Surface    To    Spindle    Center mm 335 490 490
Slide    way   V-type    rail    with  Steel-ball V-type    rail    with  Steel-ball V-type    rail    with  Steel-ball
V-type    rail    with    Stell-ball Kg 200 200 200
Table    Size    (L× W) mm 460× 180 480× 200 500× 250
Number    of    T  -Slot mm× n 14× 1 14× 1 14× 1
Speed  of  working  table m/min 18-20 18-20
Cross    Feed    On  Handwheel mm 0.02/Graduation
2.5/revolution		 0.02/Graduation
2.5/revolution		 0.02/Graduation
2.5/revolution
Vertical    Feed    On    Handwheel mm 0.01Graduation
1.25/revolution		 0.01Graduation
1.25/revolution		 0.01Graduation
1.25/revolution
Wheel    Size
(dia× width× bore)		 mm 180× 13× 31.75 180× 13× 31.75 200× 16× 31.75
Spindle
speeds		 50HZ rpm 2850 2850 2850
  0-6000   30-6000
Spindle    Motor Kw 1.1 1.5 1.5
Coolant  Pump Kw 0.4 0.4 0.4
Paraller    Level mm 300: 0.005 300: 0.005 300: 0.005
Machine    Size  (L× W× H) mm 1550× 1060× 1590 1680× 1140× 1760 1800× 1400× 1800
Packing    Size  (L× W× H) mm 1060× 1170× 1870 1140× 1250× 1940 1960× 1630× 1870
Cross\Net T 0.75\0.65 0.81\0.71 0.98\0.95
JIANGSU HOSTON MACHINE Tools Co., Ltd. is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing and distributing of all types of metalworking machinery which including:

Hydraulic Ironworker

Mechanical Ironworker

Hydraulic Guillotine Shearing Machine

Hydraulic Swing Beam Shearing Machine

Mechanical Shearing Machine

Hydraulic Press Brake

Hydraulic Notching Machine

Hydraulic Punching Machine

Hydraulic Plate Rolling Machine

Hydraulic Band Saw Machine

Pipe Making Machine

Pipe Punching Machine

Pipe Cutting Machine

Pipe Bending Machine

Hydraulic Press Machine

3D Welding Machine

YAG Laser Cutting Machine

Fiber Laser Cutting Machine

Plasma Cutting Machine

Lathe Machine

Drilling Machine

Milling Machine

Surface Grinding Machine

We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support. We have HOSTON MACHINERY's team members that they are knowledge, experienced, diligent and creative. With our wide range of high quality products and better services.

HOSTON MACHINERY's warmly welcomes all traders to visit and cooperate. We look forward to all our customers supreme expectations in order to maintain our well standing reputation.

High Efficiency, Skillful Technology, Trustful Service.

"We do machines right.
