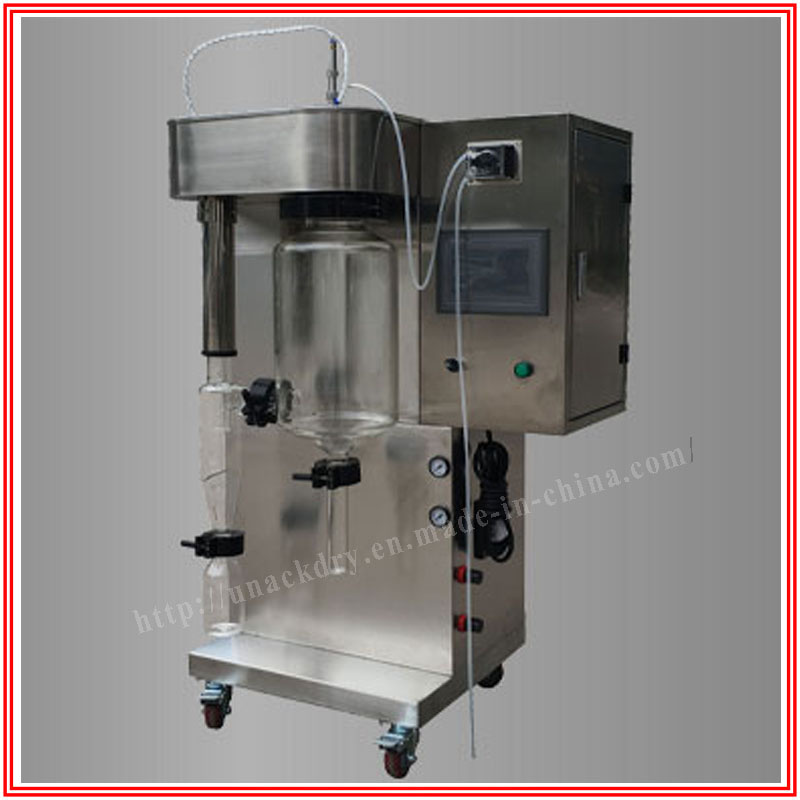

Small Pilot Spray Dryer for Laboratory Use
Product Specifications
| Prod Model: |
OM1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Pilot Spray Dryer |
| Use: |
Laboratory |
| Drying Method: |
Spray Drying |
| Heating Method: |
Electric Heating |
| Spray Dryer Control Method: |
Automatic Digital Control Panel |
| Spray Dryer Material Construction: |
Stainless Steel and Glass |
| Movable: |
Yes |
| Liquid Feed Method: |
Peristaltic Pump |
| Structure: |
Spraying Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Heating Mode: |
Transmission |
| Movement Way: |
Spraying |
Product Description
Name: Small lab spray dryer, mini spray dryer, movable pilot spray dryer
Description: OM1500 miniature laboratory spray dryer (device) is a Division I introduce and absorb advanced technology, manufacturing in the country; major components and electrical imports. Machine design compact, portable, self-contained body of the machine, power can be used without auxiliary facilities. PLC control, touch screen display, Chinese and English operation interface.
Details description:

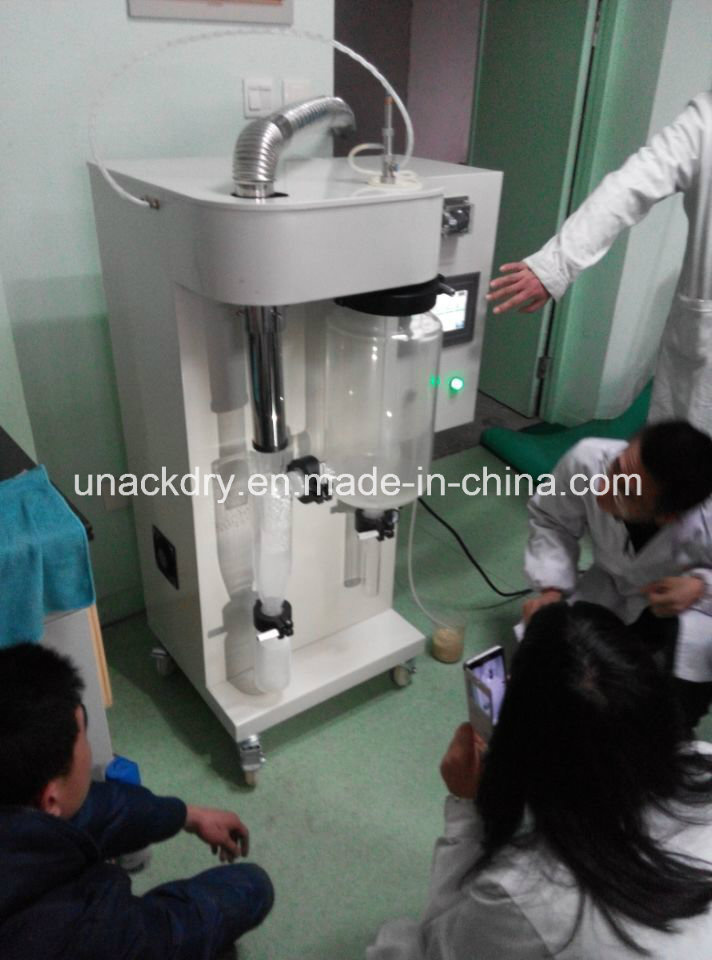

Experimental Spray Dryer Application: mainly used in universities, research institutes and food, biology, beverage, chemical, materials, pharmaceutical and other micro-enterprise development and production laboratories particles, such as the solution to all emulsions, suspensions with a wide spectrum applicability, suitable for drying heat-sensitive materials such as biological products, bio-pesticides, enzymes, etc., because the ejected material only when atomized particle size subjected to high temperatures, it is just an instant heat, can keep these active materials which remain after the drying of the active ingredient from damage.
Experimental Spray Dryer Application: beverages, perfumes and dyes, milk and egg products, plant and vegetable extracts, pharmaceutical synthesis, thermal plastic materials, polymers and resins, aromatics, blood products, ceramics and superconductors, Biochemistry products, dyes, soaps and detergents, food and adhesives, oxides, bone and tooth powder, and so on.
Technical parameters:
The maximum evaporation rate: 2000ML / H
Inlet temperature range: 30 ºC -280 ºC
Air temperature range: 30 ºC -140 ºC
Heating temperature accuracy: ± 1 ºC
Drying time :1.0-1 .5 S
Peristaltic pump feed range :50-2000ML / H
Dry air flow :0-5 .5M3/Min, maximum pressure 686Pa
Spraying gas flow :0-4 .2 M3 / H, spray pressure 2-8Bar
Spray System: with (0.5 - 2.5MM) of two-fluid nozzle
Ejector (Acupuncture) can be automatically adjusted between :0-20S
Spray / hot air flow: in the same direction, down
Heater power: 3KW 220V
Total power: 3.8KW 220V
Size: 1450MM × 650MM × 550MM (H × L × W)
Weight: 110KG | maximum evaporation rate | 2000L / H |
| nlet temperature range | 30 ºC -280 ºC |
| Air temperature range | 30 ºC -140 ºC |
| pump feed rang | 50-2000ML / H |
| hot air flow | same direction, down |
| Heater power | 3KW 220V |
| Dimension | 1450MM × 650MM × 550MM (H × L × W) |
| Weight | 110KG |
Changzhou Chuangke drying & granulation Equipment Co., Ltd is engaged in drying, granulating, grinding and mixing machinery research, development and manufacturing.
My company's absorption of foreign advanced technology and experience, in strict accordance with the national GMP requirements of the design, development, production, installation and service in one, but in strict accordance with the ISO9001 international quality system standards implementation, to ensure product quality. Constant innovation and transformation in the development of drying equipment, research, design and manufacture of a range of advanced technology and energy-efficient products. And in accordance with needs of the market developed over forty drying, granulation, mixing, dust series products are widely used in pharmaceutical, chemical, food, light industry products, industrial raw materials or dry desiccant, praised by users. Welcome customers with materials testing and inspection.
Our company is located in the beautiful city of Changzhou, 150km from Shanghai, with pleasant climate and convenient transportation. Our company has strong technical force, perfect testing systems, precision machining equipment and strict management system. We welcome new and old customers, friends from various circles at home and abroad to visit and join hands to create a better future!
