Product Specifications
| Prod Model: |
PZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Pz-3 |
| Output: |
3m3 Per Hour |
| Max. Conveying Distance: |
200m for Horizontal; 80m for Vertical |
Product Description
Product Description

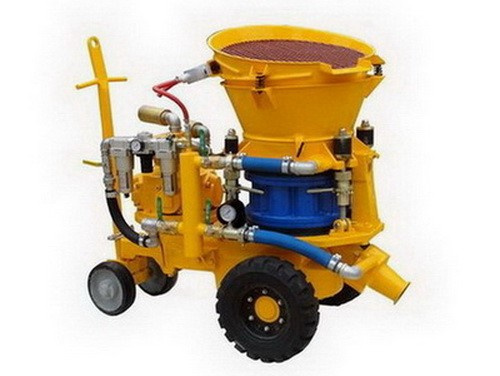

The DY-PZ-3 is a small-size gunite machine for the processing of dry or damp mix. The machine can be used thanks to its compact design and mobility where space is at a premium e. G. In mines and galleries. Other potential applications are slope and hillside protection, lining of water tanks and swimming pools, guniting for single and double shell tunnel construction, backfilling of tubing. It is available in the electric, air or diesel.
Dry or damp mix gunite machine;
Exported to Bahrain, Nepal, Malaysia, Philippines, Peru, South Africa, Australia etc.
|
Name |
DY-PZ-3 |
|
Output |
3m3/hour |
|
Max. Conveying Distance |
200mfor horizontal; 80m for vertical |
|
Water cement ratio |
below 0.4 |
|
Max. aggregate size |
10mm |
|
Hose inner size |
φ 42 or 50mm |
|
Operating air pressure |
5~6m3/min |
|
Motor power |
3kW (4hp) |
|
Basic chassis |
Tyre, skid or railway wheel |
Zhengzhou Dayu Machinery Co., Ltd. is a leading machinery supplier in China. With CE, ISO9001, GOST certificate.
Product scope including:
1. Road Marking Machinery
Thermoplastic paint road marking machine
Cold solvent paint airless road marking machine
Cold solvent paint air-auxiliary road marking machine
Two component paint road marking machine
Thermoplastic paint pre-heater
Road marking remover
Auxiliary road marking machinery
2. Concrete and Mortar Transportation Equipment
Concrete pump
Trailer concrete pump
Shotcrete machine
Plaster machine
Mortar pump
Grout pump
Mortar spraying machine
Grout mixer
We have dedicated in road marking machinery and construction machinery for many years. Our professional technology will provide turn-key solution for your industrial application.
