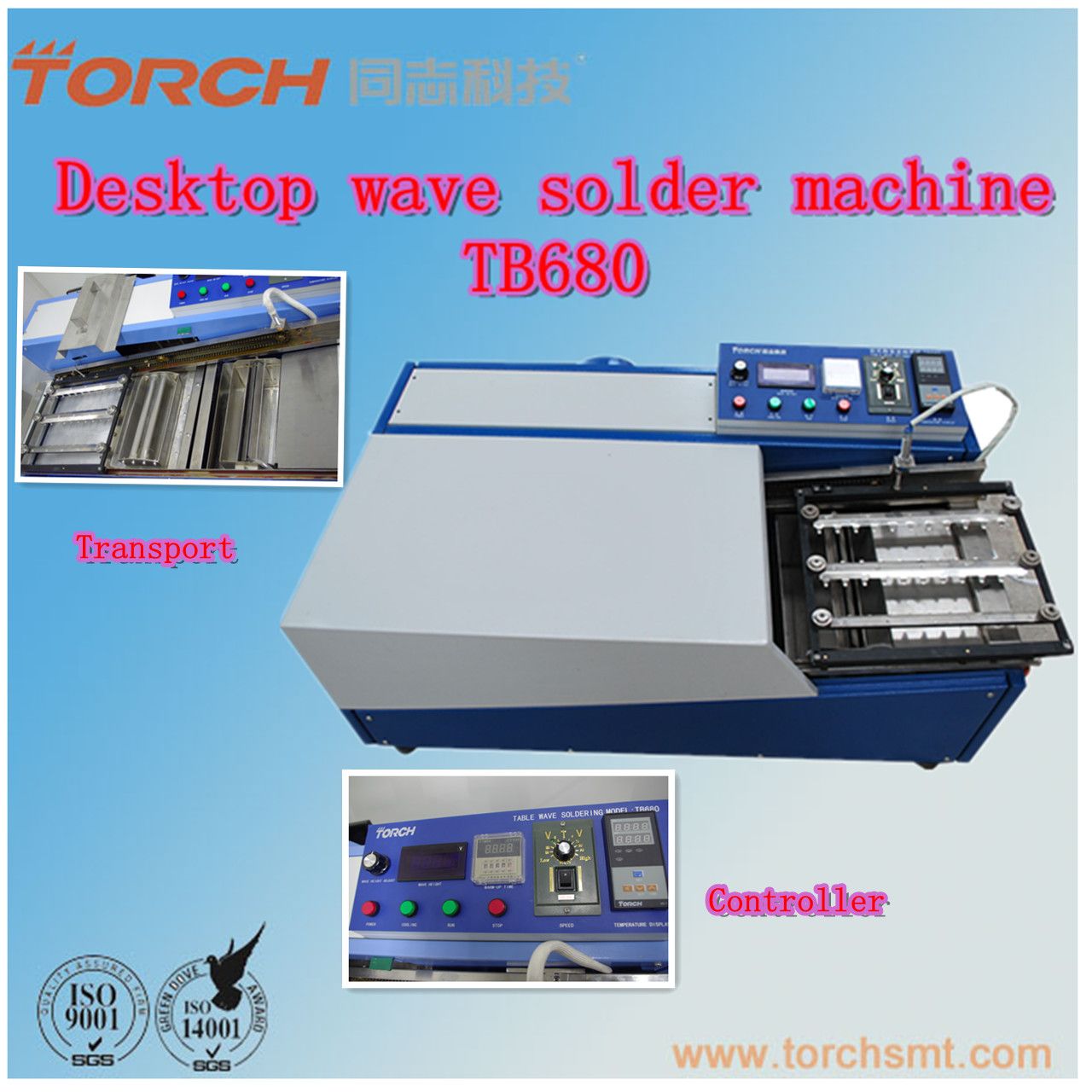

small wave solder machine for solder dip chip TB680
Introduction:
TB680 has been developed by Torch, aiming at the practical status of the current soldering technology inland. It occupies the vacancy of the small automatic wave soldering inland. It adapts to the research and production in research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. The whole machine is a desk-type. The reasonable frame takes up little room. It has complete functions and it is cheap, however energy-saving with high efficiency. Besides TB680 is easy to operate and reliable in soldering so that it could be widely used, especially suitable for small and middle amount of production. TB680 could be the best device to replace the soldering iron by hand and the dip-soldering with tin pan.
Compared with bigger ones, TB680consumes less energy. Quickly tin melting, easy to operate, simple to repair as well as maintain, automatic self-protection.
Electric control is designed assembled. The soldering tin temp, conveying speed, height of the crest, preheating time and so on can be all adjusted. Digital display for the temperature of the soldering tin. It is just an ideal device for producing small batch and developing new products.
Remark:
1. High agility: It is convenient for TB680 to control every soldering technical parameter and a high quality could be ensured.
2. Digital display of soldering temperature.
3. High reliability: High temperature sintering heating element make the machine perform steady and reliable.
4. Widely used: TB680 can replace brand iron soldering and soldering device in middle and little batch of production. It can satisfy every requirement of soldering production.
5. High efficiency: Productivity would be advanced.
6. Reasonable price, long life
7. Small size and power consumption. It meets the requirements for the production in the laboratory and factory.
Technical parameter for TB680:
Model TB680
The max power consumption 3Kw
Solder pot capacity 37Kg
PCB width (L× W)(mm) 200 X 270mm (Max)
Temperature range 200~300
Preheating temperature 90~130º C
Wave height adjust range 3~ 8mm
Melt time 60min
Spray work mode froth
Power supply 220v 50Hz
Conveyor speed 0.5~ 2m /min CTV
Dimension 840 X 540 X 380mm
Weight 70Kg
Beijing Torch Co., Ltd. Found in 2001, has strong force on R&D and manufacture of SMT and PCB equipments and Semiconductor production line.
Torch has unique understanding of SMT technology for long-term providing professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.
To meet the require of electronic environment protection in international market, we produce a series of lead free Reflow Oven, Wave Soldering from mini-type to large size type.
At present, we cooperates with Germany Termway Co. Ltd, produce a series of automatic high-speed mounter. Our product features as good quality, competitive price, easy to operate and energy saving. They enjoy great welcome in domestic and oversea market.
A lot of our products got the patents and our company passed ISO9001 and IQNET, CE certificates and we are SGS Audited Supplier.
Since found, we gained a good reputation and remarkable achievement from our customers, like Spaceflight, Aviation, Arms Force, Information industry, College, Scientific Research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone appliance. At present, our products are already sold in many countries such as USA, Brails, India, Japan, Australia, Mexico and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
