1.Front loaders
2.Joystick valve pilot control
3.Hydraulic machanical transmission
4.quick hitch, pallet fork
1. Hydraulic steering system makes the turning easier;
2. Frame style chassis structure, simple in structure and accessible in operation environment;
3. Front and rear frames use long span connecting structure for reducing the stress in hitch pin;
4. Anti-abrasion integral cutting edge with teeth and adapters, prolong the life of bucket;
5. Long wheelbase and centrally symmetrical structure make the front and rear tracks superposed on each other for extending the life of tire;
Features
1.The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.2. The wheel loader uses a central articulated frame and load sensing hydraulic steering gear. The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.

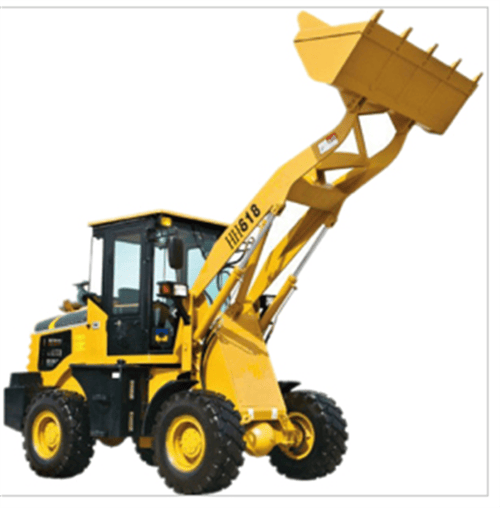

| Item | HH618 |
| Rate load(kg) | 1200 |
| Bucket capacity(m³) | 0.6 |
| Wheel distance(mm) | 1480 |
| Axle-base(mm) | 2070 |
| Loader clearance radius(mm) | 4532/4332 |
| Min base to the ground(mm) | 270 |
| Dump clearanle(mm) | 3180 |
| distance acc.to the height(mm) | 910 |
| Time of raise(s) | 4.75 |
| Hydraylic cycle time(s) | 7.57 |
| Turns to pick the strength most greatly(KN) | 40.9 |
| Drive mode | Four-wheel drive |
| Operating weight(kg) | 3916 |
| (mm)Overall dimensions (Length*width*height) | 5280*1870*2370 |
| Engine Model | ZH4100Y4 |
| Engine Rated poweer(kw) | 44 |
| horsepower(hp) | 59.5 |
| Engine rated output(rpm) | 2200 |
