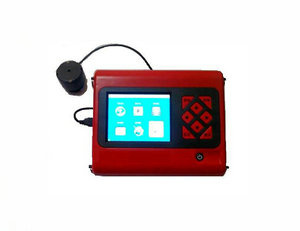

Smart Crack Width Tester

Product Specifications

Prod Model:	SYF61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	0~8mm
Measurement Accuracy:	0.01mm
Storage Capacity:	100,000 Cracks Measuring Points
Host Size:	85mm*168mm*208mm;

Product Description

Purpose
SYF61 Smart crack width detector uses the new generation of ARM-speed processing platform to test the surface crack width of different materials (such as concrete structures). It is one smart nondestructive testing equipment for testing, storage, and transmission.

Performance
1. Large screen display. 5 "color LCD display with a resolution of 640 * 480
2. Automatic interpretation. The real-time detection of crack width crack width and automatic interpretation;
3. Variety of interpreting manner. In addition to the automatic interpretation, but also manual interpretation crack width values, move the cursor manually defined crack boundary, scale ruler is displayed on the screen, showing the crack width values;
4. The ease of data transmission. The instrument can be directly connected to the computer, a copy of the pictures and data transmission without U disk;
5. Powerful machine outside the data analysis and processing software. Crack image re-interpretation, analytical processing cracks data, the output image files and EXCEL statements, print image;

Technical Data
1. Crack width value of the measuring range: 0~8mm
2. Measurement accuracy: 0.01mm
3. Storage capacity: 100,000 cracks measuring points can be stored image and width data
4. Built-in rechargeable lithium battery, can work for 8 hours
5. Operating Temperature: -10C ~ +50C
6. Host size: 85mm*168mm*208mm;
7. Weight: 960g;
