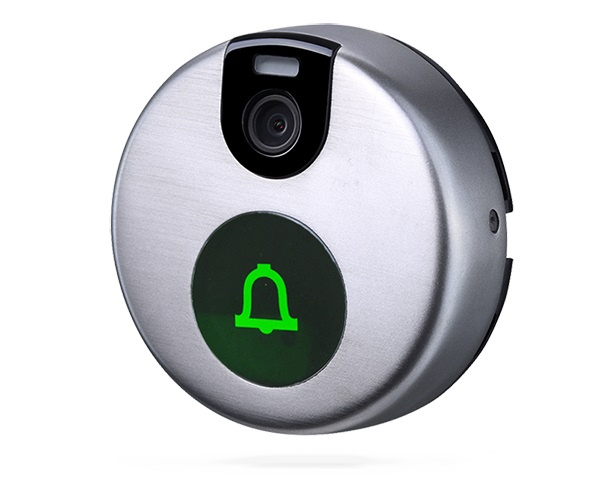

Smart Doorbell with Mobile Phone Remotely Control

Product Specifications

Prod Model:	ZM009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply:	DC12V/ 1000mA
Power Waster:	<3W
Diameter:	67.5mm
Thickness:	20.5mm
Gross Weight:	420g

Product Description

1. Basic information

Power Supply	DC12V/ 1000mA
Power Waste	<3W
Working Temperature	-20ºC-65ºC
Diameter	67.5mm(Circular)
Thickness	20.5mm
Packing Size	L*W*H  144mm*86mm*69mm
Gross Weight	420g
Image Maximum Resolution	1280*800

2.Tech Parameters

OS Platform	Imager Sensor
Android/IOS(iphone, ipad, iwatch)/ Windows(internet Explorer)	1/4" CMOS Sensor FOV/130ºC wide-angle lens(4 Glass)
Video Compression	Streams
H.264, M-JPEG	2 Streams with H.264/M-JPEG
Resolution	OSD
1280(H)x720(v),D1,CIF, QCIF/1-30/256Kbps-8Mbp	Supports English character, channel name, date and time super position The overlay position adjustable
Voice Intercom	Audio Compression Algorithm
Two-way Voice Intercom Speaker:90-96dB	Gg.726,acSPEEX
Networking Protocol	Storage
P2P,HTTP,RTSP,UDP,NTP,SMTP,DHCP,DDNS, PPPoE, TP,APN,MQTT	FTP/Email Remote Storage Phone Remote Storage TF Card Storage
Access Protocol	Alarm handling
WEB,SDK,API,ONVIF2.2,2P2	Record Upload, Action with Alarm, mail Push, phone Push

Items	Qty	Items	Qty	Items	Qty
Main unit of doorbell	1	12Vpower adapter	1	Stoppers	5
Music box of doorbell	1	Splitter power cord	1	Terminals	6
Waterproof gasket	1	Tamper fixing screw	1
Use instructions	1	The screws on the wall	5

4. More information
Color: all accepted
Logo charge:   FREE(MOQ>=500)
Packaging:  1pc smartbell&1 pcs adapt  / paper box

EXW:     $55.6
MOQ:      50
Payment terms:    T/T(with 30% deposit); L/C at sight
Loading port:      Shenzhen
Sample lead time:   1-3 days
Order lead time:    3-25days
