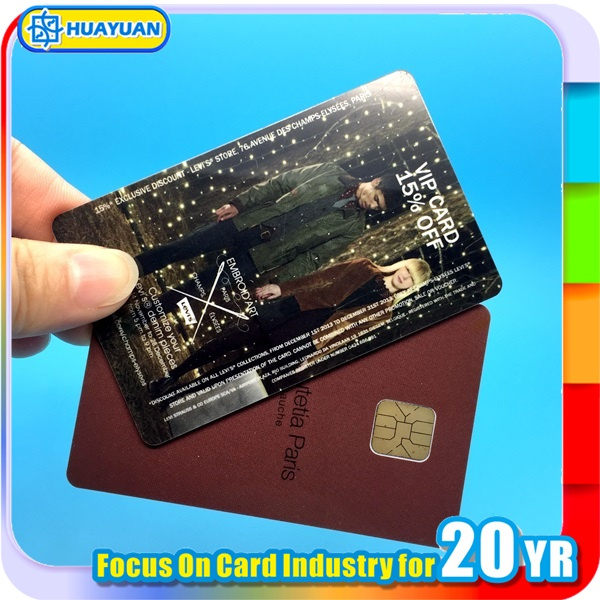

Smart RFID Sle5542 Contact Hotel Key Card for Access Control
Product Specifications
| Prod Model: |
Hotel key Card |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IC Card Memory: |
Intelligent 256-Byte Eeprom / 1024-Byte Eeprom |
| Data Storage Time: |
Minimum of 10 Years |
| Dimensions: |
Cr80 86X54mm, or Customized |
| Card Surface: |
Matte/ Gloss Finish |
| Chip IC: |
Sle5542, Sle5528, Bl7442, Bl7428, etc |
| Housing: |
Lamination |
| Option: |
Magnetic Stripe, Barcode, Encoding, etc |
| Sample: |
Free |
| Delivery Time: |
7-12days |
| Certification: |
Rosh,CE |
| Function: |
Information |
| Type: |
Contact |
| Material: |
PVC |
| Structure: |
Contact IC Card |
| Usage: |
Hotel Door Lock |
| Carrier Frequency: |
Lf/Hf/UHF |
Product Description
SLE5542 Memory Card Key Features:
- Card dimensions: 86 x 54mm
- Thickness: 0.84mm
- Material: PVC, PET
- Surface: lamination (gloss/mate)
- Chip: SLE5542 (Infineon)
- Data storage time: minimum 10 years
- Operating temperature: -20 to +60°C
- Stockage temperature: -20 to +65°C
- Package: 200pcs per Inner Box; 5000pcs per Carton, each Carton gross weight is 35kgs
The SLE5542 has an intelligent 256 bytes with Write Protection and Programmable Security Code (PSC) and with ISO 7816 smart card interface.
The SLE5542 is a standard, low-cost memory smartcard. It has a 256 x 8 bit EEPROM data memory with 32 x 1 bit protection memory. The SLE5542 is a fully compatible, upgraded version of the SLE4442.
We supply blank SLE5542 cards and SLE5542 pre-printed card.
Description :
- Intelligent 256-Bytes EEPROM
- Write-protect function
- Programmable Security Code verification logic
- Intelligent 256-Bytes EEPROM
- EEPROM is organized 256 x 8 bit offering the possibility of programmable write protection for each byte
- Data can only be changed after entry of the correct 3-byte programmable security (security memory)
Applications:
- Access control
- Staff attendance
- Transport payment
- Personal identification
Printing optional:
Printing:
- Logo/Graphics/Photo
- Serial Number
- DOD Number
- Barcode printing
- Overlay Foil
- Signature Panel
- Name Personalisation
- Photo Personalisation
Magstripe:
- LoCo300
- HiCo2750
- Magstripe Encoding
Various:
- Hologram
- Security Printing
- Chip Encoding
SLE5528/SLE5542 IC Feature
| - SLE5542 Intelligent 256-Byte EEPROM(compatible FM4442/BL7442)
- SLE5528 Intelligent 1K-Byte EEPROM(compatible FM4428/BL7428)
- Write Protection function on unique manufacturer code to identification of application. - Programmable Security Code - EEPROM Endurance minimum 100,000 erase / write cycles - Minimum of 10 years data storage time - Contact configuration and serial interface in accordance to ISO standard 7816
|
SLE5528/SLE5542 Card Key Feature
| - Dimensions: CR80 85.60 x 53.98mm - Thickness: 0.84mm - Material: PVC, PET - Card Surface: Matte/ gloss finish - Housing: Lamination - Operating Temperature: -20 to +60°C - Storage Temperature: -20 to +65°C
|
Printing Option
| - Full color offset printing
- Silk-screen printing
- Silver/Gold silk-screen printing background
|
Additional crafts
| - Magnetic Stripe Option: 300oe, 2750oe, 4000oe - Numbering - Barcode printing - Signature panel
|
Application
| - hotel key card, membership management
|
Related products
| - SLE5542 card, AT24C series card, AT88 SC102 card
|
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
