Smartphone Supported Two Way Audio Home IP Video Doorbell Systems

Product Specifications

Prod Model:	DS03M(P)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vandal Proof Water Proof High Quality:	IR Above 10meters
Certification:	CCC
HDMI Format:	720P
Effective Distance:	10-30m
Sensor Size:	1/3 inch
Remote Control:	Without Remote Control
Type:	IP Camera
Sensor:	CCD
Feature:	Vandal-proof
Technology:	Infrared
Kind:	Manual Focus Lens
Horizontal Resolution:	650tvl
Style:	Unique One

Product Description

General characteristics
Sensor	Color, 1/3 '' SONY 960H CCD, DSP Effio-E, Day / Night
Sensitivity	0.1 lux (day) / 0.01 (Night) 0 Lux (with incl. Backlight)
Resolution	650 TV lines (horizontal), 976*582 (effective pixels)
	Black Light Compensation,3D noise reduction
DWDR	Digital Wide Dynamic Range(DWDR)
Video
Compression Format	H.264 MP, Motion JPEG
Stream Video	Dual encoding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Resolution	960x576, 720x576 (Full D1), 704x576 (D1), 704x288 (2CIF),
	352x288 (CIF), 176x144 (QCIF)
Frame rate	Up to 25 / s for all resolutions (H.264)
Audio
Compression	G.711 (u-law, a-law), G.726
Additionally	Two-way audio channel
Network and interfaces
Network interface	10Base-T / 100Base-TX Ethernet port
Network Protocols	TCP, HTTP, FTP, SMTP, DNS, DHCP, PPPoE, POP3, RTP, RTSP, UDP, NTP, ARP
IR illumination
LEDs	IR LED Lattice-type (1 pc.)
Illumination Level	Automatically adjustable
Range	10 meters
Operation
PoE	PoE IEEE 802.3 AF
Operating temperature range	- 40 To + 50ºC
Ingress Protection	IP65 , Metal coated with a corrosion-resistant polyester powder paint
Dimensions (WxHxD)	73*166*51 mm
Management	Professional Software Intercom (included)

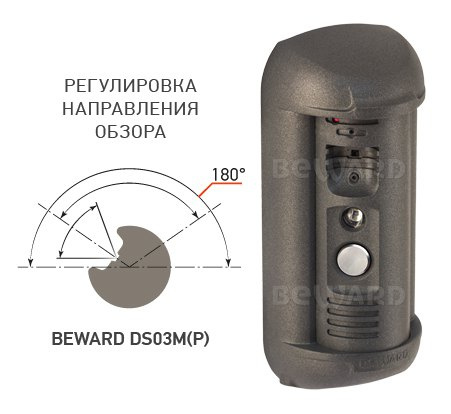

	Field of View Adjustment: rotatable body
Components
Scope of delivery	Outside panel
	Switching box
	CD (with software and documentation)
	Package

Smartphone supported Two way Audio Home IPVideo doorbell Systems
Features :
1, High resolution : 960x576 pixels
2, Image sensor SONY CCD DSP Effio-E
3, Exceptional light sensitivity ; 0.005lx ,day/night
4, High-efficiency IR-illumination with automatially
5, adjustable illumination level
6, Back light compensation ,3D noise reduction
7, Digital wide dynamic Range (DWDR)
8, Field of view adjustment :rotatable body
9, Vandal resistant : metal body ,hidden fixing
10, Automatic recording by motion detection
11, Video recording by pressing the call button
12, Wide range of locks support ip_intercom_application
13, Outdoor ,+40..+50
14, Power :12V DC or POE (DS03MP)
