Product Specifications
| Prod Model: |
331K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Core: |
Shield |
| Type: |
Choke Inductor |
| Structure: |
Inductive Choke |
Product Description

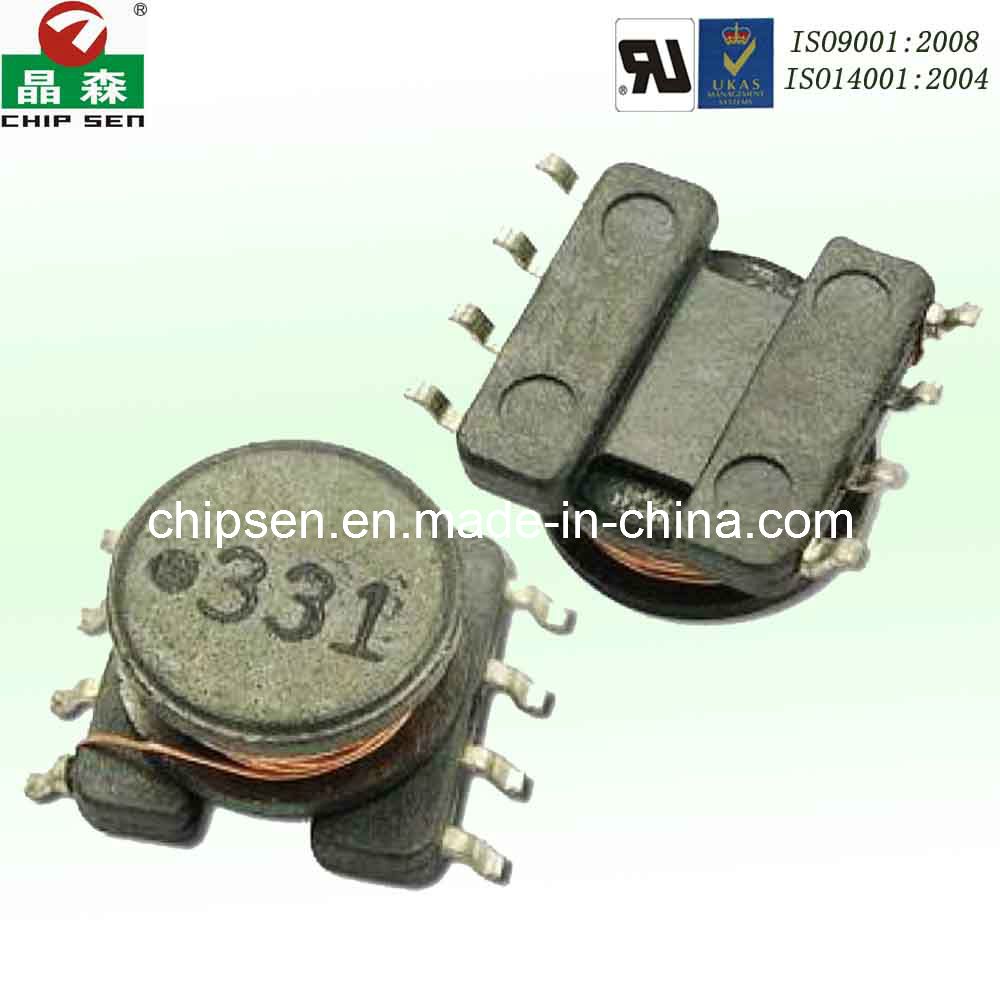

SMD Toroidal Power Inductor and Choke Coils with Inductance Ranging from 1 to 1, 200uH
Key Specifications/Special Features:
Low profile: Up to 1.0mm maximum height chip inductor
Low DCR chip inductor
Large-current chip inductor
Magnetically shield chip inductor
Shielded SMD power chip inductor
For high current and very low DCR
Reflow and hand soldering are available
Good solder fillets and character prevents damage during soldering reflow
Applications:
Notebook computer
Battery power equipment
DC/DC converter
Digital camera and scanner
CD-ROM/DVD and PDA
Tested at 100kHz, 0.1 Vrms, inductance: UH 20% (M)
DC current at which the inductance drops 10% (type) from its value without current
Operating temperature: Range -40 to 105 degrees Celsius
Electrical characteristics at 25 degrees Celsius
Equivalent to coil and Toko, Sumida, TDK and Murata brands
Why Choose us?
1. High quality and best services.
2. We have RoHS and REACH certification.
3. Our Products has the UL Insulation System.
4. Our company has pass the ISO9001: 2008 and ISO 14001: 2004
Note:
1. MOQ: 1000PCS
2. Delivery time: 7-10days or as per customer's quantity
3. Payment terms: 50% deposit of total amount in advance and the rest after seeing B/L, T/T.
4. Samples is free, but the fee of freight must be paid by recipient
5. Port: Shenzhen
6. Package: As per customer's requirements
We will feel appreciated if you can provide the parameters of the product or the photo of the item.
All products of the size, electrical performance can be designed
According to customer requirements in R&D.
Don't hesitate to contact us if any interesting in our products.
Dongguan Chipsen Electronics Technology Co., Ltd. is a high-tech enterprise specialized in the design, production and export of high quality electronic components with 15 years experience.
Our products include: electronic transformers, inductors, coils and switches, which are widely used in personal computers, digital cameras, high power LEDs and a wide range of electronics and equipment.
Covering an area of 7, 000 square meters and with more than 300 employees, we could produce 600, 000 pieces every month. At present, above 80 percent of our products exported abroad.
Manufactured under strict quality control, our products passed RoSH, SGS and UL certifications. Moreover we established a complete quality assurance system and certified ISO 9001: 2008/ISO 14001: 2004. To learn more, contact us now and you will receive a reply within 12 hours.
