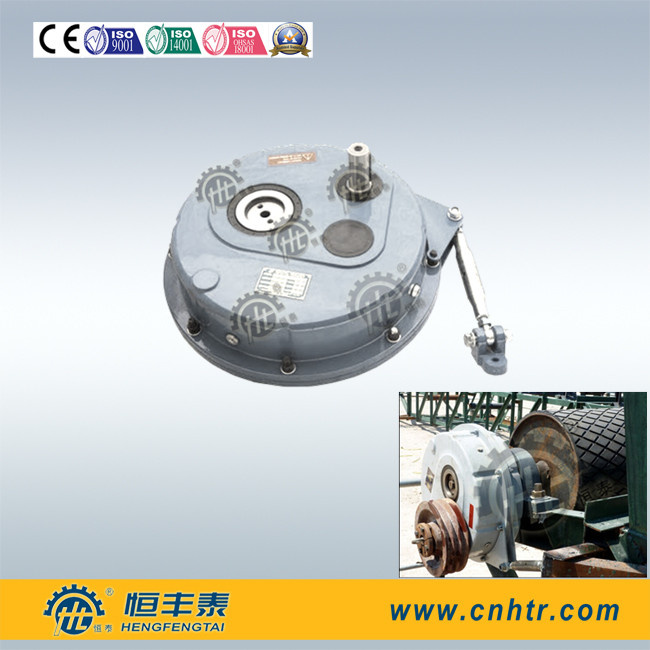

SMR Series Parallel Vertical Shaft Mounted Gearbox
Gearing Arrangement: Helical
Output Torque: 180Nm-17000 N. M
Rated Power: 0.92-226 KW
Input Speed: 500-1400 rpm
Output Speed: 15.1-280RPM
Place of Origin: Zhejiang, China (Mainland)
Model Number: HXG30-HXG125
Brand Name: HENGTAI
Color: According to customer
Ratio: 5-31
Mounting position: Shaft mounted
Material for box: Cast iron
Packing: Strong wooden cases for exporting
Output shaft: Hollow output shaft
Accessories: Backstop, Torque arm, etc
Output shaft diameter: 35-135MM
Product Description
Gearbox Housing: Hard Iron steel, can be used outside.
Anti run back device: Can meet any model, It's very convenient to be mounted.
HXG series shaft mounted gear reducers with hardened gears have high carrying capacity, smooth transmission, light weight, low energy consumption and so on characteristics, input shaft of reducer is connected with motor by belt pulley, output hollow shaft linked with a key. It could be instead of electric drum to be power source for a belt conveyors and lifting equipments. It is widely applied in the mining equipments, Concrete mixing batching plant, Stone Crushers, Sand making production line and other belt conveyor mechanical transmission areas.
Mechanical transmission fields
| Ratio | Input Speed (rpm) | Output Speed
(rpm) | Model | Rated output torque(Nm) | Rated input power(Kw) | Overhung loads
(N) |
| 15/1 | 1400 | 93 | HXG35-35D | 350 | 3.6 | 500 |
HXG40-40D
HXG40-45D | 750 | 7.7 | 850 |
HXG45-45D
HXG45-50D
HXG45-55D | 1200 | 12.3 | 1150 |
HXG50-50D
HXG50-55D
HXG50-60D | 1900 | 19.5 | 1700 |
HXG60-60D
HXG60-70D | 3200 | 33.0 | 2600 |
HXG70-70D
HXG70-85D | 4400 | 45.0 | 3400 |
HXG80-80D
HXG80-100D | 6100 | 63.0 | 4200 |
HXG100-100D
HXG100-125D | 9500 | 98.0 | 5000 |
HXG125-125D
HXG125-135D | 12500 | 128.0 | 5500 |
Hengfengtai Gearbox Reducer MFG Co., Ltd founded in 1991 with 400 employees occupy 50000square meters factory.
1. Company Profile
Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.
Turnover of last year: 60m USD
2. Technology
Hengfengtai is certified State High-tech Enterprise
Enterprise Technique Center of Zhejiang province
Applying ERP information management, CAD, PRO/E, UG, CFD etc advanced software are widely used in drawing craft, and PDM for technique files management to keep the designing safe, high efficiency and accuracy.
Good long-term relationship with Zhejiang University, Shenyang aluminum & magnesium Design Institute, and Zhengzhou Light Metal Research Institute etc.
3. Manufacture capacity
350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.
2 manufacture plants with area more than 50000 square meters.
More than 300sets of advanced imported equipments: German CNC, Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc.
4. Quality Control System
ISO 9001-2000 Certificate
ISO 14001 Certificate
GB/T 28000 Certificate
CMM Inspection on each batch of gears
Gear Inspection Center
Material Inspection Lab
Trial Run Inspection
Leakage Inspection
And etc
5. Marketing Network
10 offices and branches at home and abroad.
50 sales manager service for domestic and abroad market.
Depends on the quality products and reliable services, 10, 000 customers at home and abroad have approved Hengfengtai products and brand meaning, established steady foundation with 5000 strength-oriented enterprises, products have exported to at least 30 different countries in the world from Asia, Europe and Africa.
