Product Specifications
| Prod Model: |
YS-D331-X |
| Markets: |
North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe |
| Suitable For: |
Ab Glue, Red Glue, White Glue, Epoxy, Gel, Liquid |
| Working Area: |
300*300 |
| Suitable: |
Phone, iPhone, PCB, Platic, Sticker, MP3, Trays |
| Automatic Grade: |
Automatic |
| Gluing Mode: |
Wheel Gluing Machine |
| Driven Type: |
Electric |
| Packaging Material: |
Plastic |
| Glue Type: |
White Glue |
| Application: |
Apparel |
| Packaging Type: |
Wooden Case |
Product Description

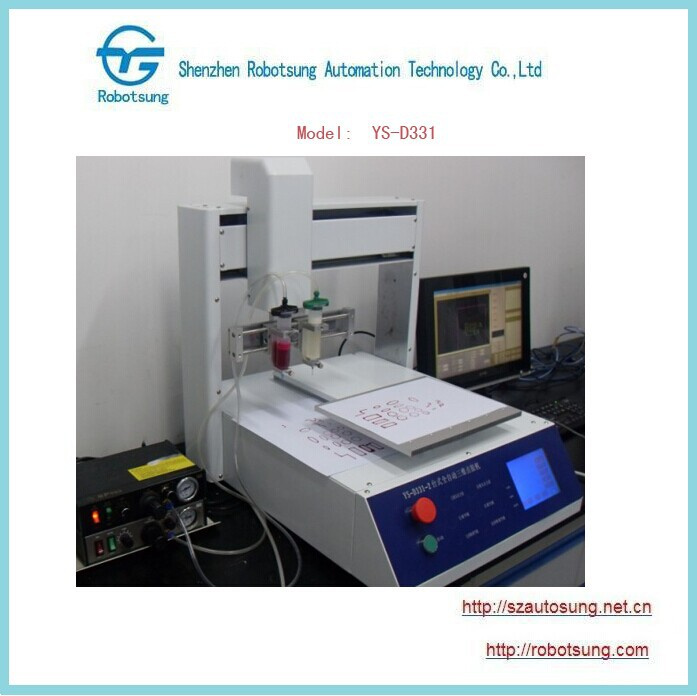

SMT dispensing machine
Suitable for:Silicone glue, UV glue, AB glue, EPOXY(black glue), COB black glue, white glue, EMI conductive glue,
epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,
transparent paint, etc.
Usage:
Can dot, draw lines, squares, circles and all kinds of irregular graphics on the surface, on the outside wall,
in the vertical plane and the gap of the products.
Application
1 Electro-acoustic industry: speakers, buzzers, audio, headphones
2 Inductance industries: small transformers, SMD transformers, relays, small coil motors
3 Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys
5 Switches, connectors, wire, plug cable
6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screen, etc.
7 Optics: optical lenses, optical head
8 Mechanical hardware, battery box, trademark, steam machinery spare parts
9 LED industries
Specification:
Model |
YS-D331-X |
Power |
220/110 V |
Voltage |
250W |
Working area(X*Y*Z) |
300*300*60 mm
Can be customized |
Speed |
Max. 500mm/sec |
Dispensing quantity |
Min. 0.001ml |
resolution |
0.01mm |
Repeatability |
+/-0.01mm |
Size(L*W*H) |
680*570*680 mm |
Weight |
80KG |
Features
1. Full automatic robot with 3 or 4 axes.
2. Dispensing path can be set in the robot or imported from out computer.
3. Easy operation, the holder and program easy to amend.
4. Can store multiple independent running programs.
5. High precision, the glue is well controlled.
6. Can configure multiple dispensing head.
7. Wide dispensing area which can set several products.
8. The working table can be customized on request
Shenzhen Robotsung Automation Technology Co., Ltd was incorporated in January 2001, now has offices in Shenzhen, Suzhou, Guangzhou, Chongqing and Qingdao, placed a leading role in China market for the automation equipment. Our products including: PCB cutting machine, SMD components counter, pipe cutting machine, dispenser and paste mixer.
Our company haS a team of experienced system engineers, advanced programmers, circuit designers, precision machinery designers, structural engineers and mechatronics engineers. They are engaged in researching and developing the software and hardware of industry control system, have committed to the development, production, sales and service of new automation system and automation equipment. Now we have made outstanding achievement in CNC technology, automation control, equipment intelligent, remote monitoring and industry data network development.
To ensure quality, we have more than 15 QC members to carry out strict inspection at each stage: Incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC). We have also introduced 10 sets of inspection machines, which allow us to make products that meet international standards.
Our products sell well in domestic and foreign markets, such as South and North America, Southeast Asia and MID East. If you are interested in our products pls don't hesitate to contact with us, we can provide you high quality products and high value-added service.
