SMT Production Line Reflow Sodering Machine T962A

Name: SMT Production Line Reflow Sodering Machine T962A
Brand: china-manufacturer-directory.com
SKU: 703019842
Availability: InStock
Rating: 4.3 (59 reviews)

Supplier:	Hangzhou Neoden Tech Co., Ltd.
Price:	US $ 550-590/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	T-962A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Reflow Soldering
Model:	T-962A
Heating Length:	960mm
Type:	Infrared and Hot Air
Power Supply:	380/220V
PCB Max Width:	300mm
Speed Of Conveyer Belt:	0-1600mm/Min
Heating Up Time:	About 8 Mins
Temperature Control Accuracy:	+/-3oc
Packing Size:	51X45X33cm

Product Description

T-962A reflow oven

Technical parameters:

Model	T-962A	Speed of conveyer belt	0-1600mm/min
The heating zone qty	upper 3/down 2	Power supply	380/220V
The length of heating zone	960mm	Putout power	1500w
The heating type	inteligent level sirocco and rapid infrared heating	Heating up time	about 8mins
The cooling zone qty	1	Temperature control range	room temperature~280ºC
Max. width of PCB board	300mm	Temperature control accuracy	+/-3ºC
Operation direction	left→right	Packing size	514533cm
Delivery options	net transmission+chain transmission	Weight	90kg

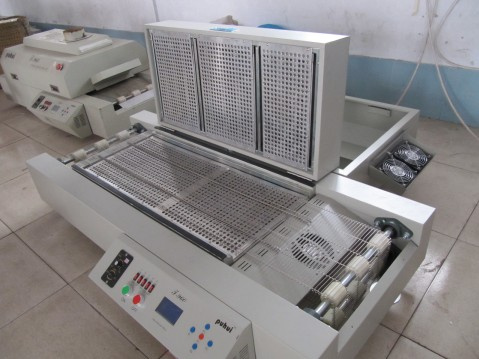

Below is another model of Reflow solder machine T-960:

Operating steps:

Enter into the setting interface when starts the machine. Press F2 button to select the wave, press F1 to select the point, press F3/F4 to set the corresponding temperature zone up and down, press F5 goes to the heating interface.
Five red switches separately control the upper 1/down 1/upper 2/upper 3/down 2 temperature zones.
When the temperature gets to balance, open the Motor switch and adjust the conveyor belt speed.
Press F2 stop heating, and enter into the setting interface.

We supply customer one stop solution for automatic placement :
stencil printer →pick and place machine→reflow soldering machine

printing speed	manual control
PCB size	250x300mm
PCB thickness	0-100mm
PCB tuning range	front/side +10mm
Positioning mode	outside or reference hole
Repeatability	+/-0.01mm
Platform height	180mm
Weight	14kg
Fine adjustment range	Z-axis:+/-45mm X-axis:+/-35mm Y-axis:+/-45mm
Platform size	300x400mm

Pick and place machine 3 series, a brief comparison below:

Series	Max mounting size	Max mounting speed	Max avilable height	Tape width	Feeder of tape qty	Feeders of IC support
TM220A	220*200mm	5000pcs/h	3.5mm	8/12/16mm	15	1
TM240A	360*400mm	7000pcs/h	3.5mm	8/12/16mm	27	1
TM245P-standard	370*450mm	10000pcs/h	5mm	8/12/16mm	27	10
TM245P-advanced	370*390mm	10000pcs/h	5mm	8/12/16/24mm	49	10

Shipping: by DHL safe and sound
Peak season: 3-5 days after payment received
Slack season: 1-3 days after payment received

Development:
Have built 7 overseas agents in Europe, South America and Asia. And 5000 stable users in more than 110 countries give us good feedback as machine's excellent work.

Welcome to contact us freely ~

Established in 2010, our company is a high-tech corporation locates in West Lake Science and Technology Zone, Hangzhou, China. We are a developer and a manufacturer in the electronic automation industry. Our primary product is a desktop automatic pick and place machine. In China, we are one of the leaders in this industry. Our machine runs a very stable platform while working with precision and high-speed. Our light weight body and user friendly interface has won high praise from our clients.

Our company is innovative in technology:

We are currently researching and developing pick and place machine with visual identification system, auto trail and a multi-function pick and place machine. We will meet and exceed every requirement our clients would request or need.

NeoDen TM220A and NeoDen TM240A are desktop automatic pick and place machines especially developed for research laboratories and small medium manufacturing enterprises to solve the problems of rising labor and equipment maintenance costs. However they are also suitable for the serious hobbyist. These automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes.

These machines are small, easy to program and operate. They have good mounting capability, high accuracy, reliability and excellent cost performance. You can rely on our machines to consistently produce high volume and stable quality products.
