Shenzhen ETA Electronic Equipment Co., Ltd. >> SMT Reflow Soldering Machine Eta E8

SMT Reflow Soldering Machine Eta E8

Name: SMT Reflow Soldering Machine Eta E8
Brand: China-Manufacturer-Directory.com
SKU: 713319705
Availability: InStock
Rating: 5 (129 reviews)

Supplier:	Shenzhen ETA Electronic Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ETA E8 SMT Reflow Soldering Machine
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey
Manufacturing Technology:	Optoelectronic Semiconductor
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	SMD

Product Description

Main product: Reflow Solder, Reflow Solder Machine, SMT Reflow Oven, Lead Free Reflow Oven, solder reflow oven, SMT reflow oven, solder reflow oven

Introduce:

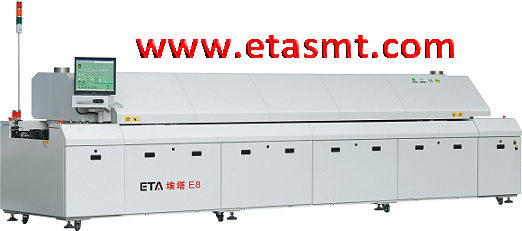

Lead-free hot air reflow oven ETA E8
Ø High-end reflow oven in China
Heating System
> Eight groups of top and bottom forced hot air convection heating zones.
> Patented heating plates in each zone uniformly transfer heat to the PCBs using forced hot air convection.
> Independent temperature control in each zone to ensure temperature uniformity within the process tunnel.
> Power consumption savings of 1/3 as compared to other systems.
> Patented motorized blower in each zone is designed to ensure stable air pressure, withstand high process temperature and is disturbance-free.
> Audible and light tower alarm for temperature limits, PCB drop, PCB jam and blower malfunction.
> Fast start-up (within 20 minutes) from room temperature to work temperature due to the high efficiency of the motorized heating plates.
Cooling System
> Two (2) groups of forced air convection cooling zones.
Distortion-free Conveyor System with Automated Chain Lubrication
> Combined pin chain rail and mesh belt conveyor system (Note: Mesh belt is not available on machines with center board support. )
> Closed-loop computer control of the conveyor provides a precise and repeatable reflow process.
> Automated chain lubrication system with a computer controlled central reservoir. Lubricant is added directly to the conveyor brush eliminating operator interface for this maintenance.
Fresh Air Recharge System
> Fresh air is supplied to each zone uniformly to provide a rapid process transfer.
Flux Management System
> Air amplifier forces supercharged flux collection and recirculation.
> Flux exhaust chimney with drawer shaped filter net is easy to access for maintenance.
Control System
> PC control system with windows based control software.
Additional Features
> Integrated UPS will be automatically activated in case of main power failure and will keep control PC and conveyor running for minimum 8 minutes to send out PCBs inside the oven tunnel.
> Motorized hood lift allows easy access to the inside of the oven for service and maintenance.
> Five (5) profiling ports and integrated profiling software are designed for convenient temperature profiling.
> Swing arm control PC station
> Four (4) emergency stop switches
> Two (2) exhaust ports
> SMEMA interface
> System documentation

Model	E8
GENERAL
Outside dimension	5140x1300x1580mm
Standard color	Computer grey
Weight	1800kg
Number of heating zones	Up8/bottm8
Lengthof heating zones	2900mm
Number of cooling zones	2(built-in)
Exhaust volume	10M3/minx2 Exhausts
Standard feature of control system
Electric supply required	3phase,380V 50/60Hz
Electric power required	64KW
Power for warm up	32KW
Power consumption	10KW
Heating pattern	Up& Bottom Hot air
Warming time	Approx.30minute
Temp. setting range	Room temp__300degree
Control system	PLC+ Computer
Temperature control method	PID close loop control +SSR driving
Temperature control precision	±1.0degree
Temperature deviation on PCB	±1.0degree
Data storage	Process data and status storage (80GB)
Abnormal alarm	Abnormal temperature(extra-high/extra-low temp)
Board dropped alarm	Tower light: yellow warming :Green-normal: Red-abnormal
Standard features of conveyor system
Max. width of PCB	Max:450mm(Standard)
Rail Number	1 Lane(standard)
Components clearance	Top/bottom clearance of PCB is 25mm
Conveyor height	Light →right(option: R→L)
PCB transmission agent	Air-reflow=chain +mesh (Standard)
Conveyor height	900/±20mm
Conveyor speed range	300~2000mm/min
Contact: Vivi Zhang

For SMT factory setup, we can do for you:

1. We provide fulL SMT solution for you

2. We provide core technology with our equipments

3. We provide the most professional tech service

4. We have wealthy experience on SMT factory setup

5. We can solve any question about SMT

Introduction

ETA is the leading SMT factory solution provider in China, offering professional SMT factory building advice and service. We have 20 year experience about SMT factories, offering full solutions for global clients with our great advantaged sources. Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development Currently ETA SMT equipment is representative of high quality, has maintained absolute leading technology in the industry.

Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard, the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle. ETA's continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.
