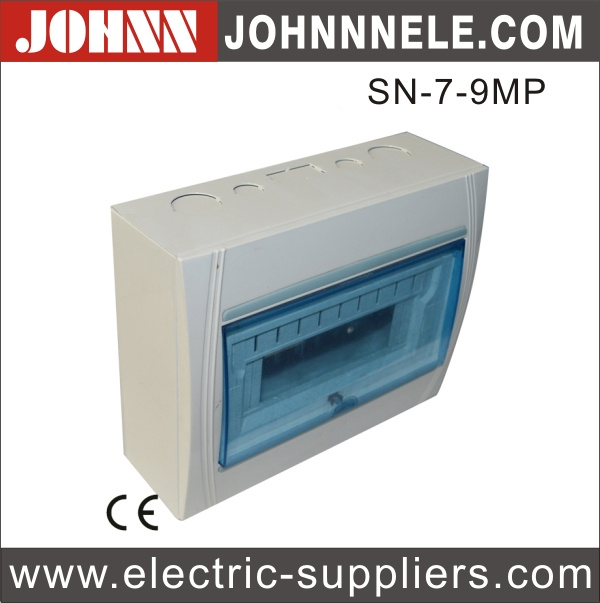

Sn Open Mounted Power Distribution Box
Product Specifications
| Prod Model: |
SN Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo or Shanghai |
| Frequency: |
50Hz |
| Rated Current: |
4A-32A |
| Rated Voltage: |
220V-380V |
| Poles: |
2p-28p |
| Material: |
Plastic,PC |
| Colour: |
White Color |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
Product Description
Detailed Information of SN Series Distribution Box

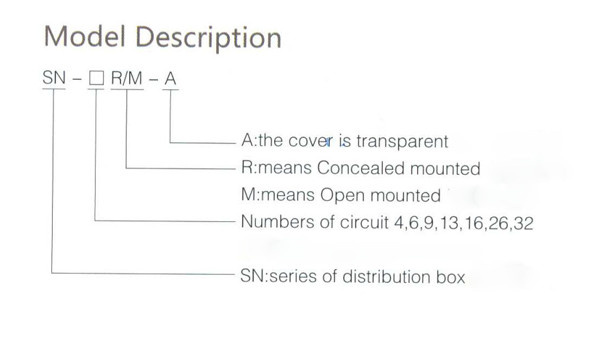

1.Model Number : SN
2. Colour : White Colour
3. HS Code : 8537109090
4. Samples : SN Series Distribution Box 's samples is available.
5. Feature :
* Design of super-large and clear luminous bars, soft and
elegant outline.
* Humanized circuitry symbols, printed display of control circuit
breaker, clear and elegant.
* The guide-rail shoe plate has round hole, it is able to regulate
the cover of distribution box to level position.
* Two terminals ( ground connection and zero connection ) in the box are easy for the user wiring and routing.
6. Delivery Time : Within 25 days after receipt deposit.
7. Delivery Methods : By Sea or By Air (Express DHL, FEDEX, TNT).
8. Payment Terms : L/C, T/T, Western Union, Money Gram; 30% deposit, balance see the copy of B/L by email or negotiation.

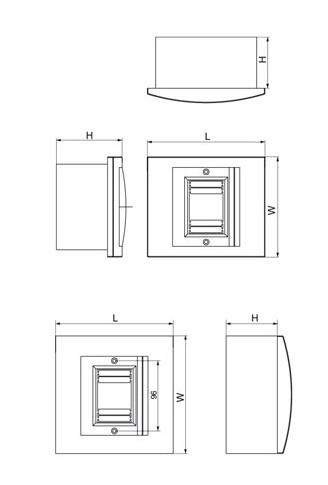

9. Unit Price : The price is negotiable.Specification of SN Series Distribution Box
|
Model Number |
L(mm) |
W(mm) |
H(mm) |
|
SN-2-4RA/MA |
137 |
161 |
82 |
|
SN-4-6RA/MA |
208 |
208 |
95 |
|
SN-7-9RA/MA |
261 |
208 |
95 |
|
SN-10-13RA/MA |
334 |
208 |
95 |
|
SN-14-16RA/MA |
390 |
208 |
95 |
|
SN-20-26RA/MA |
334 |
416 |
95 |
|
SN-28-32RA/MA |
390 |
416 |
95 |
|
ITEM NO |
QTY/CTN |
Package Size
(CM) |
GW
(KGS) |
NW
(KGS) |
|
SN-2-4RA/MA |
40 |
60 |
46 |
35 |
16.8 |
15.8 |
|
SN-4-6RA/MA |
20 |
51 |
44 |
44 |
17.6 |
16.6 |
|
SN-7-9RA/MA |
16 |
55 |
40 |
44 |
16.5 |
15.6 |
|
SN-10-13RA/MA |
16 |
52 |
35 |
44 |
12.5 |
11.5 |
|
SN-14-16RA/MA |
16 |
51 |
40 |
44 |
13.3 |
12.3 |
|
SN-20-26RA/MA |
5 |
52 |
35 |
44 |
12.5 |
11.5 |
|
SN-28-32RA/MA |
5 |
51 |
40 |
44 |
13.3 |
12.3 |
Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
