Product Specifications
| Prod Model: |
HT-6023 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electricity: |
220V/50Hz |
| Function: |
to Test The Galss of Helmet |
| Materials: |
Stainless Steel and Aluminum Alloy |
| Product Standard: |
Snell SA/K 2010 ,DOT218 ,As1698 etc |
| Impact Speed: |
140 to 170m/S Adjustable |
| Performance: |
High Accuracy Laser Velocimeter |
| Dimension Of Machine: |
170*60*140 |
| Product Electricity: |
220V/50Hz |
| Power: |
100W ( According Customers Requirement) |
| Type: |
Impact Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

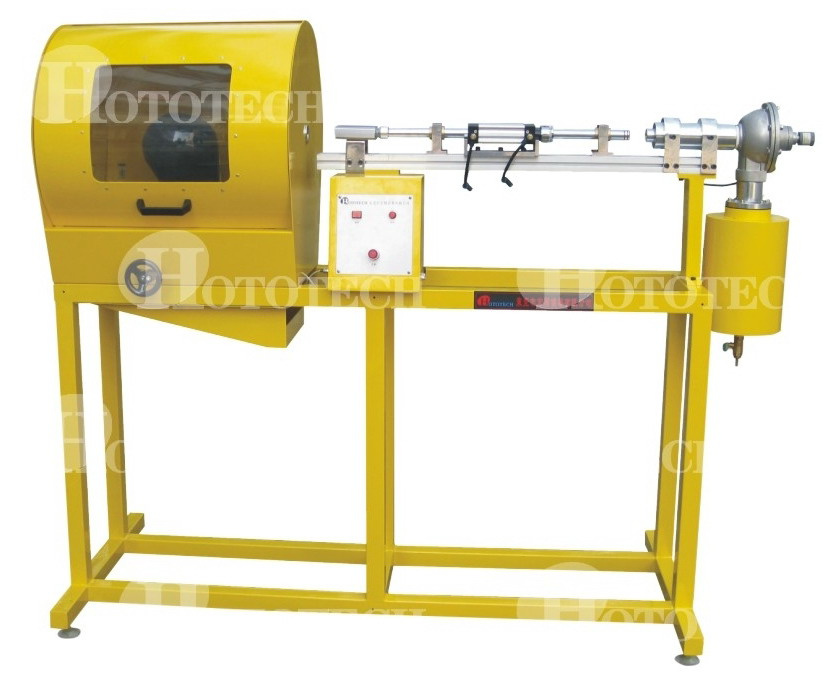

Projectile shooter
Function and feature
1, According to Chinese national standard GB 811-1998, SNELL SA/K 2010, DOT 218, AS1698 and other standard.
2, Lead pellet: 1g± 0.1g; 5.5mm± 0.1mm in diameter.
3, Impact speed: 140 to 170m/s adjustable.
4, Emergency stop system to ensure safety. LCD exhibits the shooting speed(m/s).
5, Adjustable head form holder to facilitate operation.
6, High accuracy laser velocimeter.
7, An air compressor provides compressed air, with an air entry outlet to speed up the lead pellet.
8, A safety warning bulb, the system will not turn to working condition when either the door or the air entry outlet is not closed.
9, The testing space is complete shut off, with only one viewing window to ensure safety.
10, Dimension of machine: 170cm× 60cm× 140cm.
11, Electricity: 220V/50Hz.
12, Power: 100W.
Company introduction:
Dongguan Hong Tu Instrument co., ltd specializes in developing and producing helmet testing machines, we have firm connections and full cooperation from China's National Third-party Quality inspection and Notarization Center on producing and developing high precision testing machines, according to ECE, EN, DOT, SNELL, GB, AS, JIS and other standards
Dongguan Hong Tu Instrument Information Co., Ltd., is specialized in developing and producing helmet impact testing machines. Hong Tu was initially founded in Taiwan area and built the first factory in Mainland China in 2004. We have firm connections and full cooperation with China's National Third-Party Quality Inspection and Notarization Center We producing and developing high-precision testing machines according to ECE, EN, DOT, SNELL, GB, AS, JIS and other standards.
Our main products include helmet testing instruments, safety helmet testing instruments, PV module testing machines, bags testing machines, furniture testing machines, universal material tensile testing machines, shoes leather machines, rubber plastic machines, paper packing machines and so on.
Qualification: We not only obtained ISO9001: 2008 approved in 2011, but also acquire several patents product certification, and obtains the title of honor "the Private Scientific and Technological Enterprise of Dongguan" in 2012.
We treasure the value of good quality, reasonable prices and efficient service with total customer satisfaction. We make ourselves expert in providing our customers with the best suitable testing designs and high quality testing machines to make you the utmost profits.
