Sns Active Protection Netting with Tecco

Name: Sns Active Protection Netting with Tecco
Brand: china-manufacturer-directory.com
SKU: 767214335
Availability: InStock
Rating: 4.5 (129 reviews)

Supplier:	HEBEI GABION HARDWARE AND MESH CO., LTD.
Price:	US $ 8.8-9.2/Square Meter
Min Order:	5000/Square Meter
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	W-TKW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Openg:	5cmx5cm
Size:	12mx16m
Name:	Tecco
Brand:	Peace
Material:	Stainless Steel Wire
Application:	Construction Wire Mesh
Hole Shape:	Diamond
Weave Technique:	Plain Weave
Surface Treatment:	Galvanized

Product Description

Product Description

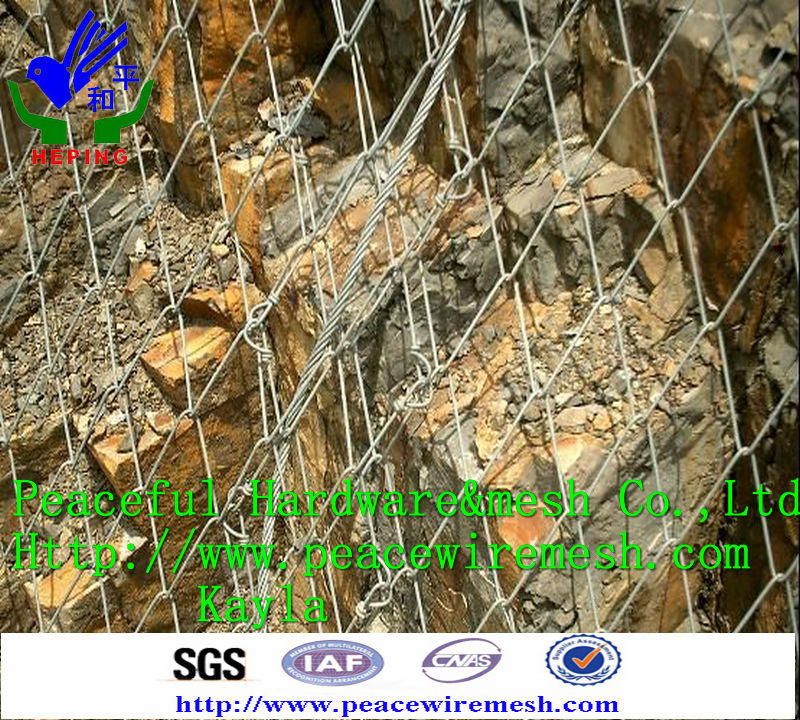

Slope Protection Netting With Diamond

Standard Specification:

Mesh shape: Diamond Material: High tensible carbon steel

Diamond wire rope net:

Rope wire diameter: 8mm Hole size: 200mm (+/- 5%) Roll size: 4m x 5m, etc.

Grid net:

Wire diameter: 2.0mm or 2.2mm Hole size: 50mm*50mm Roll size: 2m*20m

Anchors:

Steel Rope anchor diameter: 16mm Length: 2x2m

Rope:

Border rope diameter: 12mm or 16mm Seaming rope diameter: 8mm

Other Components: Steel Column, rope support base, vacuum ring

Applications:

Applicable to the construction of facilities near the buffer zone of lofty mountains and steep hills, the

Avalanche, slungshot, avalanche, debris flow interception in building facilities, avoid disaster on

Construction destruction.

Advantage:

1. The netting is clipped to the cable,

2. The mesh size and diameter can be modified

3. It can be made to customer orders and statically tested especially suitable for facades

4. High strength, strong toughness, free-angles curving and fold, easy for transportation and

Installment.

5. Anti-corrosive, resist the rust, can be repeated use.

6. Resists chewing by rodents and other pests (tensile strength approximately 100-110, 000 PSI)

7. This product can bear the heavy snow and the gale very much.

8. Without toxic material, safety, environmental protection.

Slope Stabilization Mesh System Component & Characteristic
Type	Mesh Type	Structure Configure	Function
GAR1 Common Simple Type	Steel Wire Netting	Edge Steel Wire Anchor Rope+ Support Rope t + Oversewed Rope(D0/08/300 Steel netting + Anchor Rope+ Horizontal Supported Rope	Protection, Restriction on the slope of rocks movement, Against the collapse
GAR2 Common Type	Steel Wire Netting	System Steel Anchor Rope+ Support Rope + Oversewed Rope,Concave Orifice+ Anchor fixed + Horizontal Support Rope (2-16)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8)	Slope Reinforcement,Protect from collapse and weathering.
GPS1 Common Use	Steel Wire Netting+ Steel Wire Grid	Same to GAR1+ Steel Wire Grid GAR1+SO/2.2/50 Iron Grid	Same To GAR1, When there are small rocks.
GPS2 Common Use	Steel Wire Netting+ Steel Wire Grid	Same To GAR2+Iron Grid + Fixed Anchor + Horizontal Support Rope2-16+ Steel Wire Netting(08/300/4*4+ SO/2.2/50 Steel Wire Grid +System Anchor	Same To GAR2, With small unstable rocks or terrene slope.
GER1	Steel Wire Grid	Same To GAR1, But Steel Wire Oversewed Along The Support Rope.	Same to GAR1, But the falling rock is small,mainly protect from broken rock falling.
GER2	Steel Wire Grid	Same To GAR2, But Steel Wire Oversewed Along The Support Rope.	Same To GAR2,But the fall rock is small.
GTC-65A	High-Strength Steel Wire Grid	Prestressed Reinforcing Steel Bar+ Concave Orifice + Oversew Rope	Same To GPS2,Guaranteed more than 100 years, but it is not suitable that the vol. of fall-rock is bigger than 1 m³.
GTC-65B	High-Strength Grid	Reinforcing Steel Bar Anchor Rope	Same To GAR1, Guaranteed more than 100 years,But it is not sui t able that the Vol. Of fall rock is bigger than 1m³.
MG-GPS2	Steel Wire Netting+Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope	Same To GPS2, Steel Wire Grid+ Strongly F ixed Slope Reinforcing Steel Bar Anchor Rope + Horizontal Support Rope (16/12)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8)+SO/2.2/50 Iron Wire Grid + System Anchor fixing	Slope Reinforcement,Protect from collapse and weathering, Restrict the coast and local fall rock.It can be used for small unsafe rock or soil or soil mixed rock.
MG-GPS2-L	Same to MG-GPS2	Same To MG-GPS2+Landscaping of Slope
