Product Specifications
Product Description

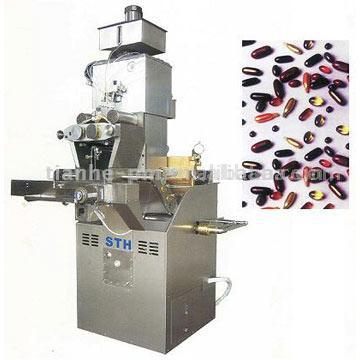

The RGY 12 * 25S is a well designed cooled rotary die encapsulator, comprised of
An injector, spreading chamber and die to form all kinds of oil and liquid into
Forms for pharmaceutical, food and cosmetic use.
Features:
1) Well designed cooled rotary die encapsulator, comprised of an injector, spreading chamber and die to form all kinds of oil and liquid into forms for pharmaceutical, food and cosmetic fields.
2) Variable-frequency stepless speed regulating high-precision temperature
control instruments, high-power water chilling unit and liquid gelatin level conveying and heat insulating barrel are adopted, resulting in high production efficiency, Low energy consumption and steady and reliable quality.
3) The machine conforms to the GMP standard and has reached the advanced level of similar products around the world.
Mail technical specifications
1) Stepless speed regulation: 0-5rpm
2) Rated rotation speed: 3.5rpm
3) Die dimension: 103 x 180mm
4) Material supplied: 2.5ml
5) Dosage filling tolerance: Up and down2%
6) Motor: 1.5kW 380V, 1, 400rpm
7) Electric heater: 200W x 6 stick, 220V
8) Electric heater sleeve: 55W x 6 stick 220V
9) Overall dimensions: 1, 000 x 1, 100 x 1, 900mm
10) Weight: 950kg
Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. Has made elaborate designs and products, on the basis of absorbing features and advantages of similar products both at home and combing with national GMP standard., Product pass CE and ISO9001 certificate, with high quality and good reputation.
We have successfully developed the brand of TDP, DP, THP, ZP, ZPW series tablet presses; CFQ, CXJ, TSG, QVC series assistant machine of tablet presses; CH, V, HD series mixers; YK, ZL, LG, HLSG series granulators; GF, Dl, CW series crushers; RXH series drying machines; BY series sugarcoating machines; ZLK series high speed granulator and various dies, which are suitable for pharmaceutical, food, chemical, electronics and metallurgy industries.
Our products sells well throughout China and Southeast Asia. The products have won good reputation and praises among all customers, from at home and abroad. The management motto of our company is "Develop through quality; Strive for survival through quality".
