Price: | Negotiable/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Western Union |
Model RG2-180 soft-capsule production line is a new generation of rolling-mold water-cooled soft-capsule line optimally designed and finely manufactured on the basis of foreign latest technology.
Its main technical specifications reach the international advanced level and conform to standard GMP.

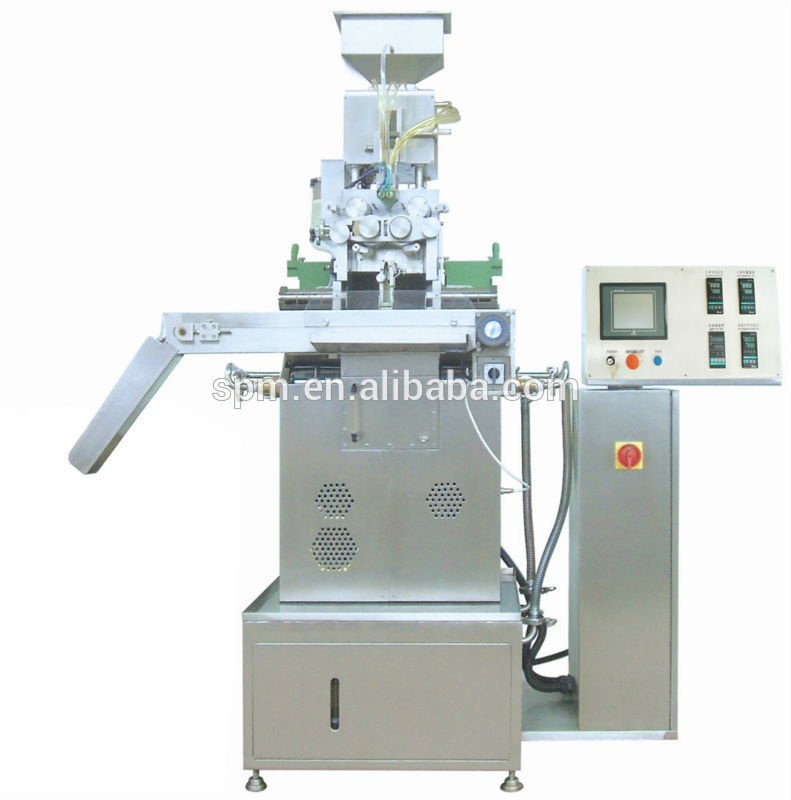

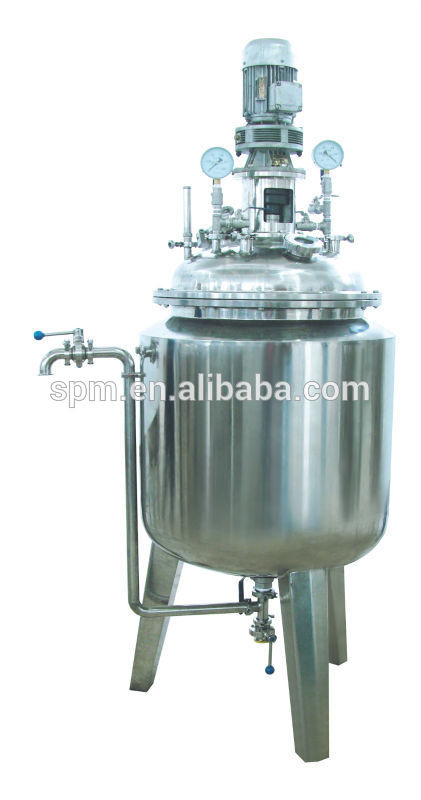

Model RG2-180 soft-capsule production line consists of the gelatin-melting pot, thermal-insulated gelatin-storage pot, electrical control panel, main machine conveyor, setting-drying rotary-cage, ruptured-gel recovery unit, and colloid mill. It works under the following principles.
The oily or gelatin-insoluble liquids, pastes, or plasters (e.g. extract form Chinese Medicine Herbs) are injected into between two rolling gelatin skins in a given quantity, cut, and then formed through two rolling molds into various-shaped soft-capsules, such as egg-shape, fish-shape, cylindrical shape ball-shape and calabash. These products are widely used in many industries such as medicine, cosmetics, health goods and pesticides.
Main technical data:
Model of the machine | RG2- 180 |
Die Roller Speed | 0-5r/min |
Die Roller Dimension | 103 x 180 |
Single Piston Pump Material Supplied | 0-2ml |
Power Supply | 380V 50Hz 220V 1.93Kw |
Noise target | 75dBA |
Overall Dimensions | 1100 x 1450 x 2150mm |
Net Weight of machine | 980kg |
This production line offers the following ten merits:
1 The water-cooled models eliminate the dust contamination resulted from the air-cooling.
2 In comparison with 6-inch model the optimized rolling-models increase the output by 30%-40% and meanwhile remarkably enhance the utilization ratio of gelatin.
3 The gelatin is pneumatically conveyed from the thermal-insulated gelatin-storage pot through the ground, which improves the production environment.
4 The food-grade conveyance belt produced by Lexno Corporation (USA) (FDA an approved) is used for conveyance of capsule, which is non-toxic, non-sticky, and easily washable.

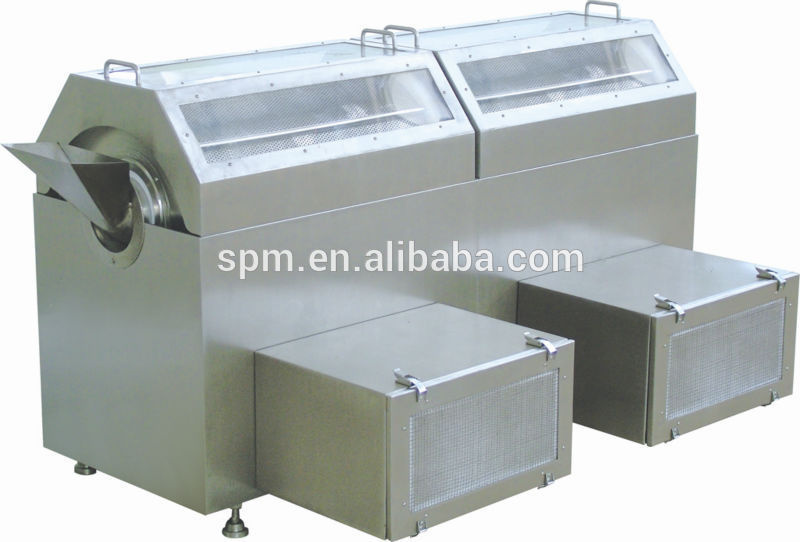

5 The setting-drying rotary cage is made of stainless steel expanded sheet, which is free of dead corners and easily washable. An oil pan is placed under the rotary cage to ensure a working environment free of oil drops.
6 All the electric elements are imported from famous manufacturers and have stable performances.
7 In production of low-dosage products, the accompanied 10-station and 14-station injection rod fully utilizes the width of molds and enhances the gelatin-utilization ratio and output.
8 The optimal-designed injector extends the range of consistency of medicine solution.
9 The improved capsule-peeling unit minimizes the probability of wrapping of the waste gelatin skin onto the gelatin-peeling rod.
10 Except that the injector, the spreading box and the rolling-mold conveyance belt are made of special materials, the parts contacting with medicine are made of 304 or 316 superior stainless steel and absolutely conform to standard GMP.
Prod Model: | RG2-180 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Automatic Grade: | Fully Automatic |
Filling Principle: | Atmospheric Pressure |
Structure: | Linear |
Feed Cylinder Structure: | Single-Room Feeding |
Material Type: | Liquid |
Type: | Weighing-type Filling Machine |
Filling Valve Head: | Multi-Head |
Packaging Container Lifting Structure: | Chute Pneumatic Combination Lifting |
Packaging Type: | Bottle |
Dosing Device: | Rotor |
Packaging Material: | Composite Materials |
