Soft Starter Contactor Vacuum Contactor Ckg Series for AC Motor

Name: Soft Starter Contactor Vacuum Contactor Ckg Series for AC Motor
Brand: china-manufacturer-directory.com
SKU: 695708502
Availability: InStock
Rating: 4.9 (53 reviews)

Supplier:	Wenzhou Suoli Electric Co., Ltd.
Price:	US $ 300/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CKG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Circuit Breaker:	Vacuum Contactor
Protective Characteristics:	Vacuum Contactor
Load:	Vacuum Contactor
Theory:	Vacuum Contactor
Size:	Vacuum Contactor
Usage:	Vacuum Contactor

Product Description

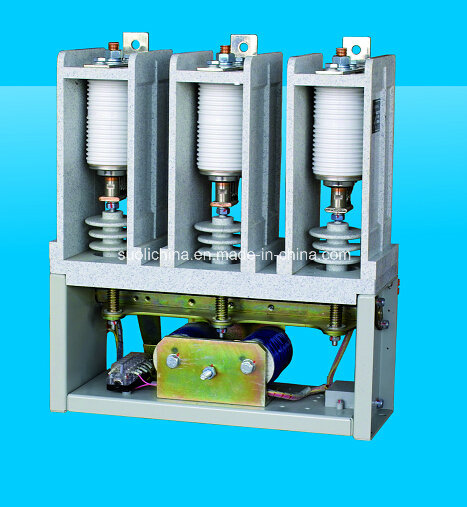

Soft starter contactor vacuum contactor CKG series for AC motor
1.Detail description
This series of vacuum contactors are suitable for the electricity network system 12kv below power network systems for installation of mechanical interlocking shaft between the two vacuum contactor can achieve mechanical interlock and interlock function, can also achieve electrical lockout.
Mainly used to enhance the electronic control circuit as the pros and cons of conversion, dynamic braking, the main line switch, frequent operation, have the advantage of long mechanical life, high reliability, low maintenance, excellent breaking performance. This series of vacuum contactor also can be used to control the high pressure air the pros and cons of conversion to a load and as a master switch.

2.Main Tech-Parameter

CKG4 12KV Series AC vacuum contactor
ModelTech parameter	160/12KV	250/12KV	400/12KV	630/12KV	800/12KV
Main circuit rated voltage (KV)	12	12	12	12	12
Main circuit rated current (A)	160	250	400	630	800
Main circuit making capacity (A/100times)	1600	2500	4000	6300	8000
Main circuit break-make ability (A/25times)	1280	2000	3200	5000	6000
Maximum break ability (A/3times)	3200	3200	4500	6300	8000
Mechanical life (times)	100 0000	100 0000	100 0000	100 0000	100 0000
Electricity life AC3 (times)	25 0000	25 0000	25 0000	25 0000	25 0000
Engineering lock life (times)	10 0000	10 0000	10 0000	10 0000	10 0000
Power-frequency withstand voltage for main circuit(fracture)(kv)	42	42	42	42	42
Phase-phase phase -to current withstand voltage(KV)	42	42	42	42	42
Lightning impulse withstand voltage (KV)	75	75	75	75	75
Rated operate frequency (times/h)	300	300	300	300	300
Engineering lock operate frequency (times/h)	30	30	30	30	30
Terminal pressure(N)	>100	>100	>100	>100	>100
Clearance betweenopen contacts (mm)	6±0.5	6±0.5	6±0.5	6±0.5	6±0.5
Over travel (mm)	1.5±0.5	1.5±0.5	1.5±0.5	1.5±0.5	1.5±0.5
Weight(Kg)	30	30	30	30	30
Main circuit resistance( μΩ )	≤200	≤200	≤200	≤200	≤200
Secondary control voltage (v)	AC&DC:110 220 380or can be customized

Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
