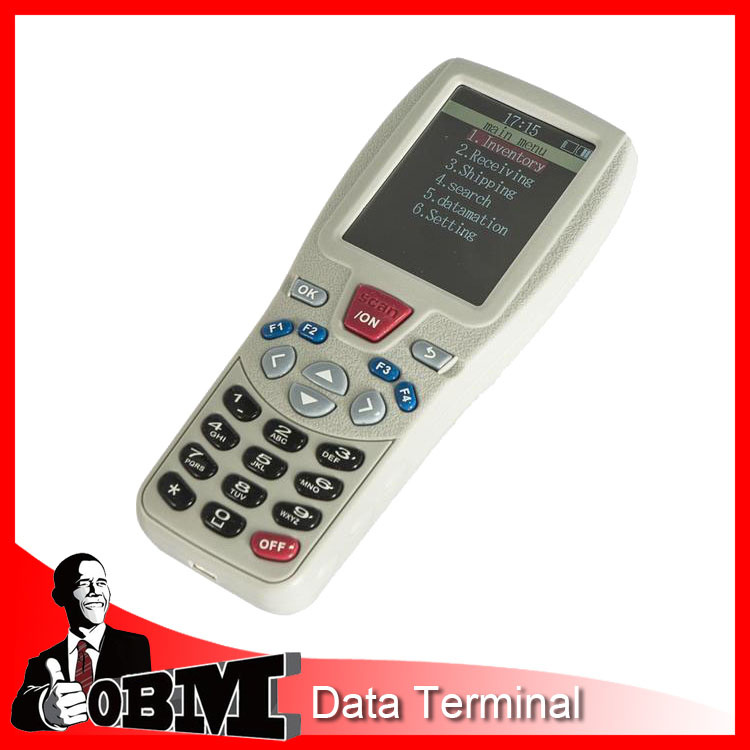

Software Laser Data Collector Handheld (OBM-757)

Name: Software Laser Data Collector Handheld (OBM-757)
Brand: china-manufacturer-directory.com
SKU: 739855675
Availability: InStock
Rating: 4.9 (134 reviews)

Supplier:	Easytech Systems Inc.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	OBM-757
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source:	650nm Laser
Scan Pattern:	Single Line
Scan Rate:	45±2 /Sec
Scan Precision:	4mil
Scan Width:	20mm@Window, 100mm@100mm
Resolution:	30% Minimum Reflectance
Operating Mode:	Continuous / Itemized Scanning
Error Rate:	1 Million-to-One
Interfaces Supported:	Mini USB Receiver, Optional RS232 or PS2
Battery:	Rechargeable Lithium Ion Battery (3.7V, 2800mAh)
Type:	Handheld Computer
CPU Type:	ARM
Memory Capacity:	16MB
OS:	Obm
Screen Size:	2.8"

Product Description

Software Laser Data Collector Handheld (OBM-757)
FEATURES:
MUTI-FUNCTIONAL
Covers the full circulation of commodity-receiving, shipping, cycle count, replenishment and defect report
RECONIZABLE
Supports download and of item file-barcode scanned mathes to the item automatically and displays on screen right away
SIMPLE
2.8" color display and graphical menu makes it easr to understand
EFFICIENT
Report is automatically generated right after inventory count, 90% saving on time, manpower and administrative overhead
SAFE
Real-time storage and bath transmission
Enduring
2800mA POLYMER-Lithium-ion battery ensures long working hours

About Us:
Easytech is a technology-driven company specialized in the Auto Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.

TECHNICAL PARAMETERS
Performance Characteristics
Light Source	650nm Laser
Scan Pattern	Single line
Scan Rate	45±2 /sec
Scan Precision	4mil
Scan Width	20mm@window , 100mm@100mm
Depth of Field	0 ~ 250mm ( 0.33mm , PCS 90% )
Roll(Till)	30°
Keypad	23
Pitch	65°
Skew(Yaw)	55°
Resolution	30% minimum reflectance
Operating Mode	Continuous / itemized scanning
Error Rate	1 million-to-one
Indicator	beeper , LCD
Use type	Hand-held or bracket-held installation
Decode Capability	EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI^
Interfaces supported	Mini USB receiver , optional RS232 or PS2
Electrical Parameters
Battery	Rechargeable lithium ion battery (3.7V ,2800mAh)
Working current	120mA
Standby Current	40mA
Laser Safety	national class2 regulatory
EMC	CE & FCC DOC compliance
Physical Characteristics
Memory	16M
keypad	23
Dimensions	160mm×68mm×29mm
Material	ABS + silicon
User Environment 5%-85%
Operating Temperature	0 ~ 45 degree celsias
Storage Temperature	-20 ~ 60 degree celsias
Humidity	5%~95% (non-condensing)
Ambient Light Immunity	Max.5,000 Lux ( fluorescent )

Easytech is one of leading high technology companies which is specialized in the Auto-Identification (Barcode & RFID machine) industry. Our products include Laser Barcode Scanner, CCD Barcode Scanner, Barcode Data Terminal, RFID Data Terminal and RFID Reader.

In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech complies with a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and releases products out of new demands of customers to meet the ever-changing market needs. Besides, Insisting on a principle of "well done of the experienced product before moving on to the next new, Making a plan on the new generation for the future while developing the present", Easytech is able to release at least one of leading products from the same industry every year.

Because of excellent performance and high quality of the products, Easytech has imajor companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also our products are seen in many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brand of Barcode Industry" by the Auto-Identification Association of China.

Let us work together and make a better tomorrow with all new and old customers from all over the world.
