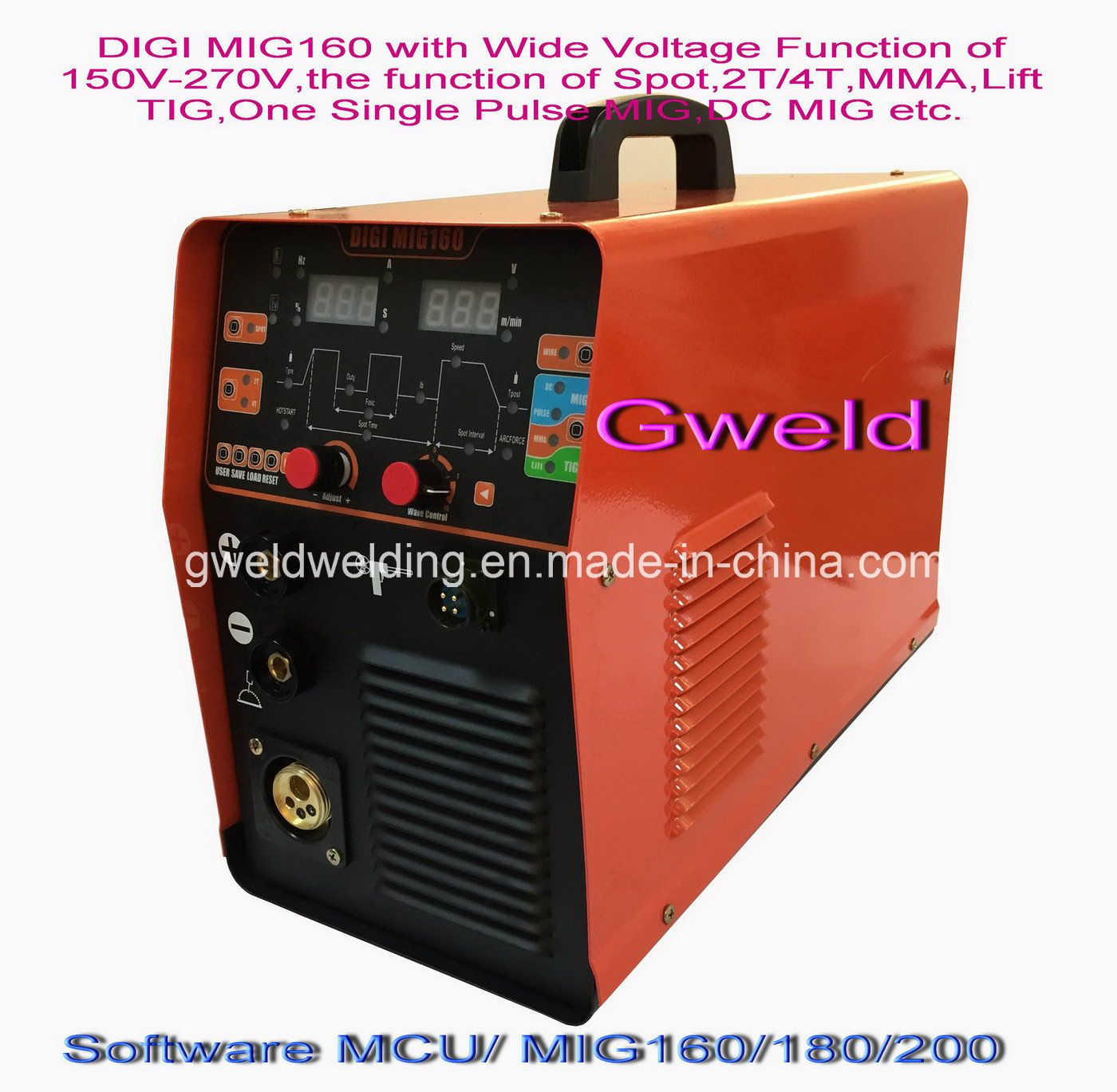

Software MCU Control MIG Welding Machine
Product Specifications
| Prod Model: |
DIGI MIG160/180/200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L585*W350*H465 |
| Type: |
MIG Welders |
| Current: |
Inverter Current |
| Model: |
MIG/Mag |
| Application: |
DIY Use, Shipyard etc. |
Product Description
Features:- Adopt High performance MCU digital Software MCU technology, and IGBT & advanced PWM inverter technology;
- Wide Voltage Range Function(1PH, 150V-270V; 3PH, 270V-460V)for poor voltage situation or generator;
- DC MIG, Single Pulse MIG, Lift-TIG, MMA, Spot,2T/4T, Memory Function etc;
- ARC force, hot start can be adjusted in the MMA function; Gas time can be adjusted for TIG function or MIG function;
- Synergic Home Function automatically manages ideal voltage while only adjusting wire feed speed;
Compact, light weight, portable, Compatible Power Generator, Intelligent Protection, over-voltage, low-voltage, over-current, over-heat etc.
Application:
Application to automobile manufacturing, engineering machinery, shipbuilding industry, aviation and agricultural machinery, etc.
Apply to general carbon steel, excellent carbon steel, low alloy steel, conducting butt welding, lap welding and fillet welding of all space position;
Apply to 0.8-1.0mm welding wire, fixed location welding, various kinds of thin thickness of the common parts, frame and auto industry Used as DIYer;
Optional Accessories
Electrode holder, welding gun, air gauge
Technical parameter| Type | MIG160 | MIG180 | MIG200 |
| Rated input current (V) | AC220±15% | AC220±15% | AC220±15% |
| Rated input current(A) | 25 | 27 | 29 |
| Current adjustment range(A)(MMA) | 10~160 | 10~180 | 10~200 |
| Current adjustment range(A)(TIG) | 10~160 | 10~180 | 10~200 |
| Current adjustment range(A)(MIG) | 30~160 | 30~180 | 30~200 |
| Current adjustment range(A)(MIG) | 11~22 | 11~24 | 11~26 |
| No load voltage(V) | 50 | 50 | 50 |
| Wire-feed Speed Range(m/min) | 1.5~16 | 1.5~16 | 1.5~16 |
| Filler Wires OD(mm) | 0.6/0.8/0.9 | 0.6/0.8/0.9 | 0.6/0.8/0.9/1.0 |
| Max. Duty Cycle(40ºC) | 35% | 35% | 35% |
| Duty cycle 100%(40ºC) | 100A | 120A | 140A |
| Duty cycle 60% (40ºC) | 120A | 140A | 160A |
| Pre flow time(S) | 0.1~6.0 | 0.1~6.0 | 0.1~6.0 |
| Post flow time(S) | 0.1~6.0 | 0.1~6.0 | 0.1~6.0 |
| Duty cycle adjustment range(%) | 1~60 | 1~60 | 1~60 |
| Frequency adjustment range(Hz) | 30~150 | 30~150 | 30~150 |
| Spot working time adjustment range(S) | 0.1~6.0 | 0.1~6.0 | 0.1~6.0 |
| Spot interval time adjustment range(S) | 0.1~6.0 | 0.1~6.0 | 0.1~6.0 |
| Hot start current adjustment range(A) | 0~100 | 0~100 | 0~100 |
| Arc force current adjustment range(A) | 0~100 | 0~100 | 0~100 |
| Efficiency(%) | 85 | 85 | 85 |
| Power Factor | 0.72 | 0.72 | 0.72 |
| Protection class | IP21S | IP21S | IP21S |
| Dimension(mm) | 490*220*390 | 490*220*390 | 490*220*390 |
| Weight(Kg) | 18 | 18 | 18.5 |

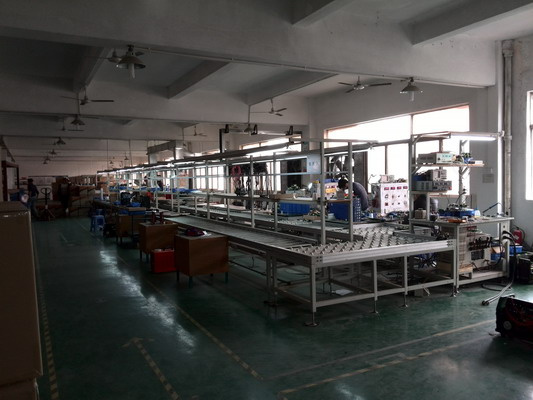

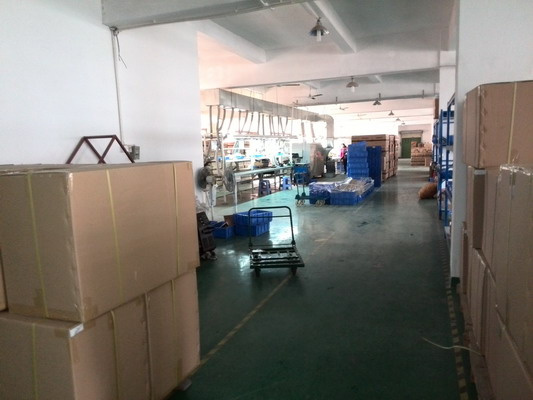

Established in 2000, Shenzhen G-Weld Electrical Appliance Co., Ltd, is one of the leading manufactures and exporters, specializing in R& D, production and selling of inverter welding machines, air plasma cutting equipment, stud-welding machines and accessories. Our company is situated in Shenzhen Special Economic Zone, close to Hongkong and Macau, and very convenient for transportation by Sea, Land and Air.
Using the latest inverter technology including hardware & software, our products have three major advantages: Smallest size, light weight and perfect performance. Currently, we possess 13 series of product categories with more than 50 models, including Inverter MMA, TIG, MIG, CUT & STUD-Welding series etc.
Our company has obtained CE, CCC and ISO9001: 2000 certificate. The reliability and stability of our products is what concerns most. We offer quality warranty to protect customers? Profit and try to maximize customers? Satisfaction. With excellent quality, competitive price and optimal service, our products are popular in the international market, such as, China, Southeast Asia, Europe, South Africa, Middle East and America etc.
With the development of more than ten years, our company has formed its own business philosophy---Technology Innovation, Excellent Quality, Prompt Response, and Customer Appreciation, and we will try our best to meet the requirement of customers & market. Meanwhile, we sincerely hope we are going to head into a better future together with you.
