Solar Charge Controller (PRS3030)

Name: Solar Charge Controller (PRS3030)
Brand: China-Manufacturer-Directory.com
SKU: 680443725
Availability: InStock
Rating: 4.9 (109 reviews)

Supplier:	Wenzhou Xihe Electric Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	PRS3030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	10a, 15a, 20a, 30a
System Voltage:	12V, 24V

Product Description

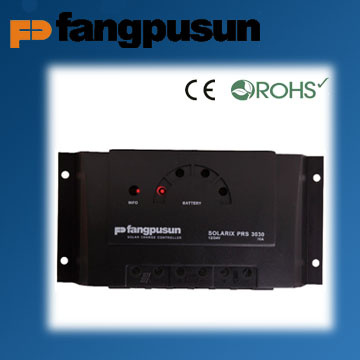

Solar Charge Controller (PRS 3030 )

Fangpusun Solarix PRS
PRS 1010, PRS 1515, PRS 2020, PRS 3030
The simplicity and high performance of the Fangpusun Solarix PRS solar charge controller make it particularly appealing. At the same time, it offers a modern design and a convenient display, all at an extremely attractive price.

Several LEDs in various colours emulate a tank display, which gives information on the battery's state of charge. Here, Steca's latest algorithms are employed, resulting in optimal battery maintenance. The Solarix PRS charge controllers are
Equipped with an electronic fuse, thus making optimal protection possible. They operate on the serial principle, and separate the solar module from the battery in order to protect it against overcharging.

For larger projects, the charge controllers can also be equipped with special functions: E. G. With night light function and selectable charging plateau and deep-discharge protection voltages.

Fangpusun Solarix PRS	PRS1010	PRS1515	PRS2020	PRS3030
Characterisation of the operating performance
System voltage	12V/24V
Own consumption	< 4mA
DC input side
Open circuit voltage solar module	< 47V
Module current	10A	15A	20A	30A
DC output side
Battery voltage	9V… 17V(17.1V… 34V)
Load current	10A	15A	20A	30A
End of charge voltage	13.9V(27.8V)
Boost charge voltage	14.4V(28.8V)
Equalisation charge	14.7V(29.4V)
Reconnection voltage(SOC/LVR)	> 50%/12.4V… 12.7V(24.8V… 25.4V)
Deep discharge protection(SOC/LVR)	< 30%/11.2V… 11.6V(22.4V… 23.2V)
Fitting and construction
Terminal(fine/single wire)	16mm 2 /25mm 2 -AWG 6/4
Degree of protection	IP32
Dimensions(XxYxZ)	189x96x45mm
Weight	approx. 345g

We are professional manufacture for the Solar Charge Controller and DC to AC Inverter.

We are new and young company, but our products are sale to all of the world and very popular in Mali, South Africa, Nigeria, USA, Turkey, New Zealand, Germany, France etc.

We also develop the new items constantly according to the market requirenment.

Welcome to contact us to learn more.
