Solar Display Model

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

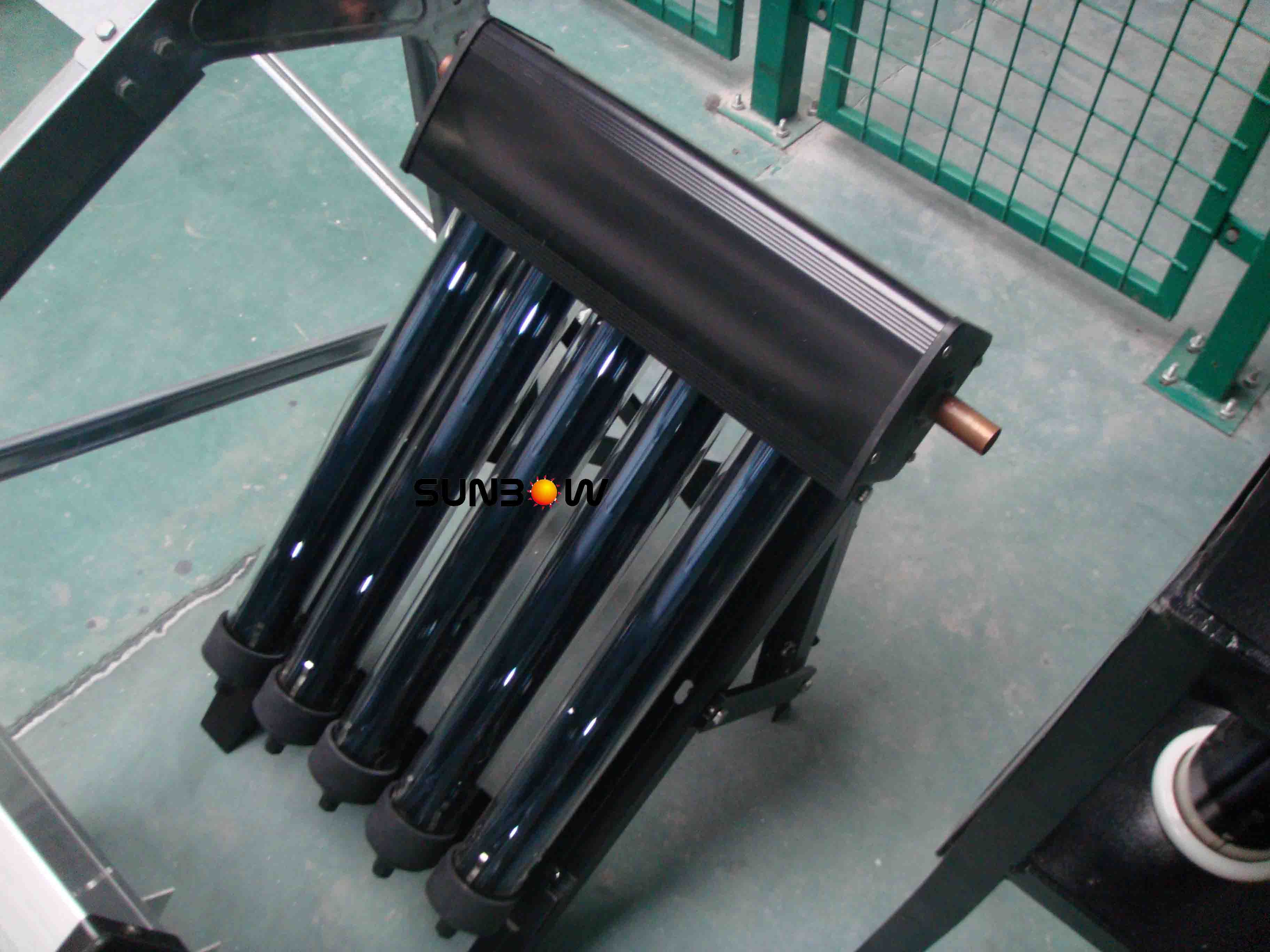

Solar display model, for show to your customer
Product Applications
1) Domestic, industrial and commercial heating use
2) Suitable for open or closed Loop (glycol-water)
3) Space heating
4) Caravan Parks, Hotels, Schools, Public Showers/Kitchens, Restaurants
5) For large scale water heating

Main feature
1) Reliable, efficient, twin-glass evacuated tubes
2) Red copper(TU1) heat pipes for rapid heat transfer
3) Attractive design, standard frame suitable for pitched roof or flat roof
4) Significant advantages over flat plate
5) Easy plug-in installation
6) Improves the environment and save your fuel cost.
7) Domestic and Commercial Use, solar collector is ideal for both domestic and commercial use, and is scalable to your exact needs. This allows us to be highly competitive.

NO.	Items	Unit	Content
1	Model		SC
2	Type		Evacuated tube collector
3	No. Of tubes	PCS	12	18	20	24
4	Spec. of tube	mm	φ58×1800
5	Gross length	mm	1970
6	Gross width	mm	1023	1473	1623	1923
7	Gross height	mm	135
8	Gross area	m2	2.015	2.901	3.197	3.788
9	Aperture area	m2	1.230	1.847	2.051	2.46
10	Absorber area	m2	0.99	1.47	1.634	1.961
11	Weight	Kg	45	68	71	93
12	Header/heat pipe		Red copper (TU1)
13	Tube material		Borosilicate glass 3.3
14	Coating of tube		Al-N/Al-Cu
15	Interval of tube	mm	75
16	Outer diameter header pipe	mm	22mm
17	Inner diameter header pipe	mm	20mm
18	Manifold casing material		Aluminum alloy
19	Sealing material		EPDM
20	Frame material		Aluminum alloy
21	Operating pressure	MPa	0.6
22	Loading QTY 20'/40' GP	set	124/250	90/188	83/174	72/148
