Product Specifications
Prod Model: |
PA RC100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Solsum F, Solarix Prs, Solarix Mppt Control |
Type: |
Button |
Application: |
for Solar Charge Controller |
Product Description
For Fangpusun Solsum F, Fangpusun Solarix PRS und Fangpusun Solarix MPPT.

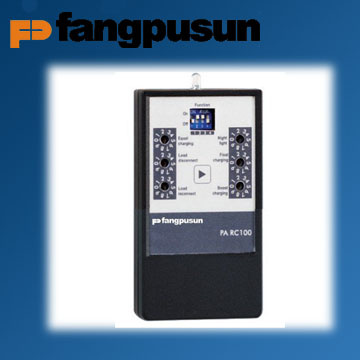

Fangpusun PA RC100 remote control allows to program Fangpusun solar charge controllers. The values can be adjusted with the help of switches. After a restart of the charge controller the new settings can be activated by pressing the program-button on the Fangpusun PA RC100. An LED will transfer the values to the controller.
Product features
1, Low weight
2, Simple installation
3, Maintenance-free
4, Low own consumption
5, Best reliability
6, Night light function pre-set in the factory or adjustable via Fangpusun PA RC 100
7, Parameterisation of function values via Fangpusun PA RC 100
|
PA RC100 |
Characterisation of the operating performance |
Supply voltage |
4.5v(3*1.5v AAA/RO3 batteries) |
Adjustable parameters |
Type of battery: gel/liquid
Night- light function
End of charge voltages(float/boost/equal)
Deep discharge protection(LVD)
LVD factor
Switch-on threshold |
Suitable for the following
Fangpusun charge controllers |
Fangpusun Solsum F
Fangpusun PRS
Fangpusun Solarix MPPT 2010 |
Fitting and construction |
Dimensions (X x Y x Z) |
115X57X20mm |
Weight |
90g |
We are professional manufacture for the Solar Charge Controller and DC to AC Inverter.
We are new and young company, but our products are sale to all of the world and very popular in Mali, South Africa, Nigeria, USA, Turkey, New Zealand, Germany, France etc.
We also develop the new items constantly according to the market requirenment.
Welcome to contact us to learn more.
