Product Specifications
| Prod Model: |
CRVF-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China (Mainland) |
| Brand Name: |
CRV |
| Material Of Container: |
G.R.P |
| Packaging Details: |
G.R.P Life Raft Container,Then with Wooden Bracket |
| Delivery Detail: |
15 Days |
| Certification: |
CCS |
Product Description

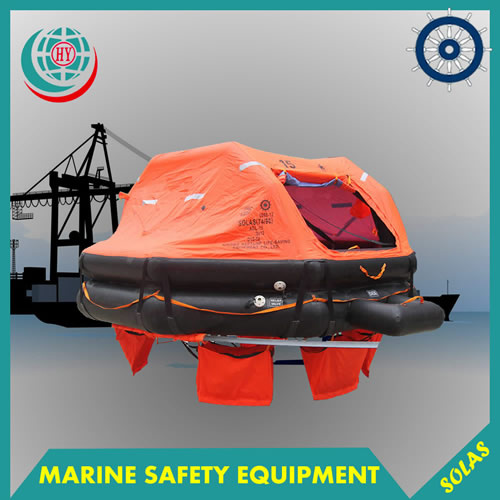

SOLAS approved throwing type inflatable life raft
| Model | Carrying capacity | physical form | dimension(mm) | height(mm) | weight(kg) | packingdimension(mm) |
| CRVF-6 | 6 | Hexagon | 2116 | 1200 | 85 | 570*1040 |
| CRVF-10 | 10 | Octagon | 2730 | 1400 | 110 | 620*1110 |
| CRVF-15 | 15 | Octagon | 3300 | 1500 | 140 | 650*1210 |
| CRVF-20 | 20 | Octagon | 3720 | 1650 | 170 | 700*1220 |
| CRVF-25 | 25 | Octagon | 4110 | 1750 | 185 | 710*1280 |
Every life raft shall be so constructed as to be capable of with standing exposure for 30 days afloat in all sea conditions.
The life raft shall be so constructed that when it is dropped into the water from a height of 18 m, the life raft and its equipment will
operate satisfactorily. If the liferaft is to be stowed at a height of more than 18 m above the waterline in the lightest seagoing condition,it shall be of a type which has been satisfactorily drop-tested from at least that height.
The floating life raft shall be capable of withstanding repeated jumps on to it from a height of at least 4.5 m above its floor both with and without the canopy erected.
The life raft and its fittings shall be so constructed as to enable it to be towed at a speed of 3 knots in calm water when loaded with its full complement of persons and equipment and with one of its sea-anchors streamed.
Established in 2009, specilizing in marine safety equipments. Hongyi is known as one of global leader in LSA and FFE with group headquarters and factory in China and 4 branches in Indonesia. We supply all kinds of life saving appliance and fire fighting equipment, as well as marine nautical instrument. Such as life raft and accessories, life jacket, life buoy, and related lights, marine flares, immersion suit, B. A., EEBD, fireman suit, pilot ladder and marine sextant...Which are all approved by SOLAS, some of items that we can even provide you CE certificate.
