Product Specifications
| Prod Model: |
LXD2F4D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Standard Size |
| Parts Type: |
End Mills |
| Workpiece: |
Iron, Steel. Cast Material, Alloy Aluminum |
| Machine Type: |
Milling Machine |
| Precision: |
High Precision |
| Suitable For: |
Copper, Iron, Steel, etc |
| Control Type: |
CNC |
| HRC: |
45/55/60/65degree |
| Transports: |
Air/Courier/Maritime |
| Export Markets: |
Global |
Product Description
Solid Carbide Cutter 2 Flutes Square End Mill Tools
1. Specifications- Mirco grain
- 0.6μ M
- Co 10%
- HRC≤ 55
- AlTiN coating
- Working material for steel and high speeding cutting;
- Any your drawings design are acceptable;
- Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy.
2. Raw Materials
- SANDVIK of Sweden;
- Teagutec of Korean;
- Kennametal of American;
- Guhring of Germany;
- YG10X of Zhuzhou China;
- WC25F of Taiwan;
3. Our Workshop and Advanced Equipments
- Walter CNC machine from Germany;
- ANCA CNC machine from Australia;
- Guhring detecting instrument from Germany;
- MICHEAL DECHAL CNC Machine from Germany;
4. Our advantages:
- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision;
- Our carbide end mills have long usage life lasting in hardened steels,
- Every product will inspected by Zoller Machine;
- Special CNC solid tools with high quality/ometitive price/good service;
5. Package
- One piece in one plastic box, and ten boxes in one carton;
- Any other requested packing are acceptable;
If you are intrested in any details of our products, pls feel free to contact with us!
Tel No.: 0086-519-86929580
Mobile: 0086-(0)13616100599

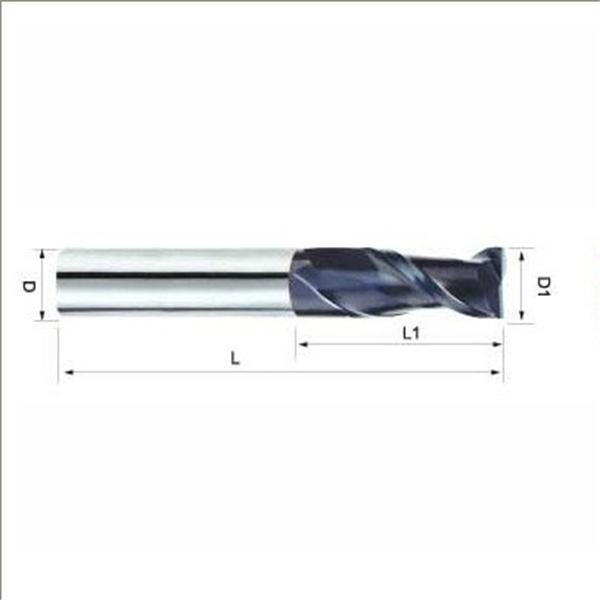

| Product code | Flute dia | Flute length | Overall length | Shank dia |
| LXD2F4D0010 | 1.0 | 3 | 50 | 4 |
| LXD2F4D0015 | 1.5 | 4 |
| LXD2F4D0020 | 2.0 | 5 |
| LXD2F4D0025 | 2.5 | 6 |
| LXD2F4D0030 | 3.0 | 8 |
| LXD2F4D0035 | 3.5 | 10 |
| LXD2F4D0040 | 4.0 | 11 |
| LXD2F6D0010 | 1.0 | 3 | 50 | 6 |
| LXD2F6D0015 | 1.5 | 4 |
| LXD2F6D0020 | 2.0 | 6 |
| LXD2F6D0025 | 2.5 | 7 |
| LXD2F6D0030 | 3.0 | 8 |
| LXD2F6D0035 | 3.5 | 10 |
| LXD2F6D0040 | 4.0 | 11 |
| LXD2F6D0045 | 4.5 | 13 |
| LXD2F6D0050 | 5.0 |
| LXD2F6D0055 | 5.5 |
| LXD2F6D0060 | 6.0 | 15 |
| LXD2F8D0065 | 6.5 | 17 | 60 | 8 |
| LXD2F8D0070 | 7.0 |
| LXD2F8D0075 | 7.5 |
| LXD2F8D0080 | 8.0 | 20 |
| LXD2F10D0085 | 8.5 | 23 | 75 | 10 |
| LXD2F10D0090 | 9.0 |
| LXD2F10D0095 | 9.5 | 25 |
| LXD2F10D0100 | 10.0 |
| LXD2F12D0105 | 10.5 | 12 |
| LXD2F12D0110 | 11.0 | 28 |
| LXD2F12D0115 | 11.5 |
| LXD2F12D0120 | 12.0 | 30 |
| LXD2F14D0130 | 13.0 | 40 | 100 | 14 |
| LXD2F14D0140 | 14.0 |
| LXD2F16D0150 | 15.0 | 16 |
| LXD2F16D0160 | 16.0 |
| LXD2F18D0170 | 17.0 | 18 |
| LXD2F18D0180 | 18.0 |
| LXD2F20D0190 | 19.0 | 20 |
| LXD2F20D0200 | 20.0 |
| LXD2F25D0220 | 22.0 | 25 |
| LXD2F25D0250 | 25.0 |
