Changzhou Xute Jifeng Tools Group Co., Ltd. >> Solid Carbide Cutter End Milling Tools

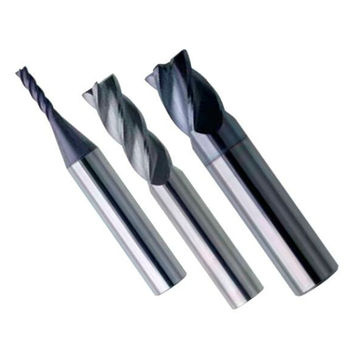

Solid Carbide Cutter End Milling Tools

Name: Solid Carbide Cutter End Milling Tools
Brand: China-Manufacturer-Directory.com
SKU: 750372645
Availability: InStock
Rating: 4.9 (61 reviews)

Supplier:	Changzhou Xute Jifeng Tools Group Co., Ltd.
Price:	US $ 2-50/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Carbide Alloy
Hardness:	HRC 40-65
Performance Classification:	High-End CNC Machine Tools
Process Usage:	Metal-Cutting CNC Machine Tools
Numerical Control:	NC
Movement Method:	Contour Control
Control Method:	Closed-Loop Control

Product Description

Tungsten Solid Carbide Cutter End Milling Tools

1. Specifications
- Chemical composition: 89% Carbide, 10% Co, 1% other material
- Physical and machinal properties:
- Density: 14.10-14.45g/cm3
- Hardness: 91.5-92.5HRA
- Flexaral strength: 3500-4000N/mm2
- Grain size: 0.4-1 um
- Working material for steel and high speeding cutting;
- Any your drawings design are acceptable;

2. Raw Materials
- SANDVIK of Sweden;
- Teagutec of Korean;
- Kennametal of American;
- Guhring of Germany;
- YG10X of Zhuzhou China;
- WC25F of Taiwan;

3. Our Workshop and Advanced Equipments
- Walter CNC machine from Germany;
- ANCA CNC machine from Australia;
- Guhring detecting instrument from Germany;
- MICHEAL DECHAL CNC Machine from Germany;

4. Our advantages:
- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision;
- Our carbide end mills have long usage life lasting in hardened steels,
- Every product will inspected by Zoller Machine;
- Special CNC solid tools with high quality/ometitive price/good service;

5. Package
- One piece in one plastic box, and ten boxes in one carton;
- Any other requested packing are acceptable;

Solid Carbide 2/4 Flutes Corner Radius End Mill(X-JF16810)
						45	55
CODE	flute diameter	flute length	shank diameter	full length	R	USD	USD
X-JF16810-0300	3	6	4	50	0.5
X-JF16810-0400	4	8	4	50	0.5
X-JF16810-0500	5	15	6	50	0.5
X-JF16810-0600	6	15	6	50	1
X-JF16810-0800	8	20	8	60	1
X-JF16810-0800	8	20	8	60	2
X-JF16810-1000	10	25	10	75	1.5
X-JF16810-1000	10	25	10	75	2
X-JF16810-1200	12	25	12	75	1
X-JF16810-1400	14	25	12	80	2
X-JF16810-1600	16	40	16	80	2
X-JF16810-1800	18	40	20	100	1
X-JF16810-2000	20	40	20	100	2

Solid Carbide Mills

Milling Model Name	Machining material and/or rigidity	V(m/min)	Fz(mm/z)	Ap(mm)	Aw(mm)
Solid carbide key way milling tools	Steel HB 180-280	70-150	0.01-0.06	0.4-0.6D	<=D
	Cast-iron HB 180-220	100-120	0.01-0.06
Solid carbide end mills,corner rabius end millstaper enn mills	Steel HB 180-280	90-160	Milling flutes0.01-0.01	Milling flutes<=D Side milling<=1.5D	Milling flutes<=D Side milling<=0.2D
			Side milling0.03-0.3
	Cast-iron HB 180-220	100-150	Milling flutes0.02-0.15
			Side milling0.06-0.45
Solid carbide ball head end mills	Steel HB 180-280	80-220	0.01-0.08	<=0.4D	<=D
	Cast-iron HB 180-220	280-280	0.02-0.10
Solid carbide taper ball head end mills	Steel HB 180-280	120-170	0.01-0.08
	Cast-iron HB 180-220	250	0.02-0.10

If you are intrested in any details of our products, pls feel free to contact with us!

Changzhou Xute Jifeng Tools Group Co.,Ltd.
Address:No.1 East Main Street, Xixiashu Town, Changzhou, Jiangsu, China
Web: www.czxtjftools.com
Tel: 13616100599, 86-0519-86929580
Fax: 86-519-86705585

code	diameter(mm)	cutting length	shank diameter	total length
x006-1	1	3	4	50
x006-2	2	6	4	50
x006-3	3	8	4	50
x006-4	4	12	4	50
x006-5	5	15	6	50
x006-6	6	15	6	50
x006-7	7	20	8	60
x006-8	8	20	8	60
x006-9	9	25	10	75
x006-10	10	25	10	75
x006-11	11	30	12	75
x006-12	12	30	12	75
x006-13	13	40	14	80
x006-14	14	40	14	80
x006-15	15	45	16	80
x006-16	16	45	16	80
x006-17	17	45	18	100
x006-18	18	45	18	100
x006-19	19	50	20	100
x006-20	20	50	20	100

Xute Jifeng Tools Factory is located in Changzhou, Jiangsu, China. XinBei XuTe JiFeng tools factory is a professional manufacturer of NC Tools with well-equipped testing equipment and strong technical force, is established in 2006, and has enjoyed good reputation in cutting tools field for 5 years.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. We professionally produce "LENO"brand sets of tools, tools of machine and CNC surrounding affiliated fittings series.

We specialize in the following products:

Tool holders

Cutter bars

Boring tools

Turing tools

Milling tools

Thread tools

Corn mills

Tungsten steel end mills

Cutter heads

Drill bits

Collets

Inserts

Collet chucks

Chucks

Nuts

Wrenches

And Other machine accessories

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We willstrive to provide you with high quality products and quality service, We can also accept any kinds of payment terms, such as T/T, Western Union, L/C, OA, D/P, Escrow etc.

"Quality first, Customer first" is our orientation, we sincerely invite you to our company for the bright future. You are welcome to contact us for future friendly business relationships so as to achieve mutual benefit.

Do not be hesitate to contact us if you have interest in our goods, because of different countries in different time difference, you may met businessmen are not online or out, making your enquiry in our mails would be highly appreciated and we will respond you soon.
