Changzhou Xute Jifeng Tools Group Co., Ltd. >> Solid Carbide Cutter Finishing End Mill Tools

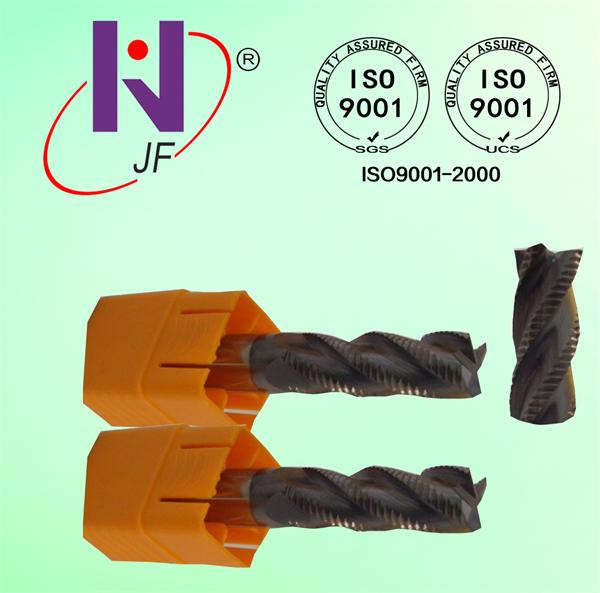

Solid Carbide Cutter Finishing End Mill Tools

Name: Solid Carbide Cutter Finishing End Mill Tools
Brand: China-Manufacturer-Directory.com
SKU: 743782835
Availability: InStock
Rating: 4.3 (92 reviews)

Supplier:	Changzhou Xute Jifeng Tools Group Co., Ltd.
Price:	US $ 1.58-50/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tungsten Carbide:	90%
Material:	Tungsten Carbide
Helix Angle:	Straight Flute
Grain Size:	0.5um
Performance Classification:	High-End CNC Machine Tools
Process Usage:	Metal-Cutting CNC Machine Tools
Numerical Control:	CNC/MNC
Movement Method:	Contour Control
Control Method:	Semi-Closed Loop Control

Product Description

Solid Carbide Cutter Finishing End Mill Tools

1.Spcification
. Rang of application: Side face, step shoulder, straight slot
. Item: 35, 45, 30 degree spiral angle, D range: D12-0.20 12<-0.030
. Working hardness: HRC45-65
. Materials: YG25 100% Raw Material
. Composition: 89% Carbide, 10% Co, 1% other material
. Micro grain: 0.4um
. Hardness of Rod Material (HRA): 91-93
. Bending strength: 2500-2800
. Types: Square/ball nose/radius/ single flute carbide milling cutter
. Applications: Good wear resistance, suitable for alloy, cast iron, copper, common mould steel

2. Raw Materials

- SANDVIK of Sweden;

- Teagutec of Korean;

- Kennametal of American;

- Guhring of Germany;

- YG10X of Zhuzhou China;

- WC25F of Taiwan;

3. Our Workshop and Advanced Equipments

- Walter CNC machine from Germany;

- ANCA CNC machine from Australia;

- Guhring detecting instrument from Germany;

- MICHEAL DECHAL CNC Machine from Germany;

4. Our advantages:

- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision;

- Our carbide end mills have long usage life lasting in hardened steels,

- Every product will inspected by Zoller Machine;

- Special CNC solid tools with high quality/ometitive price/good service;

5. Package

- One piece in one plastic box, and ten boxes in one carton;

- Any other requested packing are acceptable;

If you are intrested in any details of our products, pls feel free to contact with us!

Tel No.: 0086-519-86929580
Mobile: 0086-(0)13616100599

Performance Solid Carbide Drills
Dia. (MM)	Flute Length (MM)	Shank Dia. (MM)	Shank Length (MM)	OAL (MM)
3.3	20	4	28	54
3.5	20	4	28	54
3.7	20	4	28	54
3.8	24	4	28	58
3.9	24	4	28	58
4.0	24	4	28	58
4.2	24	6	36	66
4.3	24	6	36	66
4.5	24	6	36	66
4.6	24	6	36	66
4.9	28	6	36	66
5.0	28	6	36	66
5.1	28	6	36	66
5.3	28	6	36	66
5.5	28	6	36	66
5.8	28	6	36	66
5.9	28	6	36	66
6.0	28	6	36	66
6.5	34	8	36	79
6.7	34	8	36	79
6.8	34	8	36	79
7.0	34	8	36	79
7.3	41	8	36	79
7.4	41	8	36	79
7.5	41	8	36	79
7.8	41	8	36	79
7.9	41	8	36	79
8.0	41	8	36	79
8.1	47	10	40	89
8.2	47	10	40	89
8.3	47	10	40	89
8.4	47	10	40	89
8.5	47	10	40	89
8.6	47	10	40	89
8.7	47	10	40	89
8.8	47	10	40	89
8.9	47	10	40	89
9.0	47	10	40	89
9.3	47	10	40	89
9.5	47	10	40	89
9.7	47	10	40	89
9.8	47	10	40	89
10.0	47	10	40	89
10.3	55	12	45	102
10.4	55	12	45	102
10.5	55	12	45	102
10.6	55	12	45	102
10.8	55	12	45	102
11.0	55	12	45	102
11.1	55	12	45	102
11.2	55	12	45	102
11.5	55	12	45	102
11.8	55	12	45	102
11.9	55	12	45	102
12.0	55	12	45	102
12.1	60	14	45	107
12.2	60	14	45	107
12.5	60	14	45	107
12.6	60	14	45	107
13.0	60	14	45	107
13.1	60	14	45	107
13.5	60	14	45	107
14.0	60	14	45	107
14.5	65	16	48	115
14.6	65	16	48	115
15.0	65	16	48	115
15.2	65	16	48	115
15.5	65	16	48	115
15.6	65	16	48	115
16.0	65	16	48	115
16.5	73	18	48	123
16.8	73	18	48	123
17.0	73	18	48	123
17.5	73	18	48	123
17.8	73	18	48	123
18.0	73	18	48	123
18.5	79	20	50	131
18.8	79	20	50	131
19.0	79	20	50	131
19.5	79	20	50	131
19.8	79	20	50	131
20.0	79	20	50	131
20.5	93	25	56	151
21.0	93	25	56	151
21.5	93	25	56	151
22.0	93	25	56	151
22.5	96	25	56	153
23.0	96	25	56	153
23.5	96	25	56	153
24.0	96	25	56	153
24.5	96	25	56	153
25.0	96	25	56	153

Xute Jifeng Tools Factory is located in Changzhou, Jiangsu, China. XinBei XuTe JiFeng tools factory is a professional manufacturer of NC Tools with well-equipped testing equipment and strong technical force, is established in 2006, and has enjoyed good reputation in cutting tools field for 5 years.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. We professionally produce "LENO"brand sets of tools, tools of machine and CNC surrounding affiliated fittings series.

We specialize in the following products:

Tool holders

Cutter bars

Boring tools

Turing tools

Milling tools

Thread tools

Corn mills

Tungsten steel end mills

Cutter heads

Drill bits

Collets

Inserts

Collet chucks

Chucks

Nuts

Wrenches

And Other machine accessories

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We willstrive to provide you with high quality products and quality service, We can also accept any kinds of payment terms, such as T/T, Western Union, L/C, OA, D/P, Escrow etc.

"Quality first, Customer first" is our orientation, we sincerely invite you to our company for the bright future. You are welcome to contact us for future friendly business relationships so as to achieve mutual benefit.

Do not be hesitate to contact us if you have interest in our goods, because of different countries in different time difference, you may met businessmen are not online or out, making your enquiry in our mails would be highly appreciated and we will respond you soon.
