Product Specifications
| Prod Model: |
RDMW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cutter |
| Work Type: |
Gear Cutting |
| Material: |
PCBN |
Product Description

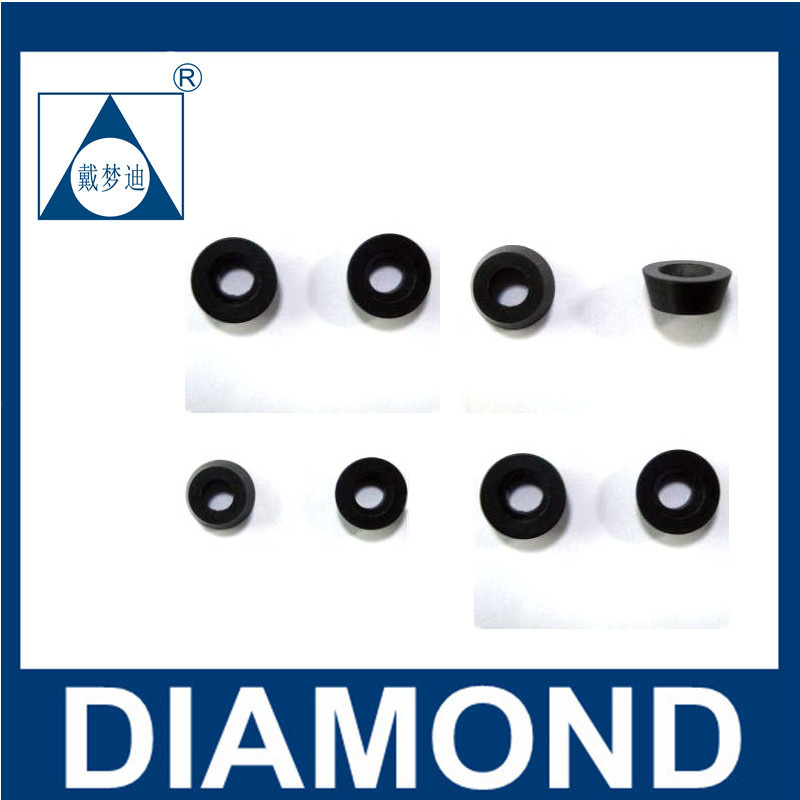

Solid CBN insert RDMW10T3MO, Machining harden steel with HRC50-67, general gray cast iron with HB about 200, high hardness cast iron with HRC50-64 and so on!
Harden steel with HRC50-67, Cutting speed, 50-150 m/min; Feed, 0.05-0.12 mm/rev; Cutting deepth, about 0.2mm
General gray cast iron with HB about 200, Cutting speed, 500-1000 m/min; Feed, 0.1-0.5; Cutting deepth, about 3.0mm
High hardness cast iron with HRC50-64, Cutting speed, 50-100 m/min; Feed, 0.1-0.3 mm/rev, Cutting deepth, about 2.5mm
Specification: Completed, for example, RNGN0803MO, RNGN1204MO, RNGN1304MO
Packing: Standard, 10 PCS in a plastic box with sponge or single plastic box inside, carton box outside
Delivery time: 10 days
Chengdu Diamond Tools Co., Ltd., is a professional manufacturer specialized in PCBN (PolyCrystalline Cubic Boron Nitride ) / PCD(PolyCrystalline Diamond ), PCD End mills and Carbide cutting tools. Established on 2001, It owns advanced equipments and many outstanding experts.
The company aims: Try our best to meet the customer's needs and Grow up together.
Our Cutting tools are ideal substitutes for similar imported products with high stability (excellent service life, reliable machining accuracy), high cutting speed, good surface roughness and dry turning for hardened steels etc. They are especially suitable for mass production of automobile and motorbike parts.
Our products exported to all over the world and enjoying good reputations.
The company has been granted with the ISO 9001-2008 Quality Certificate by CQM in China.
More detail informations. Welcom to contact with us!
