Zhejiang Maidi Refrigeration Technology Co., Ltd. >> Solid Core Filter Drier (SEK-083S)

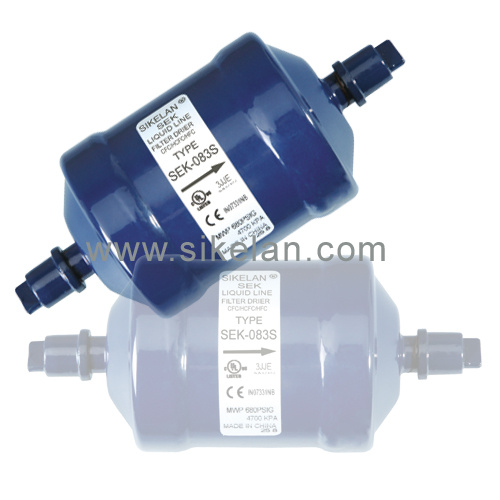

Solid Core Filter Drier (SEK-083S)

Name: Solid Core Filter Drier (SEK-083S)
Brand: china-manufacturer-directory.com
SKU: 693747795
Availability: InStock
Rating: 4.5 (91 reviews)

Supplier:	Zhejiang Maidi Refrigeration Technology Co., Ltd.
Price:	Negotiable
Min Order:	25/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SEK-083S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Sikelan

Product Description

SEK series molecular liquid line filter drier, using high quality compressed sepherical desiccant, and compressed through automatic integration with high-density filters in the cylinder body, to achieve the role of drying filter that can effectively filter systemof residual water copies and debris.

Feature:

The automatic compressed decive makes it possible to automatically fill in the worm molecules

High moisture and acid removal capacity

Motion of pads will not cause vibration

Drying and filtering effect of combining

Filtration: 20 microns

Corrosion resistant epoxy powder paint finish, salt spray test above 500 hours

Two kinds of connection methods: ODF and SAE; In order to facilitate welding, ODF adoption of TP2 copper reserve

For a variety of refrigerant R12, R134A, R22, R404A, R407C, R410A, R500, R502, R507

Maximum working pressure: 4.7Mpa/680Psig, with the UL and CE certification.

TYPE	(in)CONNECTTONS		(KW)LIQUID FLOW CAPACITY(KW)					A(in)	B(in)	C(in)
TYPE	ODF	SAE	R134a	R12	R22/ R-410a	R407c	R404a/R-507	R502
SEK-032		1/4	1.61	2.09	2.21	2.12	1.45	1.45	4.38		1.63
SEK-032S	1/4		2.21	2.72	2.88	2.88	1.98	1.98	3.83	3.13
SEK-033		3/8	2.51	3.01	3.32	3.22	2.22	2.12	4.67
SEK-033S	3/8		2.51	3.01	3.32	3.22	2.22	2.12	4.06	3.18
SEK-052		1/4	1.72	2.12	2.32	2.22	1.52	1.52	4.81		2.64
SEK-052S	1/4		2.72	3.32	3.62	3.52	2.42	2.31	4.44	3.69
SEK-053		3/8	2.91	3.53	3.85	3.69	2.54	2.54	5.13
SEK-053S	3/8		3.62	4.41	4.78	4.68	3.23	3.13	4.5	3.36
SEK-082		1/4	1.89	2.31	2.28	2.45	1.69	1.58	5.63		2.64
SEK-082S	1/4		2.55	3.12	3.46	3.34	2.23	2.23	5.25	4.5
SEK083		3/8	3.33	4.01	4.35	4.36	2.94	2.84	5.94
SEK-083S	3/8		3.76	4.56	4.88	4.78	3.29	3.19	5.31	4.44
SEK-084		1/2	5.56	6.75	7.32	7.13	4.96	4.76	6.19
SEK-084S	1/2		5.88	7.12	7.74	7.55	5.12	5.07	5.38	4.38
SEK-162		1/4	1.98	2.36	2.57	2.44	1.72	1.63	4.39		2.64
SEK-162S	1/4		2.55	3.12	3.45	3.32	2.19	2.19	3.83	5.25
SEK-163		3/8	3.19	3.88	4.25	4.11	2.78	2.71	6.88
SEK-163S	3/8		3.61	4.41	4.79	4.77	3.16	3.13	6.25	5.38
SEK-164		1/2	5.88	7.14	7.81	7.77	5.23	5.12	7.06
SEK-164S	1/2		7.1	8.5	9.22	9.01	6.21	6.02	6.31	8.31
SEK-165		5/8	8.02	9.71	10.45	10.32	7.01	6.82	7.5
SEK-165S	5/8		8.32	10.12	10.94	10.77	7.32	7.12	6.56	5.31
SEK-167S	7/8		12.78	15.56	16.87	16.54	11.26	10.92	7.13	5.63
SEK-303		3/8	3.61	4.34	4.71	4.61	3.16	3.11	9.63		3.15
SEK-303S	3/8		5.23	6.36	6.87	6.78	4.63	4.45	9	8.13
SEK-304		1/2	6.64	8.13	8.89	8.64	5.92	5.71	9.88
SEK-304S	1/2		8.78	10.62	11.52	11.36	7.74	7.53	9.06	8.06
SEK-305		5/8	8.78	10.69	11.56	11.35	7.74	7.54	10.31
SEK-305S	5/8		10.32	12.51	13.52	13.33	9.12	8.84	9.31	8.06
SEK-306S	3/4		12.12	14.84	16.06	15.75	10.71	10.44	9.68	8.43
SEK-307S	7/8		13.84	16.84	18.23	19.72	12.23	11.84	9.88	8.38
SEK-309S	1-1/8		16.12	19.63	21.25	20.84	14.21	13.84	10.12	8.5
SEK-413		3/8	3.59	4.39	4.75	4.65	3.16	3.09	9.75		3.66
SEK-414		1/2	8.55	10.41	11.32	11.15	7.51	7.31	10
SEK-414S	1/2		8.95	10.85	11.74	11.52	7.84	7.61	9.9	8.19
SEK-415		5/8	9.95	12.06	13.05	12.84	8.74	8.54	10.44
SEK-415S	5/8		13.98	17.02	18.41	18.18	12.3	12	9.44	8.19
SEK-417S	7/8		16.66	20.35	22.01	21.6	14.78	14.35	9.88	8.38
SEK-419S	1-1/8		22.75	27.78	30.25	29.41	20.14	19.51	10.38	8.56
SEK-757S	7/8		18.25	22.22	24.15	23.65	16.15	15.62	15.43	13.94	3.66
SEK-759S	1-1/8		26.8	32.87	35.41	34.84	23.7	23.01	15.75	13.63	3.66

Hangzhou Maidi Heating and Refrigerating Equipment Co.Ltd is located in Hangzhou City, who has the reputation of China Heaven.We founded in 2009, and moved into new plant on Jul 2011, land area 12, 084 square meters.
The former company name is Hangzhou Sporlan Heating and Refrigerating Equipment Co., Ltd, established on 2002, engaged in manufacturing and exporting since 2004.

Our new plant owns 5 new production lines, with advanced technology, manufacturing 3 series products:
1)Hermetical Refrigeration Compressors, annual capacity 1.5 million pieces.And our compressor range is wide, suitable for small water dispenser, same car and hotel refrigerator, then middle household refrigerator, and big restaurant, supermarket refrigerator and showcase.
2)New Fluorinate Products, including R134A, R404A, R422D...etc.The max storage 1500 ton, and output 8000 ton.
3)Refrigeration Spare Parts, annual yield 600, 000PCS.High quality and sole to American and European countries.

Our whole factory has assessed to comply with the requirements of the international standard ISO9001, ISO14001.
All product has been tested and passed CE, UL, CB, VDE, CCC and RoHS certificates.

Company Management Principleis Marketing for Guideline, Quality for Existence, Technology for Development, Management for Efficiency, Service for Credibility.
Company Business concept is Quality, Innovation, High-Efficiency, Credit

Warmestly welcome your visit.
