Solid Core Filter Drier (SG-032)

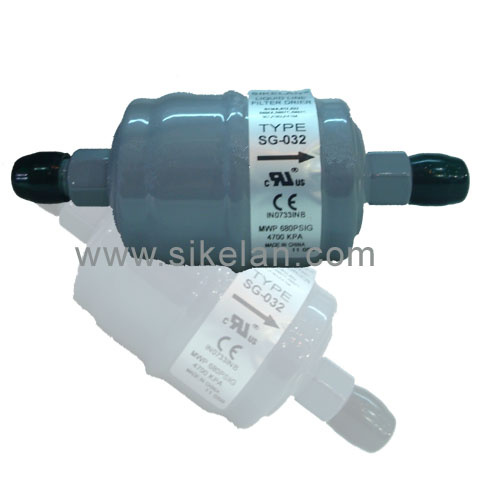

Name: Solid Core Filter Drier (SG-032)
Brand: china-manufacturer-directory.com
SKU: 670567675
Availability: InStock
Rating: 4.8 (70 reviews)

Supplier:	Zhejiang Maidi Refrigeration Technology Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SG-032
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Filter

Product Description

SG series filters driers adopt the molecular sieve and pearl-shaped active aluminum which is very absorbent.

Feature:
High filtering ability
Perfect protection for the system
Protect the system from presence of various solid pollutants
Suitable for such air conditioning systems with R12, R22 and R502
Two kinds of connection methods: ODF or SAE
Maximum working pressure: 4.70Mpa/680Psig, with the UL and CE certification.

TYPE	Connection size(in)		Advising capacity KW(cold tonnage)	Water suction (60ppm hour)		Refrigerant flower when pressure drop is 0.14	Total length A(mm)	Body Diameter ΦC(mm)
				R-22
	ODF	SAE	R-22	24	52
SG-032		1/4	3.5(1)	44	39	10.6	106	44
SG-032-S	1/4					9.85	97
SG-033		3/8				19.8	119
SG-033-S	3/8		7.0(2)			22.2	99
SG-052		1/4	5.3(1-1/2)	71	62	10.9	121	62
SG-052-S	1/4		5.3(1-1/2)			9.85	106
SG-053		3/8	10.6(3)			21.1	132
SG-053-S	3/8		10.6(3)			27.8	109
SG-083		3/8	12.3(3-1/2)	111	98	21.5	154	67
SG-083-S	3/8					27.8	133
SG-084-S	1/2					40.1	138
SG-084-S	1/2		14.1(4)			40.1	138
SG-163		3/8		221	197	21.5	171	76
SG-163-S	3/8					27.8	149
SG-164		1/2	26.4(7-1/2)			40.4	176
SG-164-S	1/2					44.3	152
SG-165-S	5/8					61.2	160
SG-304-S	1/2		35.2(10)	418	373	54.2	229	76
SG-305-S	5/8		35.2(10)			82.6	235
SG-307-S	7/8		52.8(15)			108	248

Hangzhou Maidi Heating and Refrigerating Equipment Co.Ltd is located in Hangzhou City, who has the reputation of China Heaven.We founded in 2009, and moved into new plant on Jul 2011, land area 12, 084 square meters.
The former company name is Hangzhou Sporlan Heating and Refrigerating Equipment Co., Ltd, established on 2002, engaged in manufacturing and exporting since 2004.

Our new plant owns 5 new production lines, with advanced technology, manufacturing 3 series products:
1)Hermetical Refrigeration Compressors, annual capacity 1.5 million pieces.And our compressor range is wide, suitable for small water dispenser, same car and hotel refrigerator, then middle household refrigerator, and big restaurant, supermarket refrigerator and showcase.
2)New Fluorinate Products, including R134A, R404A, R422D...etc.The max storage 1500 ton, and output 8000 ton.
3)Refrigeration Spare Parts, annual yield 600, 000PCS.High quality and sole to American and European countries.

Our whole factory has assessed to comply with the requirements of the international standard ISO9001, ISO14001.
All product has been tested and passed CE, UL, CB, VDE, CCC and RoHS certificates.

Company Management Principleis Marketing for Guideline, Quality for Existence, Technology for Development, Management for Efficiency, Service for Credibility.
Company Business concept is Quality, Innovation, High-Efficiency, Credit

Warmestly welcome your visit.
