Product Specifications
| Prod Model: |
SSR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

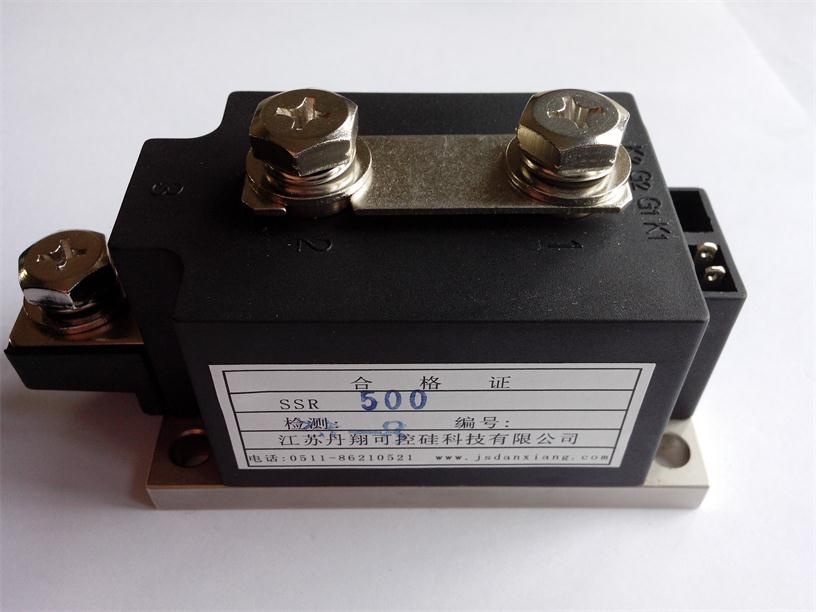

Model: SSR500
Load voltge: 40-800VAC
Max load current: 500A
Lsolation bet ln & out: ≥ 2500VAC1min
Lsolation to case: ≥ 2500VAC1min
Control voltage: 4-32VDC
Control current: 6-25mA
Tum on voltage: ≤ 1.3VAC
Off-state leakage: ≤ 3mA
Off-state dv/dt: 800V/μs
On or off time: 10ms
Frequenty range: 47/63HZ
Status indicator: LED
Operating temperature: -40-80
Jiangsu danxiang SCR Technology Co., Ltd. Was founded in 1979, is engaged in a silicon controlled power semiconductor devices (also called thyristor) research, design, development, manufacturing and sales as one of the Professional Company, China Electrical Equipment Industrial Association of power sub branch of the governing unit, in 2004 the national second home Jiangsu only access to national production license enterprises. The company has passed ISO9001-2000 quality system certification, quality trustworthy enterprise in Jiangsu province. Company has strong technical strength, sophisticated production equipment, advanced manufacturing technology, perfect testing equipment. "Dan Xiang" staff always adhere to the "technology-based, quality first, customer first, sincere service, the pursuit of excellence" for the purpose, the company"s products won the majority of the praise and trust of users at home and abroad!
The main products of the company are KP common type ZP silicon controlled rectifier tube, ordinary (SCR), KS type bidirectional controllable silicon, the KK type quick thyristor; MTG, MDG, MTS, MDS, MTY, MDY, MTC, MFC type silicon controlled rectifier module, a variety of assemblies and for three-phase electric welding machine design full control, three-phase half controlled rectifier and three-phase, six phase half wave, yin and Yang, single-phase rectifier, single-phase controllable, Lincoln of the United States, the United States Miller type; Heating power supply, complete speed control power supply, power rectifier, intermediate frequency power supply with our own brand RF, RH, RM advanced heat pipe radiator. Making the product more reliable stability.
The company is located in Jiangsu province Danyang city culture science and Technology Industrial Park, close to Shanghai Nanjing, Shanghai High-speed Rail, Shanghai Nanjing high-speed station exit, traffic is convenient, welcome old and new friends at home and abroad to visit the guide, sincere cooperation, harmonious development, create brilliant.
