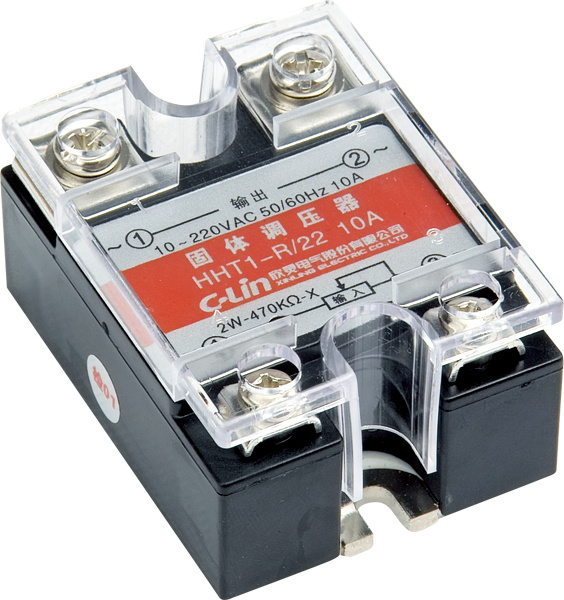

Solid State Relay (SSR 10-40A VA HHT1-R/22 10-40A; HHT1-R/38 10-40A)

Name: Solid State Relay (SSR 10-40A VA HHT1-R/22 10-40A; HHT1-R/38 10-40A)
Brand: china-manufacturer-directory.com
SKU: 695443195
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	HHT1-R/22 10-40A; HHT1-R/38 10-40A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Load Voltage:	220VAC, 380VAC
Regulate Range:	10-250VAC, 10-440VAC
Load Current:	10, 15, 20, 25, 30, 40A
Ambient Temp.:	-30centigrade~+80centigrade
Outline Dimension:	57.243.529mm
Theory:	Solid State Relay
Usage:	Communication Relay
Phase:	1
Size:	57.243.529mm
Load:	10-40A

Product Description

Product Description

solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.

Specification

Product Model		HHT1-R/22, 38 10-40A(SSR-VA)
Description		Single-phase Solid Voltage Regulator
Control mode		2W470-560KΩ potentiometer
Load Voltage		22: 220VAC	38: 10-440VAC
Voltage-regulation Scope		22: 10-250VAC	38: 10-441VAC
Isolation Voltage		Not isolated
Off-state Leakage Current		less than or equal to 10mA
Output Current		10A, 15A, 20A, 25A, 30A, 40A
Transient Voltage		22: 600VAC, 38: 900VAC
On-state Voltage Drop		less than 3VAC
Dielectrics Voltage-resistance		equal to or greater than 2500VAC
Insulation Resistance		500MΩ 500VDC testing
Ambient temperature		minus 30 centigrade to 80 centigrade
Dimensions		57.2L43.5W29H
Indicated Methods		LED
Installation		Screw fixing
Packing	Inner Box(PCS)	1PCS/small box, 10pcs/paper box
	Outer CTN(PCS)	100
	CTN Size	380215175mm
	Weight	10A: less than or equal to 110g/PCS G. W: 12kg N. W: 11kg
		40A: less than or equal to 145g/PCS G. W: 15.5kg N. W: 14.5kg
		80A: less than or equal to 150g/PCS G. W: 16g N. W: 16kg
Radiator		HH060, HH061, HH062, HH063
Remarks		1. When the load current is greater than 10A, a radiator is necessary; When the load current is greater than 80A, fan is necessary.

		2. When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
