Solid State Relay (SSR. PCB Relay) Welding On PCB

Solid State Relay (SSR. PCB Relay) Welding On PCB
Supplier: Aiks Electric Co., Ltd.
Price: Negotiable
Min Order: 1
Quantity::
contact supplier

Product Specifications

Prod Model: ASRP1-202D

Product Description

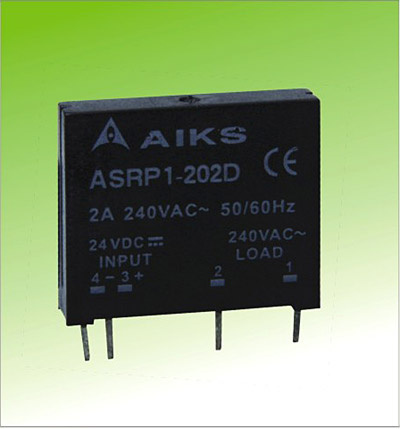

Solid State Relay (ssr. PCB relay) welding on PCB ASRP1-202D

Input voltage: 5VDC / 12VDC / 24VDC
Load volage: 240VAC
Load current: 1A / 2A
Outline size: 24*5*20(mm)

Model number


ASRP1


Rated operational voltage


24-240Vac


Rated operational current


2A


Rated operational frequency


45-65Hz


Rated input control voltage


5, 12 or 24Vdc


Pick-up voltage


---


Drop-out voltage


---


Input current


7-12mA


Pick-up and Drop-out time


10 ms max


Input-ON indication


---


Control type


---


Off-state leakage current


1mA max


On-state Voltage drop at Imax


1.3Vac max


Dielectric Strength for 1min


2500Vac


External dimensions (mm)


24x5x20


Terminals


Welding


External dimensions


24x5x20 mm


Operational temperature (°C)


-30 to 80


Humidity max (no condensation)


95%

AIKS Electrical & Electronics from HongKong. Since company founded for more than ten years, we engaged in designing, developing, producing and time relay, etc. Besides, we also manufacture digital ammeter and voltmeter, counter, liquid-level controller, photoelectric switch, and relay socket, rocker switches, push switches, temperature controller and so on. We adopt advanced production quality control system, and passed TUV ISO9001 quality control system certificate early. Because of our excellent quality, we have obtained CQC certificate, CE certificate, CCC certificate etc. At present, we are applying the UL, cUL certificates. We have advanced production facility and COTS; We now own a building of 12000 m2 for high-new technological production, Besides, we have a team of technical personnel and managers who have received strict train.
